Industry Applications

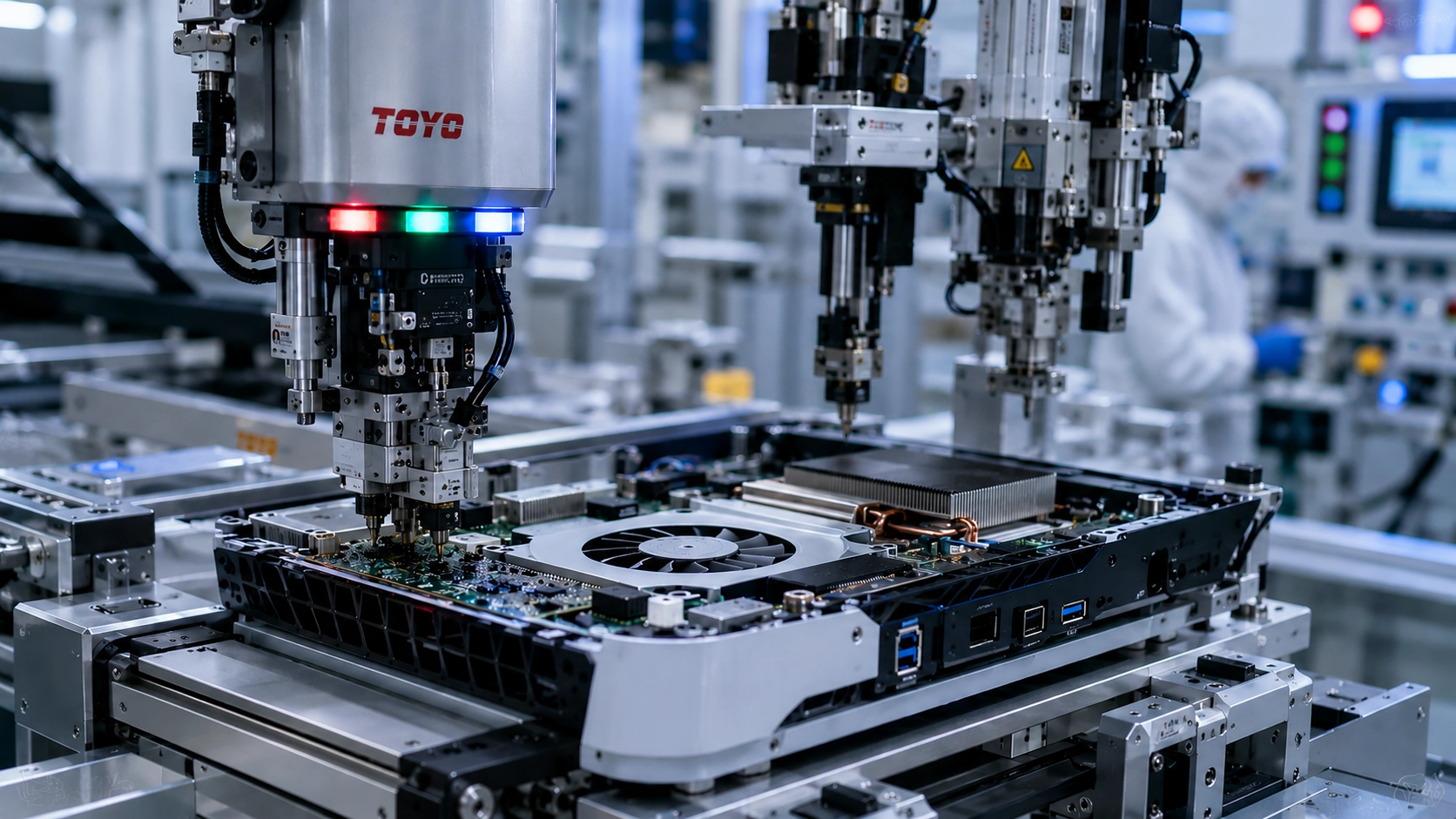

Automated Assembly
High-precision joining and fastening require multi-axis coordination and consistent force control to ensure product quality.
Integrated multi-axis gantry systems and electric cylinders provide the precision and repeatability for complex mechanical assembly.
- Consistent Force Control: Programmable thrust ensures delicate parts are joined without damage.
- Multi-Axis Coordination: Seamless X-Y-Z synchronization for complex insertion and fastening paths.
- Sub-Millimeter Repeatability: ±0.005mm accuracy for high-density electronic and mechanical builds.
Part Pick and Place
Rapidly transferring components between production stages requires high-acceleration motion and reliable integration with various end-effectors.
High-speed linear actuators and compact gantry systems minimize cycle times and maximize overall factory throughput.
- High Acceleration: Up to 2G acceleration for rapid cycle times in high-volume production.
- Flexible Mounting: Motor-ready designs allow for easy integration of vacuum or mechanical grippers.
- Industrial Durability: Sealed architectures prevent contamination and ensure long-term reliability.

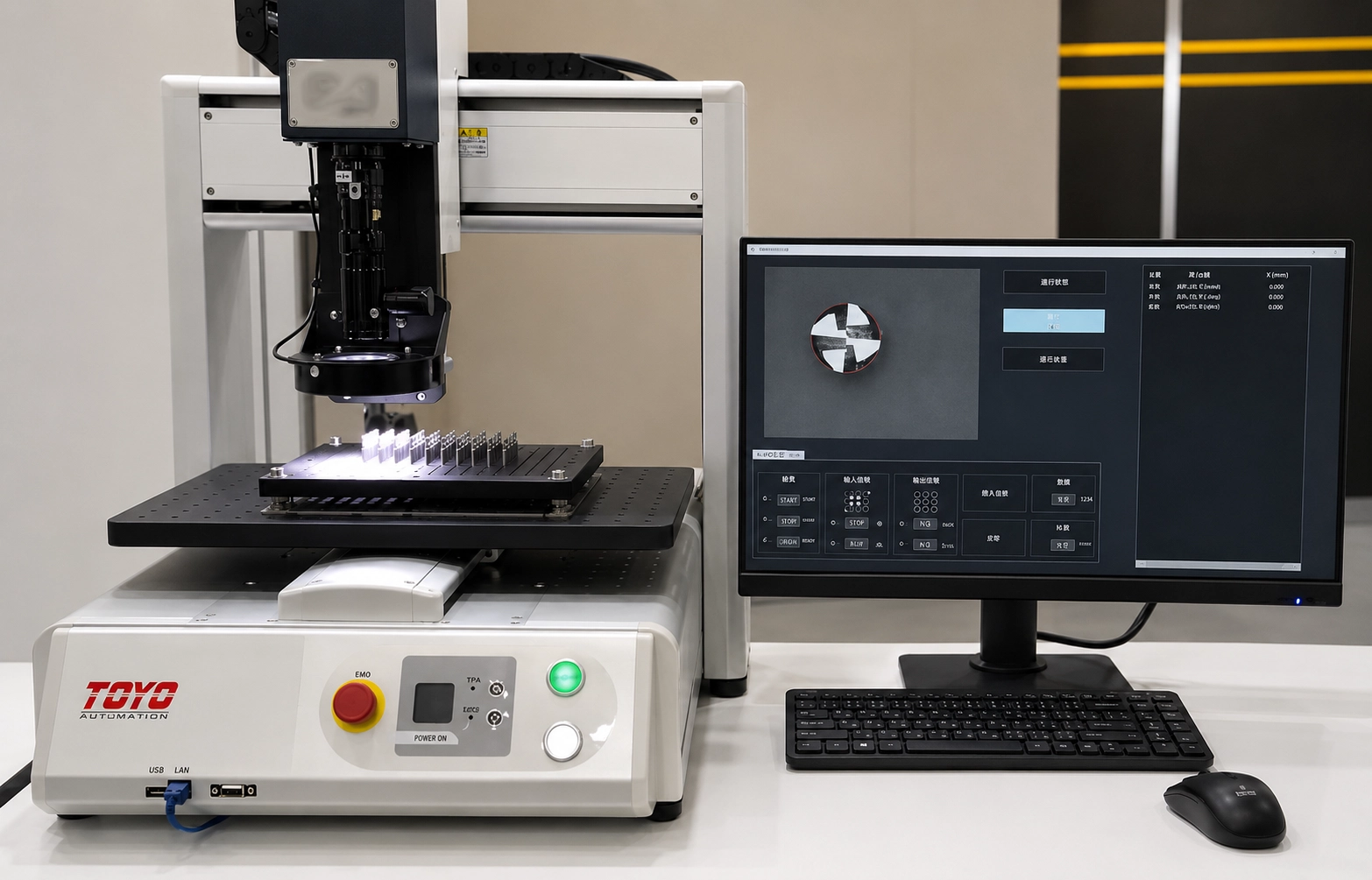

Component Inspection
Automated inspection requires vibration-free motion and precise positioning to capture high-resolution images or take exact measurements.
Ultra-precision linear motors and high-resolution encoders provide the stable, jitter-free platform required for advanced quality control.
- Zero Backlash: Direct-drive linear motors eliminate mechanical play for absolute measurement accuracy.
- Smooth Motion: Low-friction guides ensure vibration-free travel during high-speed optical scanning.
- High Resolution: Integration with sub-micron encoders for precise feature detection and defect analysis.

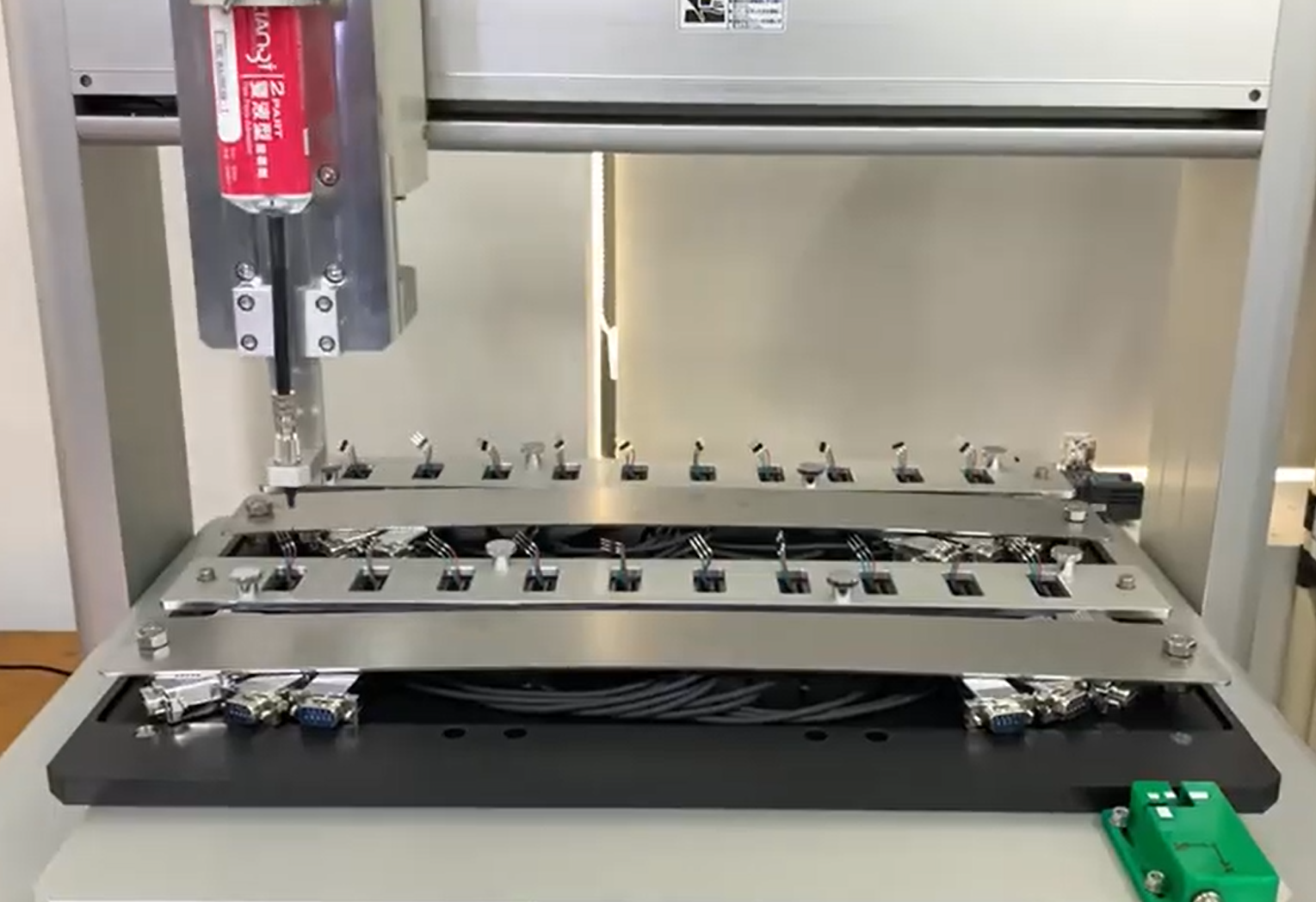

Dosing & Filling
Precise fluid dispensing or volumetric filling requires exact stroke control and high-speed reciprocating motion to maintain line speed.
AC Servo-driven electric cylinders provide programmable stroke and speed, replacing legacy pneumatic systems for improved consistency.
- Programmable Volumetrics: Digitally adjust stroke length to change dosing volumes in seconds without mechanical resets.
- Constant Velocity: Maintain precise speed during the fill cycle to prevent splashing or inconsistent aeration.
- Rapid Changeovers: Store multiple production profiles in the controller for near-instant line retooling.
Tray Handling
Managing heavy trays or large pallets across multiple production levels requires robust, long-stroke systems with high payload capacity.
Heavy-duty gantry systems and multi-axis sliders provide the necessary reach and rigidity for industrial-scale tray management.
- Extended Travel: Stroke lengths up to 5000mm allow for large-scale transfer across multiple production cells.
- High Payload Support: Robust mechanical structures handle trays and pallets up to 110kg with minimal deflection.
- Multi-Level Verticality: Integrate Z-axis actuators for tiered storage and vertical production flow.
