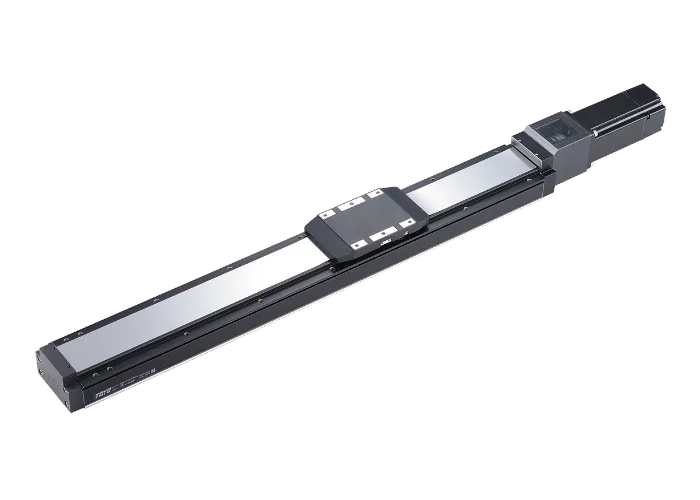

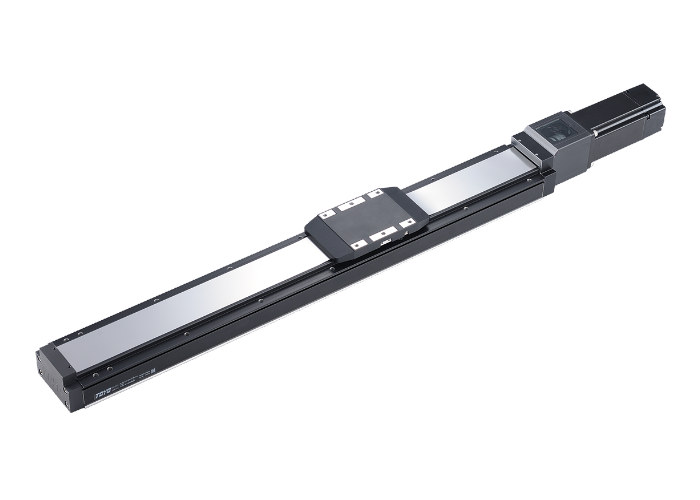

GLTH Series Main

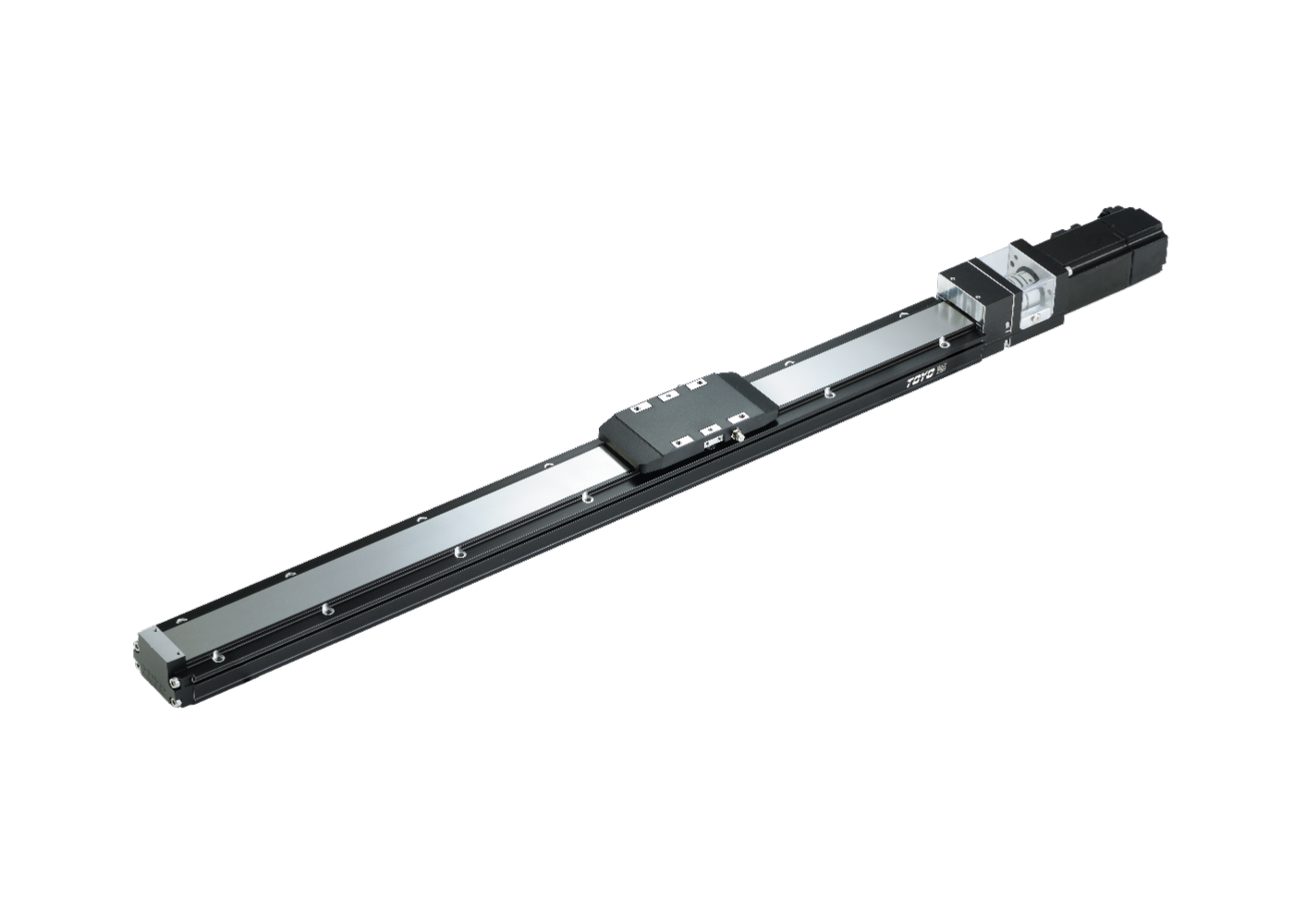

GLTH5 Standard Actuator

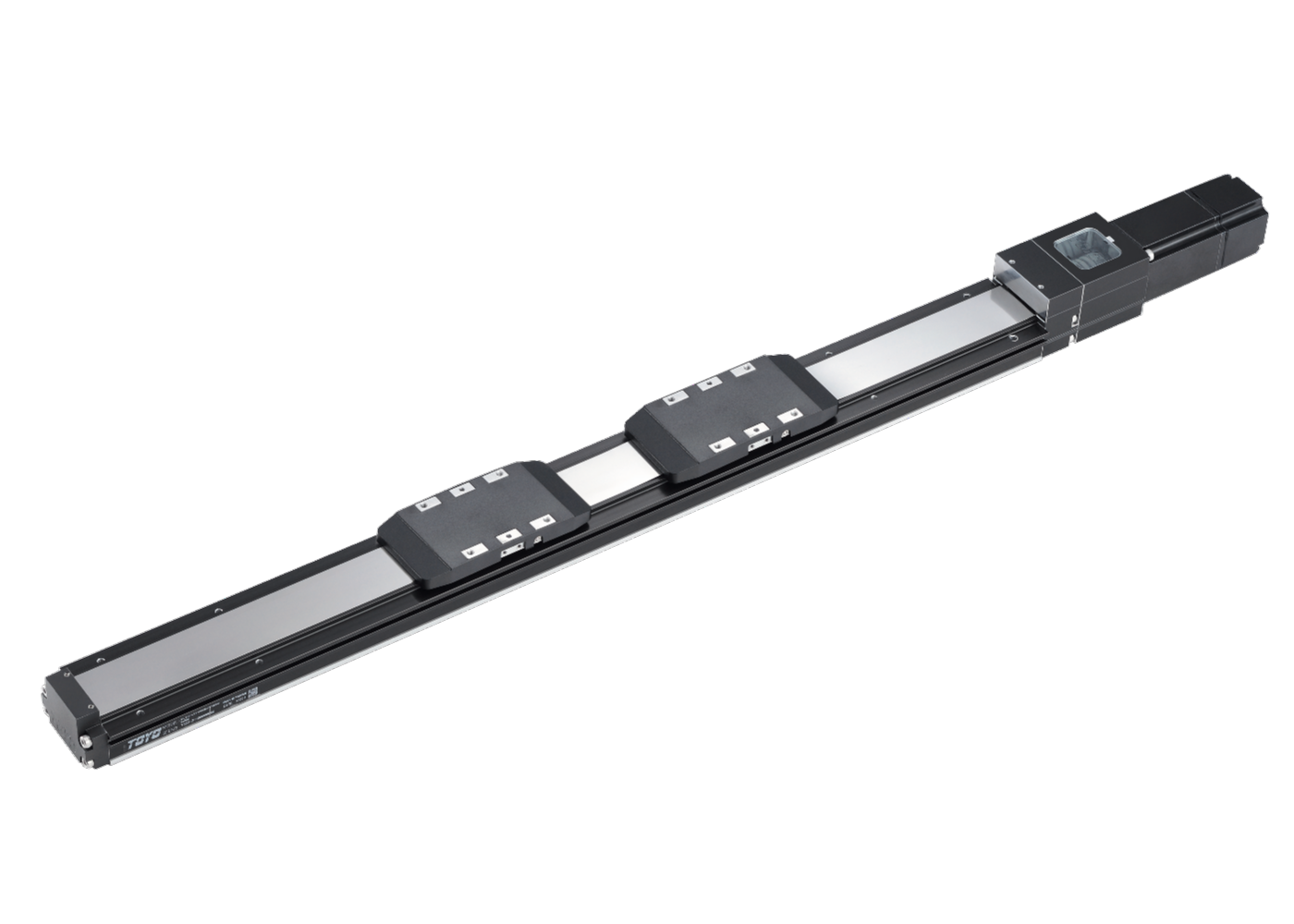

GLTH5 Double Carriage Actuator

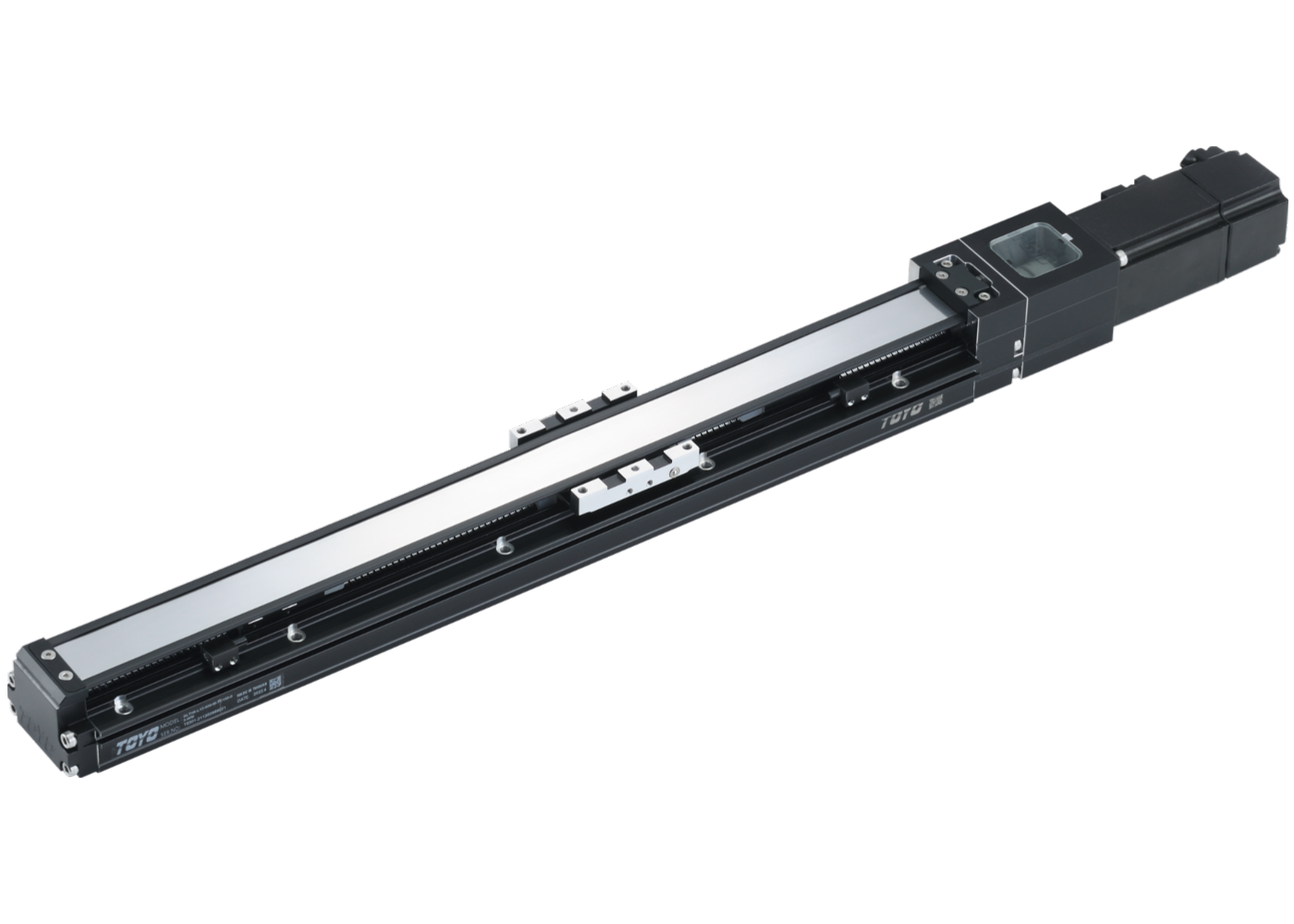

GLTH5 Extended Length Actuator

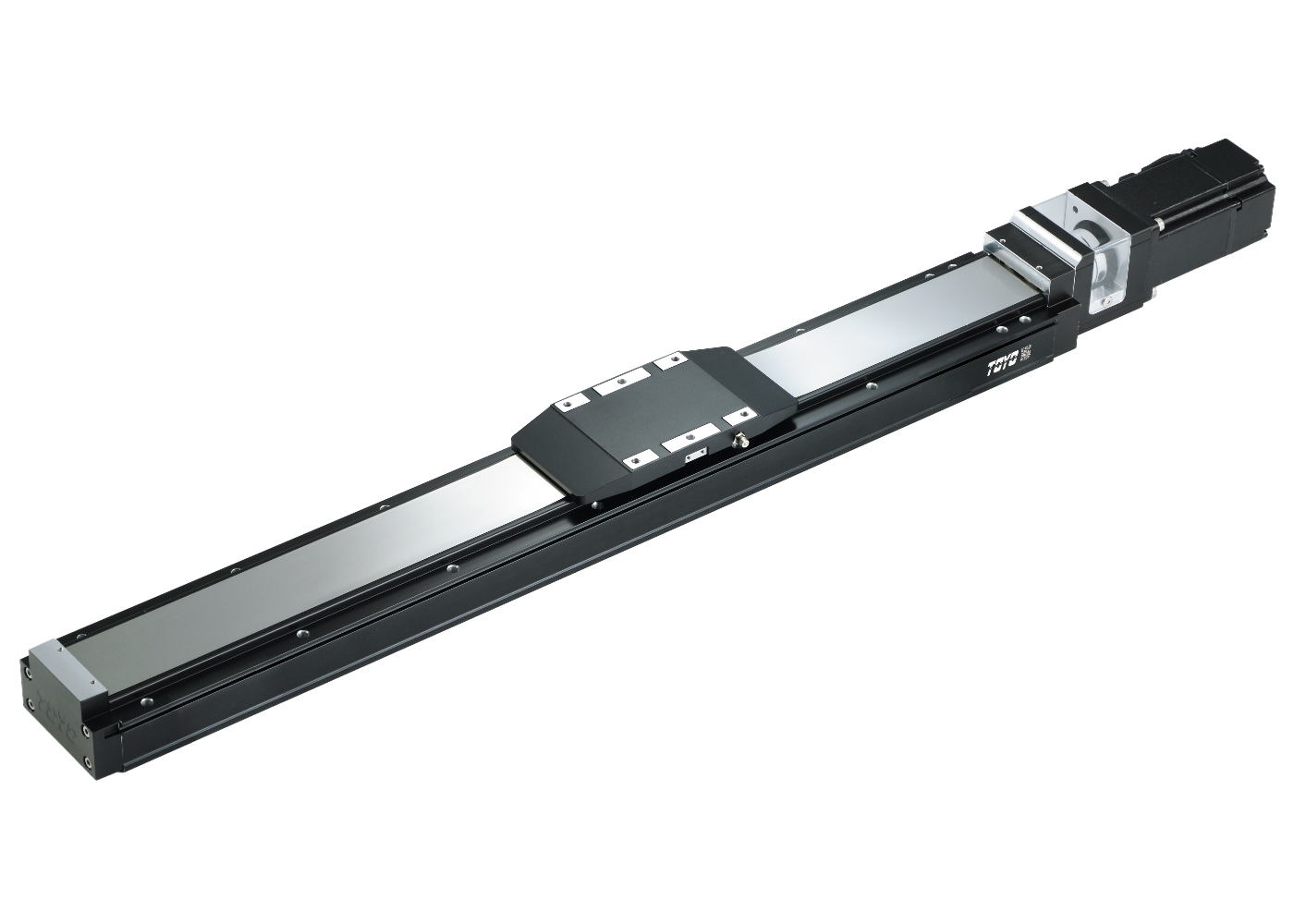

GLTH8 Standard Actuator

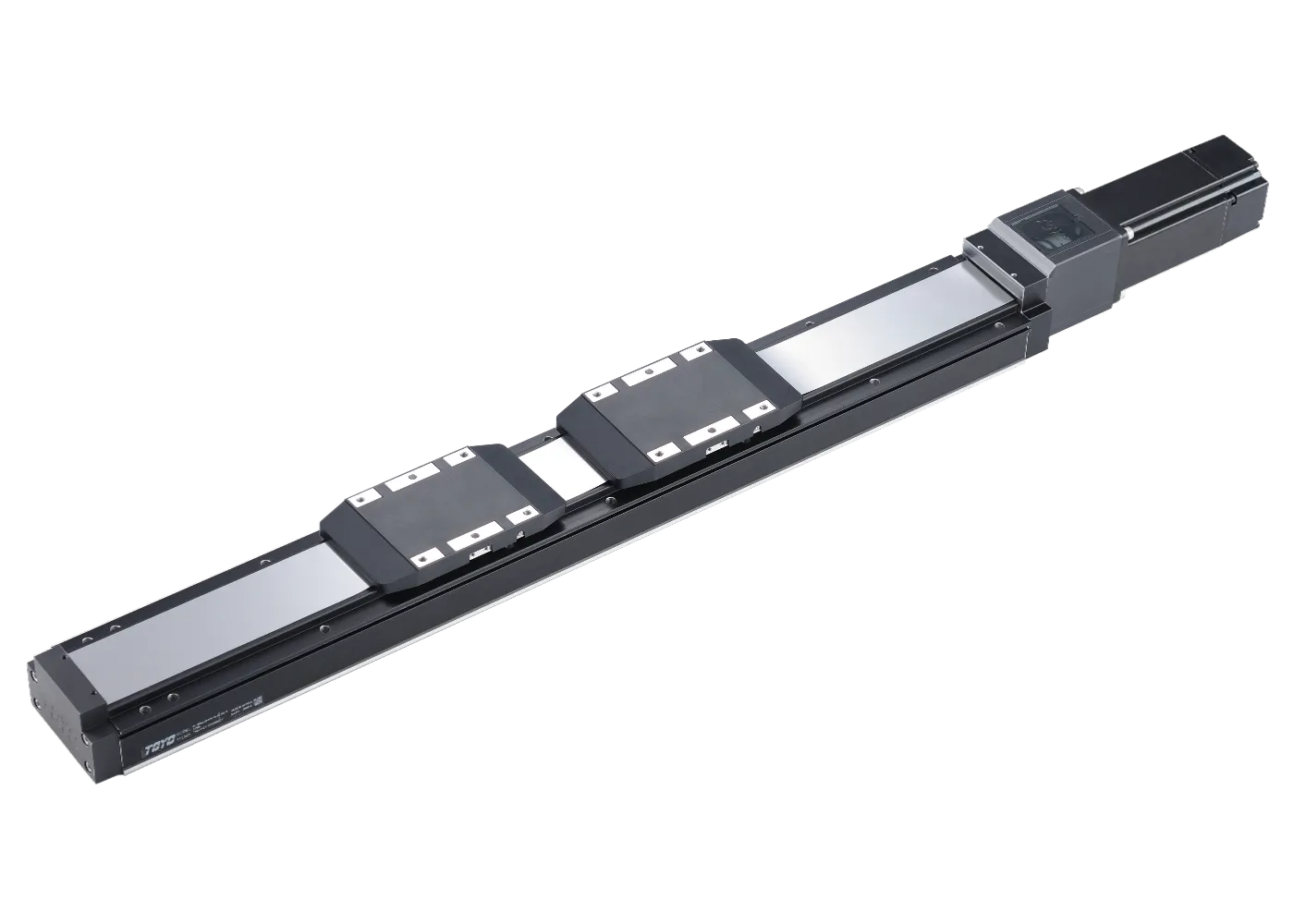

GLTH8 Double Carriage Actuator

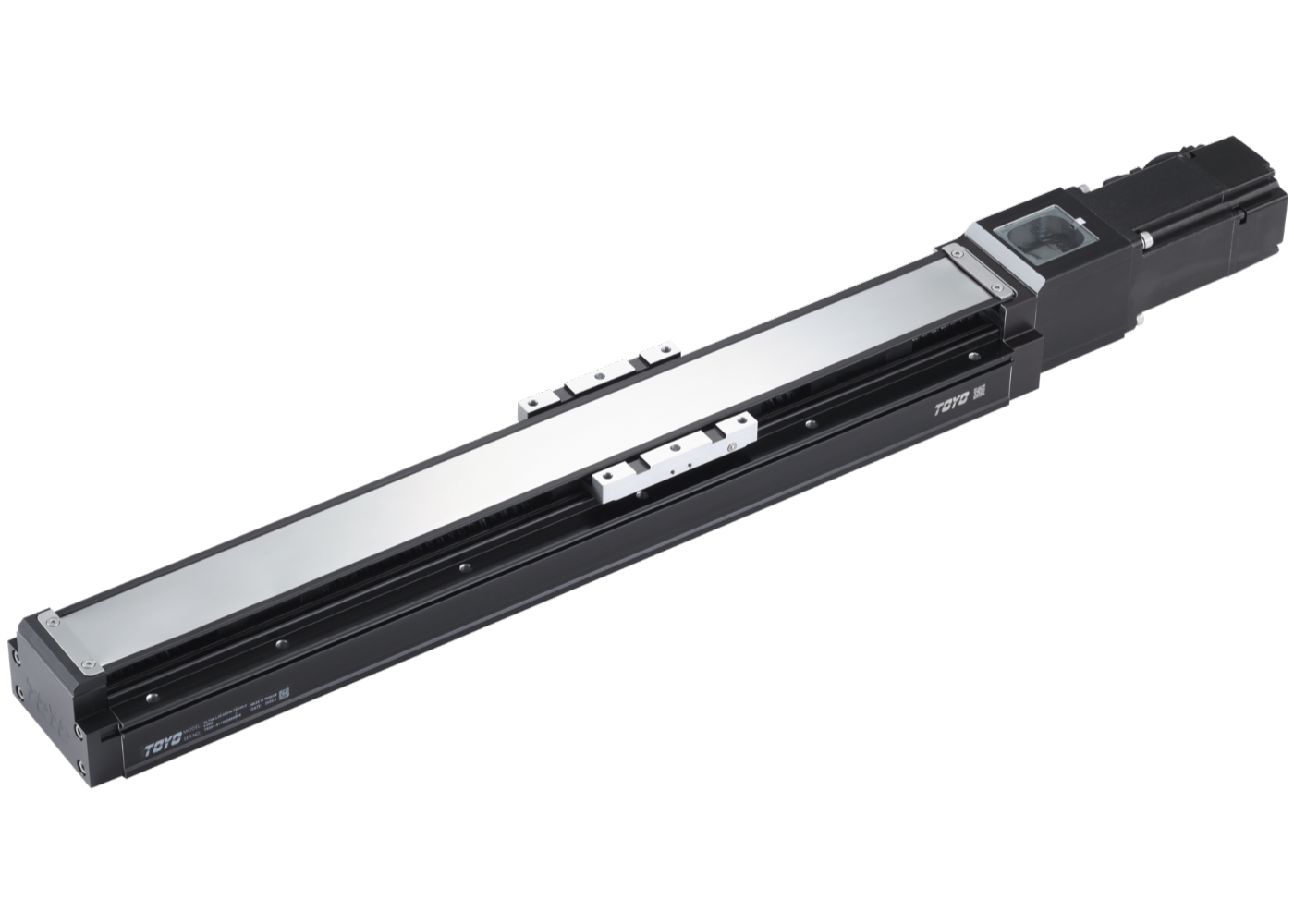

GLTH8M Extended Stroke Actuator with Ball Screw Supports
GLTH Series
GLTH Series Standard Actuator

GLTH Series

Low Profile Linear Actuator with Built-in Linear Bearings

Low Profile Linear Actuator with Built-in Linear Bearings Download native CAD models and request a technical quote for the GLTH Series series today.

Get Pricing CAD Models

GLTH Series: Low-Profile Industrial Actuators

Space-Saving Precision for Height-Restricted Automation

The TOYO GLTH Series is the specialized low-profile alternative to the standard GTH workhorse, engineered for machine builders who require high performance within tight vertical footprints. This series offers a compact, lightweight construction without compromising on rigidity or precision. By optimizing the base-to-carriage height, the GLTH enables more efficient multi-axis stacking and seamless integration into space-limited industrial environments.

Advanced Configuration Options

To meet specialized engineering requirements, the GLTH series is available in high-utility carriage variants:

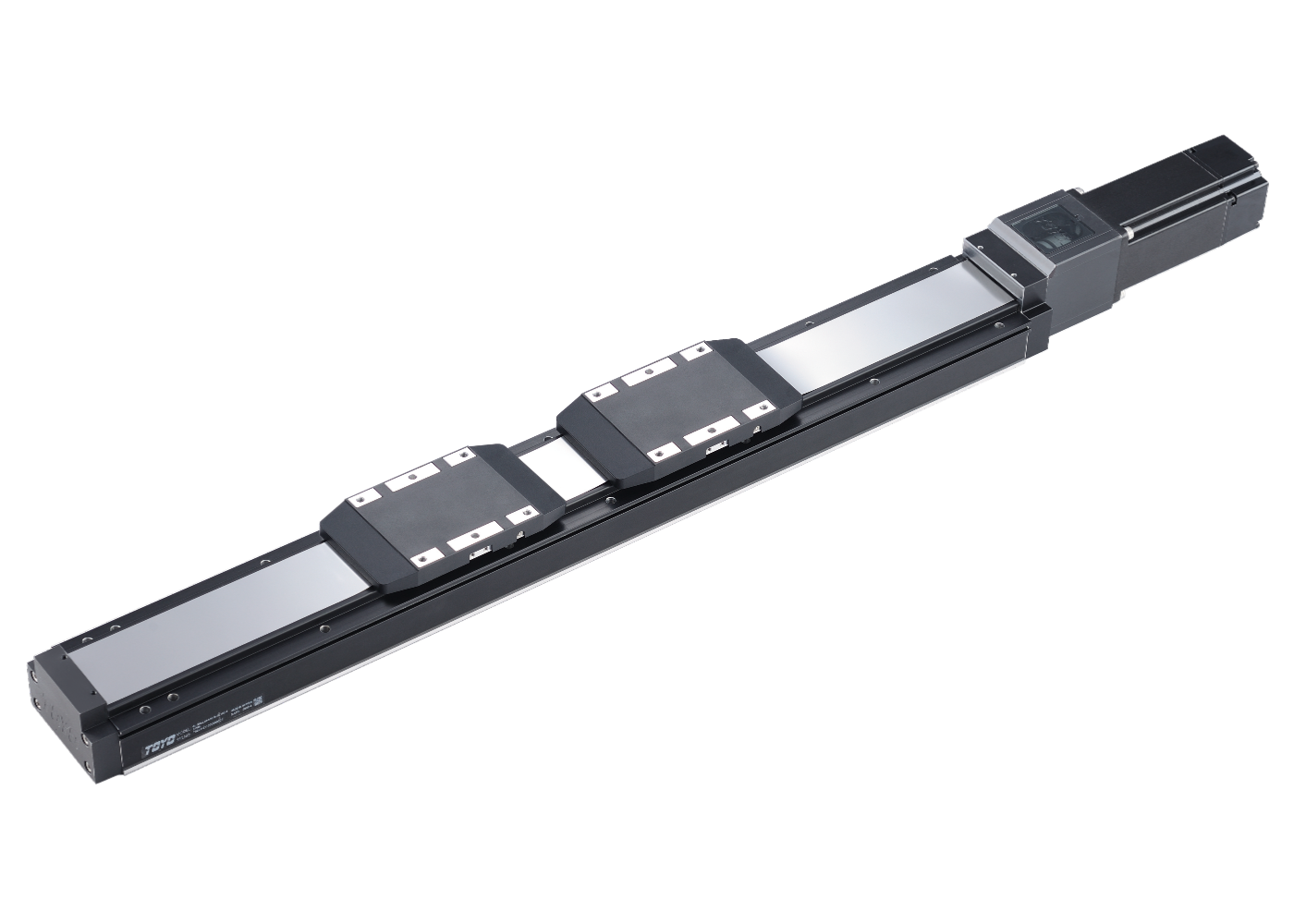

  • "D" Variant (Dual Carriage High-Payload): Employs two carriages moving in tandem to provide significantly increased moment-load resistance and horizontal stability. This configuration is ideal for low-clearance pick-and-place systems requiring maximum rigidity.

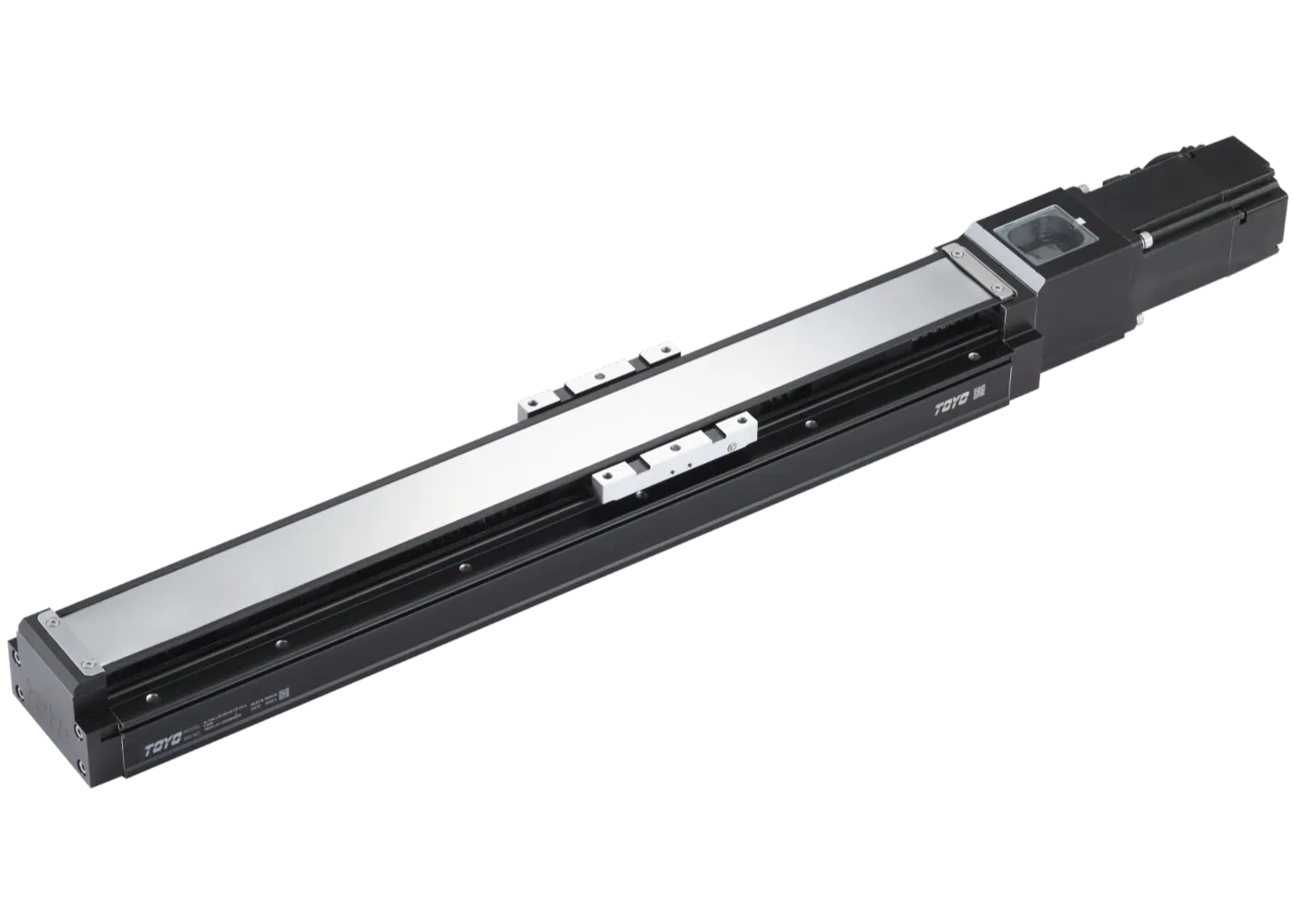

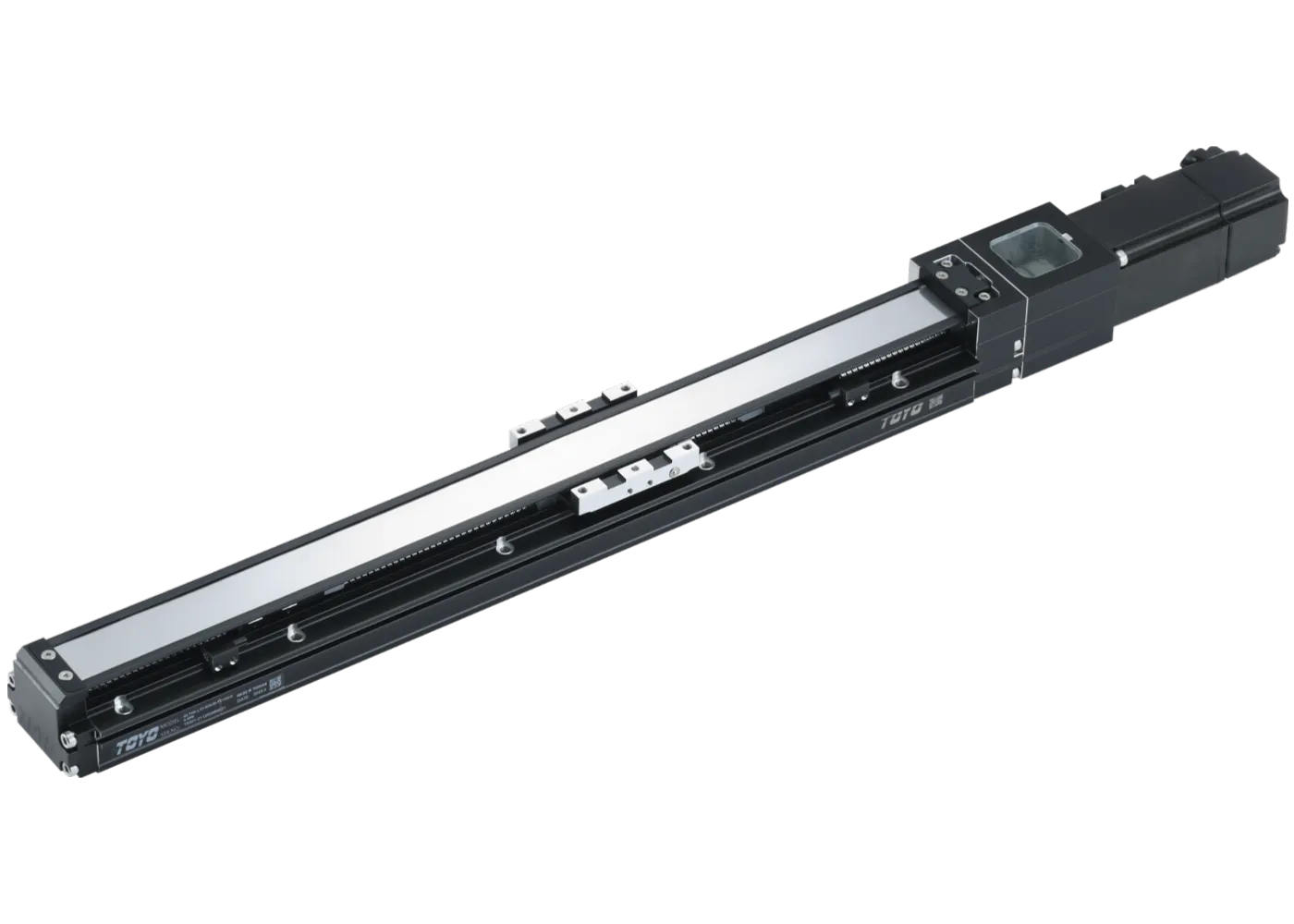

  • "M" Variant (Extended Length Ball Screw Support): Features a specialized design optimized for using ball screws at longer travels with moving screw supports. These supports increase the critical speed values and allow for faster moves.

Core Performance Highlights

  • Compact Space-Saving Design: Boasts a streamlined, low-profile chassis that maximizes overhead clearance, making it the premier choice for tabletop automation and compact gantry systems.
  • High-Speed Material Transfer: Capable of reaching linear speeds up to 1440 mm/s, ensuring rapid cycle times and high throughput in modern manufacturing lines.
  • Precision Repeatability: Delivers consistent performance with a repeatability of +/- 0.005 mm, ideal for electronics assembly and precise medical device manufacturing.
  • Versatile Frame Sizes: Available in multiple sizes—from the ultra-compact GLTH3 to the high-capacity GLTH12—to provide the perfect balance of power and footprint.

Target Industrial Applications

The GLTH series is the strategic choice for industries where space efficiency and reliable linear motion are the primary drivers:

  • Electronics & Circuit Board Assembly: Ideal for surface cleaning devices, piling mechanisms, and high-accuracy component placement.
  • Precision Coating & Dispensing: Enables low-cost, high-efficiency rubberizing and coating operations within compact assembly lines.
  • Glass & Substrate Processing: Provides stable, low-profile motion for synchronous cutting mechanisms and material handling.

Technical Excellence & Benefits

Precision Ball Screw Leads

Flexible lead options (2mm to 24mm) allow for optimized motor pairing based on specific speed and thrust requirements.

Enhanced Load Ratings

High-capacity linear guides ensure stable motion for horizontal payloads up to 110 kg.

Seamless Motor Integration

Designed for easy pairing with AC Servo or Stepper motors, reducing engineering overhead and commissioning time.

Industrial-Grade Reliability

Features a robust construction designed for high-duty cycles with minimal maintenance requirements in demanding environments.

Engineering Gallery
Product Detail

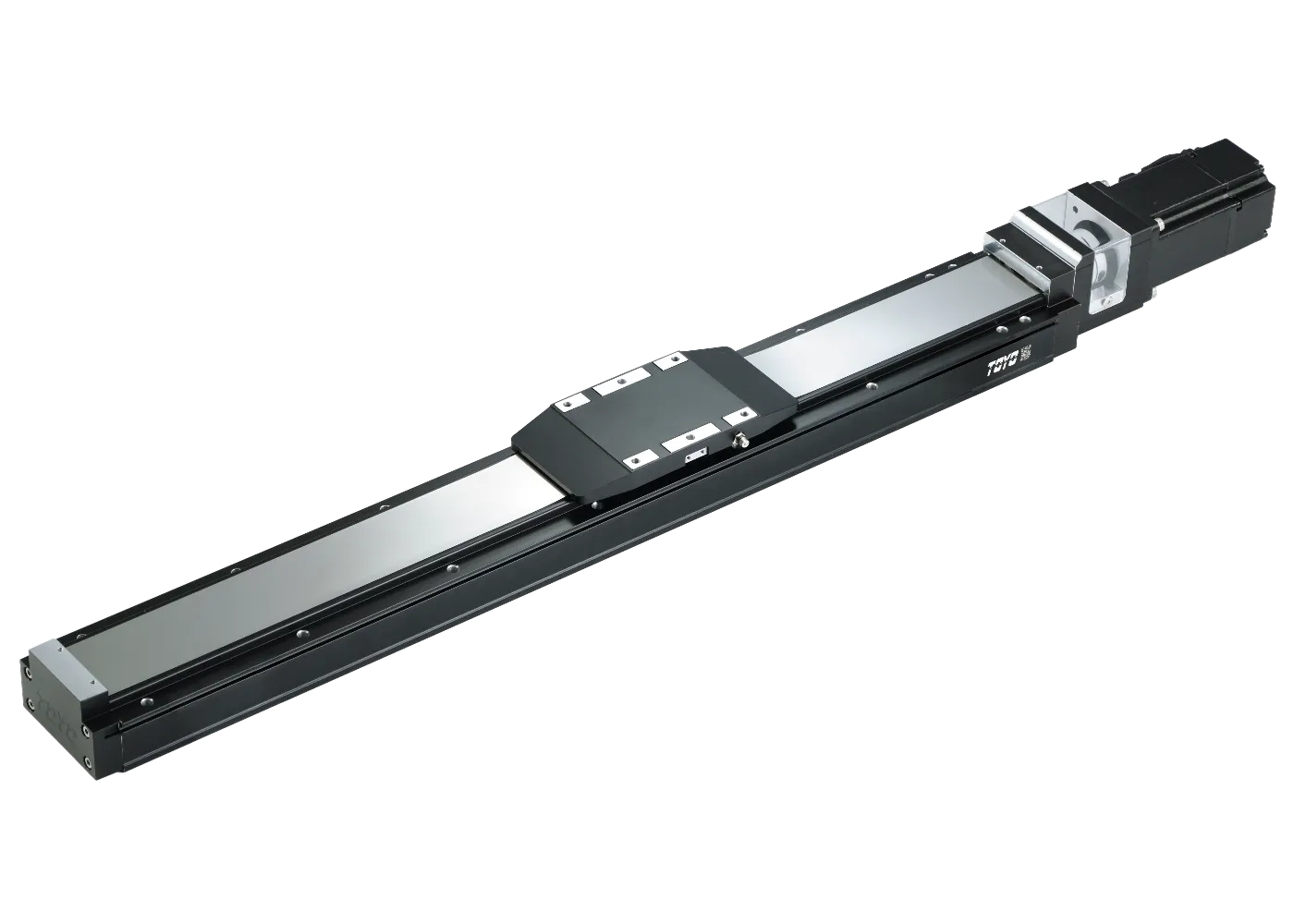

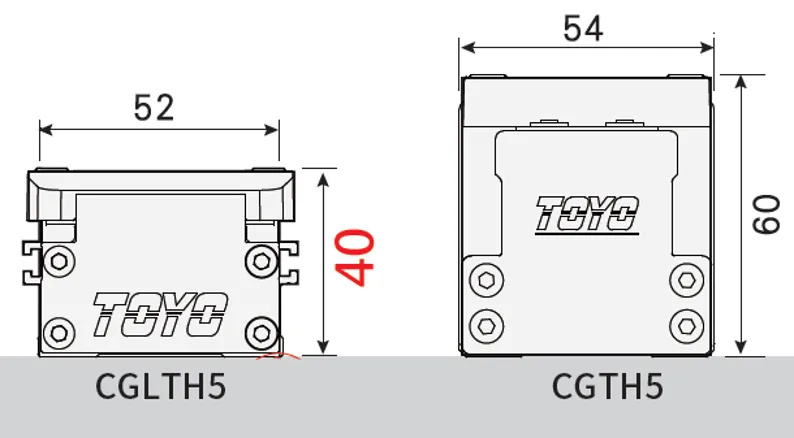

The GLTH Series features a significantly lower profile compared to standard GTH actuators, ideal for vertical clearance constraints.
Product Detail

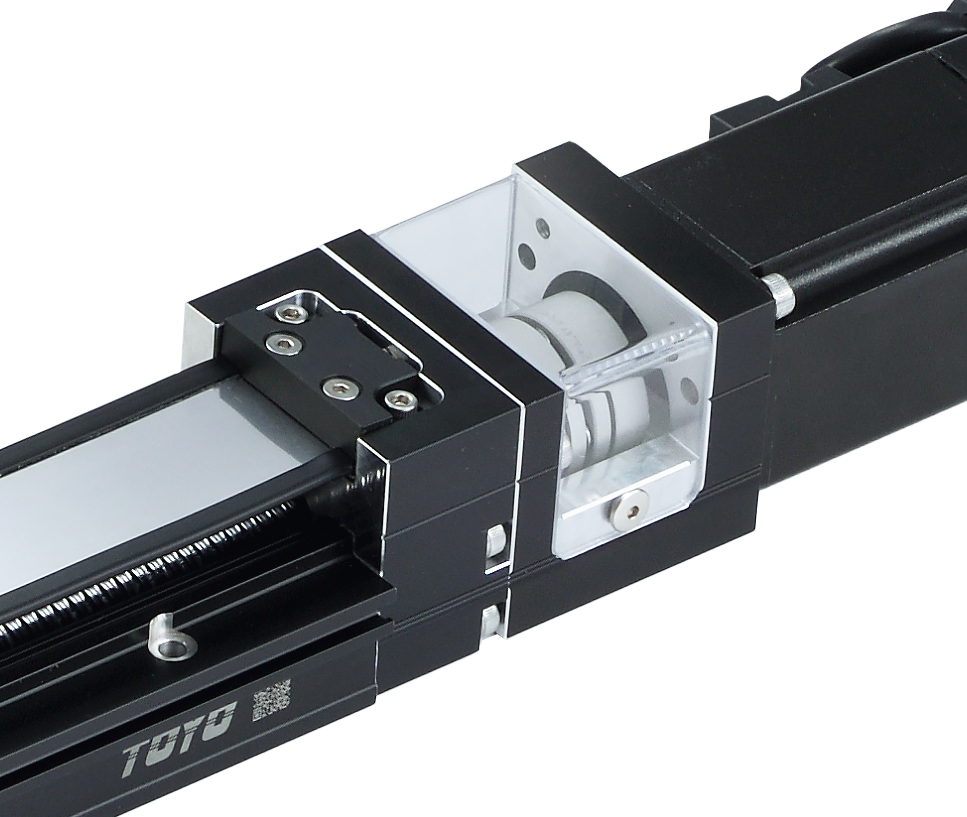

Translucent motor coupling housing provides visual indicator for correct functionality.

Explore Alternate Solutions

Compare the GLTH Series with similar high-performance series in our portfolio.

GTH Series
GTH Series

Elite Repeatability Ball Screw Actuator

Sizes
GTH3 GTH4 GTH4D GTH5 GTH5S GTH5D GTH8 GTH8S GTH8D GTH12 GTH12D
Explore Series
GLCH Series
GLCH Series

Built-in Linear Motion Guide (Clean Room)

Sizes
GLCH5 GLCH5D GLCH8 GLCH8D GLCH12
Explore Series
GCH Series
GCH Series

Clean Room Built-in Linear Motion Guide

Sizes
GCH4 GCH5 GCH5S GCH8 GCH8S GCH12
Explore Series
GLTH/GLTB Product Highlights

Mechanical Specifications

Specification GLTH3 GLTH5 (D) GLTH8 (D) GLTH12
Product Size (W x H mm) 30 x 30 53 x 46 80 x 63 120 x 76
Repeatability (µm) ±5 ±5 ±5 ±5
Maximum Payload (kg)(1) coming soon coming soon coming soon coming soon
Maximum Thrust (N)(1) coming soon coming soon coming soon coming soon
Maximum Travel (mm) 500 1000
850(D)		 1250
1050(D)		 1250
Maximum Speed (mm/s) 480 1200 1440 1440
Maximum Acceleration (G) 1 1 1 1
Operating Temperature (°C)(2) 0 - 40 0 - 40 0 - 40 0 - 40

1 Maximum payload and thrust are specified based on an L10 life rating. For the load specified, the life is expected to be 1000km. To calculate life for your application specifically, please contact us.

2 For extreme temperatures outside of this range, special greases are required.

Actuator Stroke / Travel Specifications

Specification 50
(mm)		 100
(mm)		 150
(mm)		 200
(mm)		 250
(mm)		 300
(mm)		 350
(mm)		 400
(mm)		 450
(mm)		 500
(mm)		 550
(mm)		 600
(mm)		 650
(mm)		 700
(mm)		 750
(mm)		 800
(mm)		 850
(mm)		 900
(mm)		 950
(mm)		 1000
(mm)		 1050
(mm)		 1100
(mm)		 1150
(mm)		 1200
(mm)		 1250
(mm)
GLTH3 Weight (kg) 0.29 0.34 0.4 0.44 0.49 0.55 0.61 0.67 0.73 0.79 Not Available
GLTH3-L2 Critical Speed (mm/s) 120 107 90 80 70 60 50 40 Not Available
GLTH3-L8 Critical Speed (mm/s) 480 427 360 320 280 240 200 160 Not Available
GLTH5 Weight (kg) 1.06 1.19 1.32 1.44 1.57 1.69 1.82 1.95 2.07 2.2 2.33 2.45 2.58 2.71 2.83 2.96 3.08 3.21 3.34 3.46 Not Available
GLTH5D Weight (kg) 1.57 1.7 1.82 1.95 2.08 2.2 2.33 2.46 2.58 2.71 2.84 2.96 3.09 3.21 3.34 3.47 3.59 Not Available
GLTH5-L2 Critical Speed (mm/s) 120 110 90 80 70 63 53 50 43 40 37 Not Available
GLTH5-L6 Critical Speed (mm/s) 360 330 270 240 210 190 160 150 130 120 110 Not Available
GLTH5-L12 Critical Speed (mm/s) 720 660 540 480 420 380 320 300 260 240 220 Not Available
GLTH5-L20 Critical Speed (mm/s) 1200 1100 900 800 700 630 533 500 430 400 367 Not Available
GLTH8 Weight (kg) 2.31 2.61 2.9 3.2 3.49 3.79 4.09 4.38 4.68 4.97 5.27 5.57 5.87 6.16 6.46 6.75 7.05 7.35 7.64 7.94 8.24 8.53 8.83 9.13 9.42
GLTH8D Weight (kg) 3.89 4.19 4.49 4.78 5.08 5.37 5.67 5.97 6.27 6.56 6.86 7.15 7.45 7.75 8.04 8.34 8.64 8.93 9.23 9.53 9.82 Not Available
GLTH8-L6 Critical Speed (mm/s) 360 350 310 270 240 210 190 170 160 140 130 120 110 100 90
GLTH8-L12 Critical Speed (mm/s) 720 700 620 540 480 420 380 340 320 280 260 240 220 200 180
GLTH8-L24 Critical Speed (mm/s) 1440 1400 1240 1080 960 840 760 680 640 560 520 480 440 400 360
GLTH12 Weight (kg) 5.05 5.4 5.75 6.1 6.45 6.8 7.15 7.5 7.85 8.2 8.55 8.9 9.25 9.6 9.95 10.3 10.65 11 11.35 11.7 12.05 12.4 12.75 13.1 13.45
GLTH12-L6 Critical Speed (mm/s) 360 350 310 270 240 210 190 170 160 140 130 120 110 100
GLTH12-L12 Critical Speed (mm/s) 720 700 620 540 480 420 380 340 320 280 260 240 220 200
GLTH12-L24 Critical Speed (mm/s) 1440 1400 1240 1080 960 840 760 680 640 560 520 480 440 400
Swipe horizontally to view full specifications.
GLTH Series Technical Catalog

PDF Download - Includes dimensional drawings and selection guides.

Download Catalog
CAD Design

Native CAD Models & 3D Configurations

Access the TOYO CAD Portal →

Seamless Integration into Your Design Environment

To ensure the highest level of design accuracy and reduce your engineering lead times, TOYO Robotics Americas provides a comprehensive library of native CAD models. Hosted through our CAD Community Portal, these models are not generic placeholders; they are highly detailed, configurable files designed to drop directly into your assembly.

  • Native Format Support: Download models in your preferred native format, including SolidWorks, Autodesk Inventor, Pro/E (Creo), Siemens NX, and CATIA, as well as universal formats like STEP, IGES, and Parasolid.
  • Dynamic Configuration: Adjust stroke lengths and motor orientations in real-time to generate a model that matches your exact specification.
  • Instant Access: Register once to unlock unlimited downloads, ensuring you have the most up-to-date technical data for your project milestones.
Autodesk
Pro/E
CATIA

Ordering Information

Select a size to view the specific ordering code configuration:

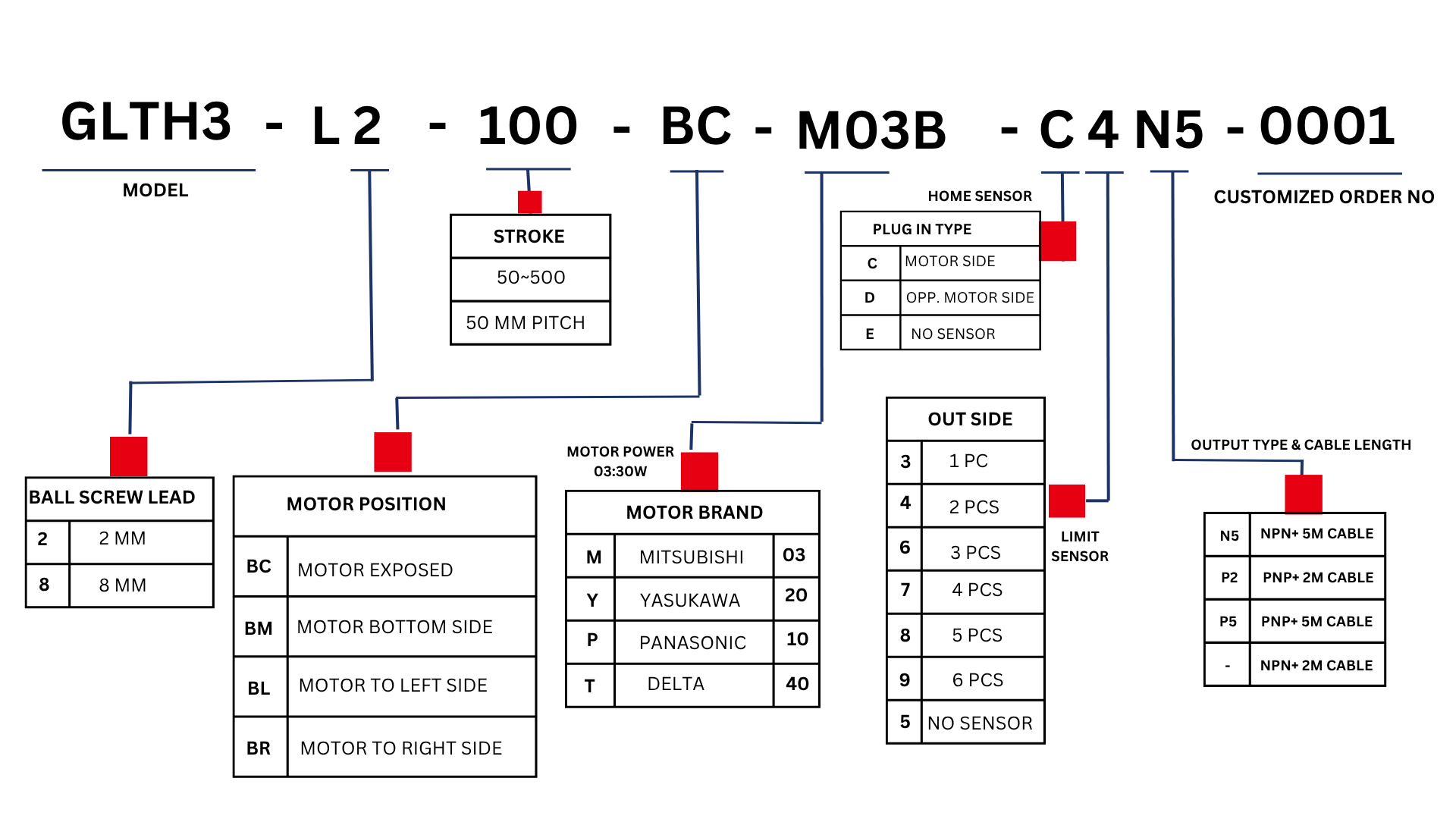

Ordering Code

Contact our application engineers to generate your exact part number or for complex multi-axis configurations.

Request Configuration Support
