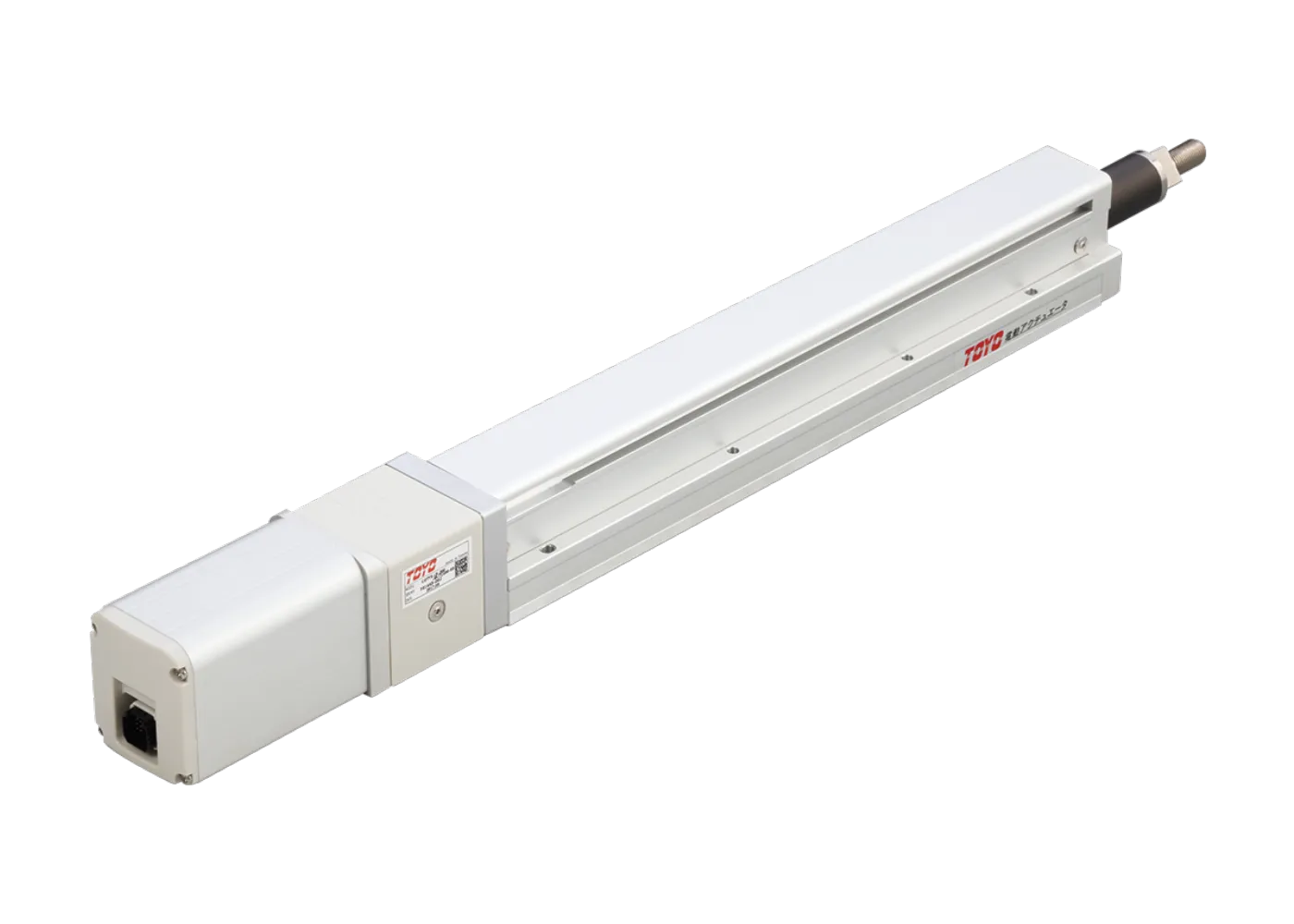

CGTY Series Main

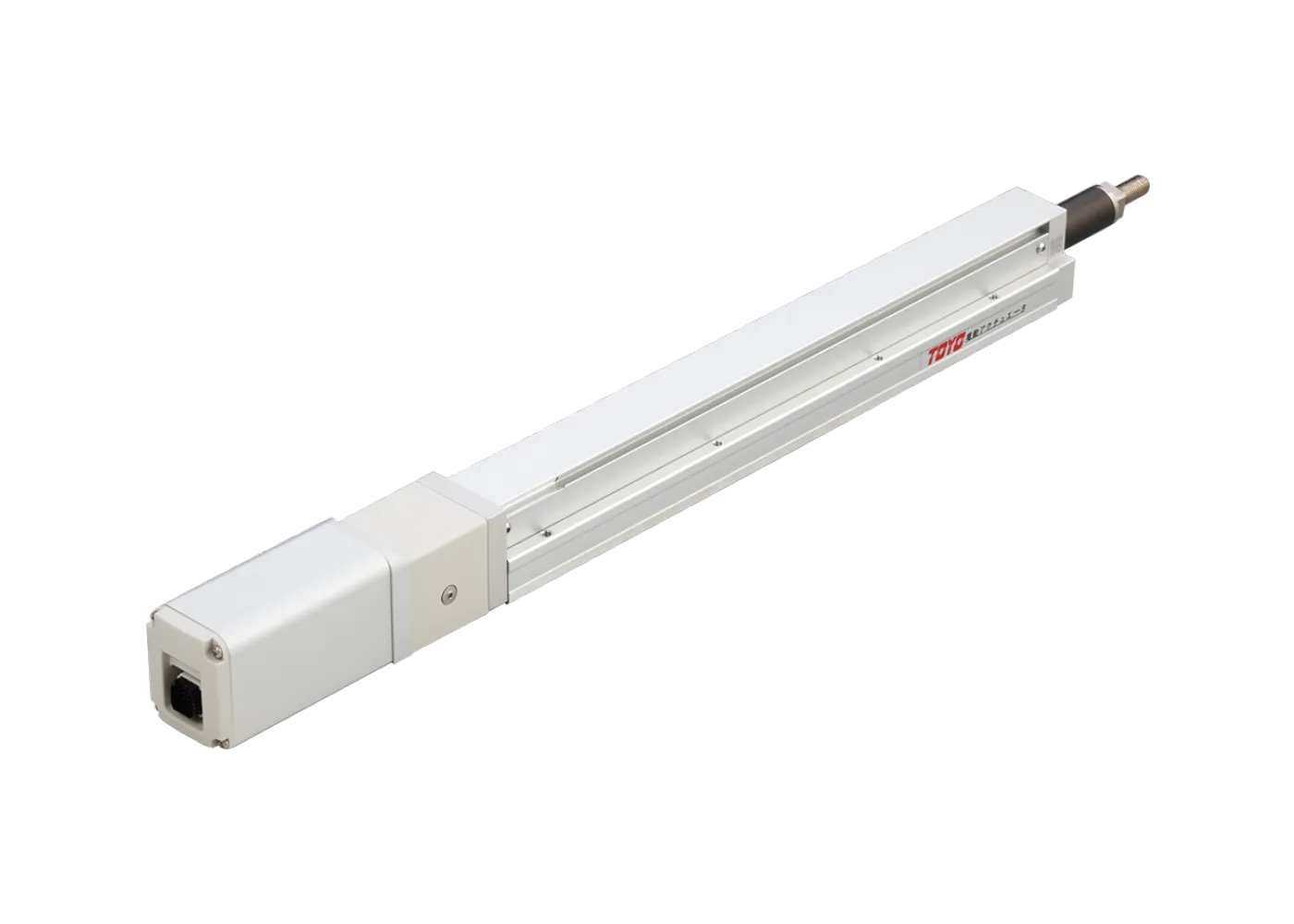

CGTY4 Motor Integrated Rod Actuator
CGTY5 Motor Integrated Rod Actuator

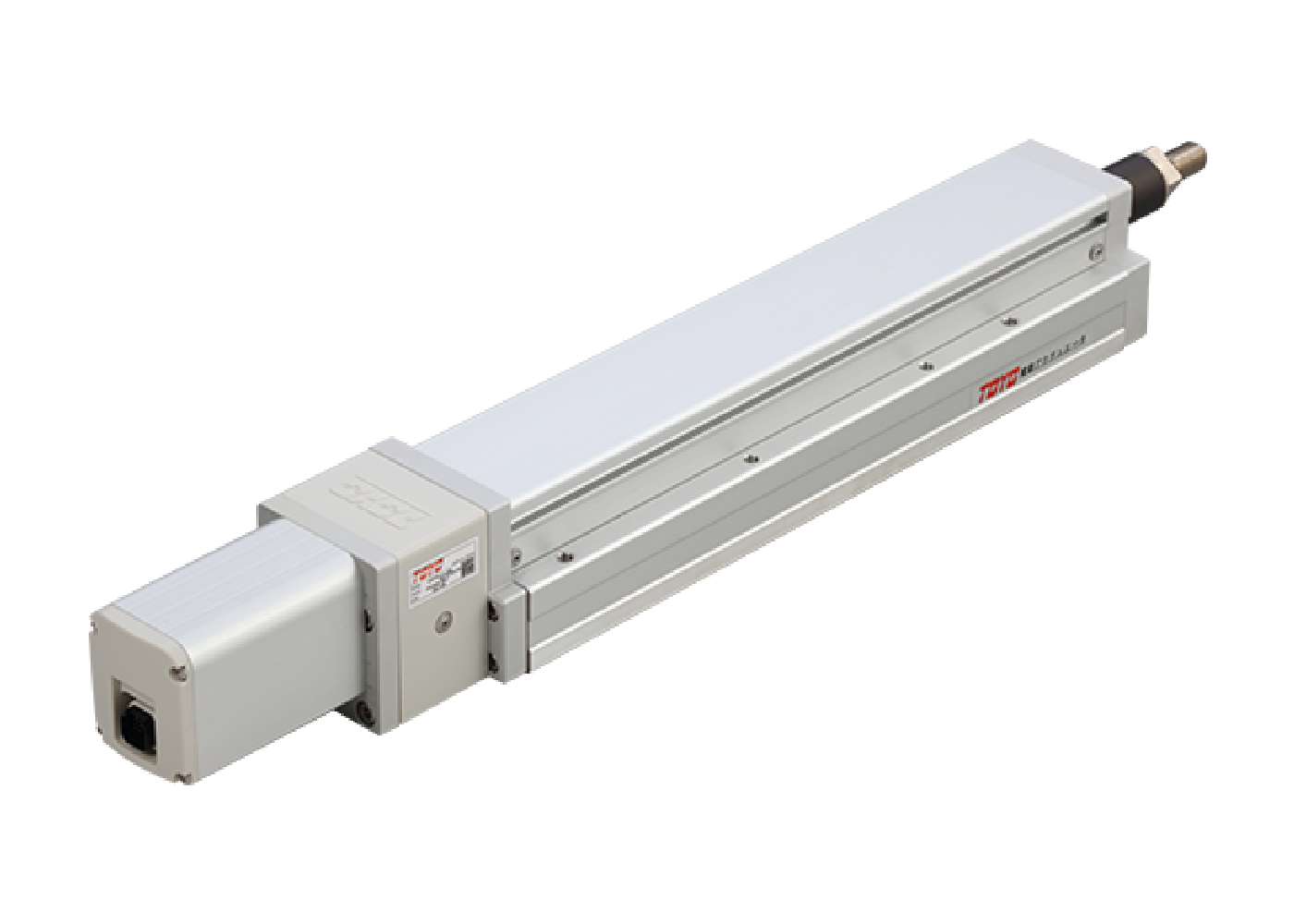

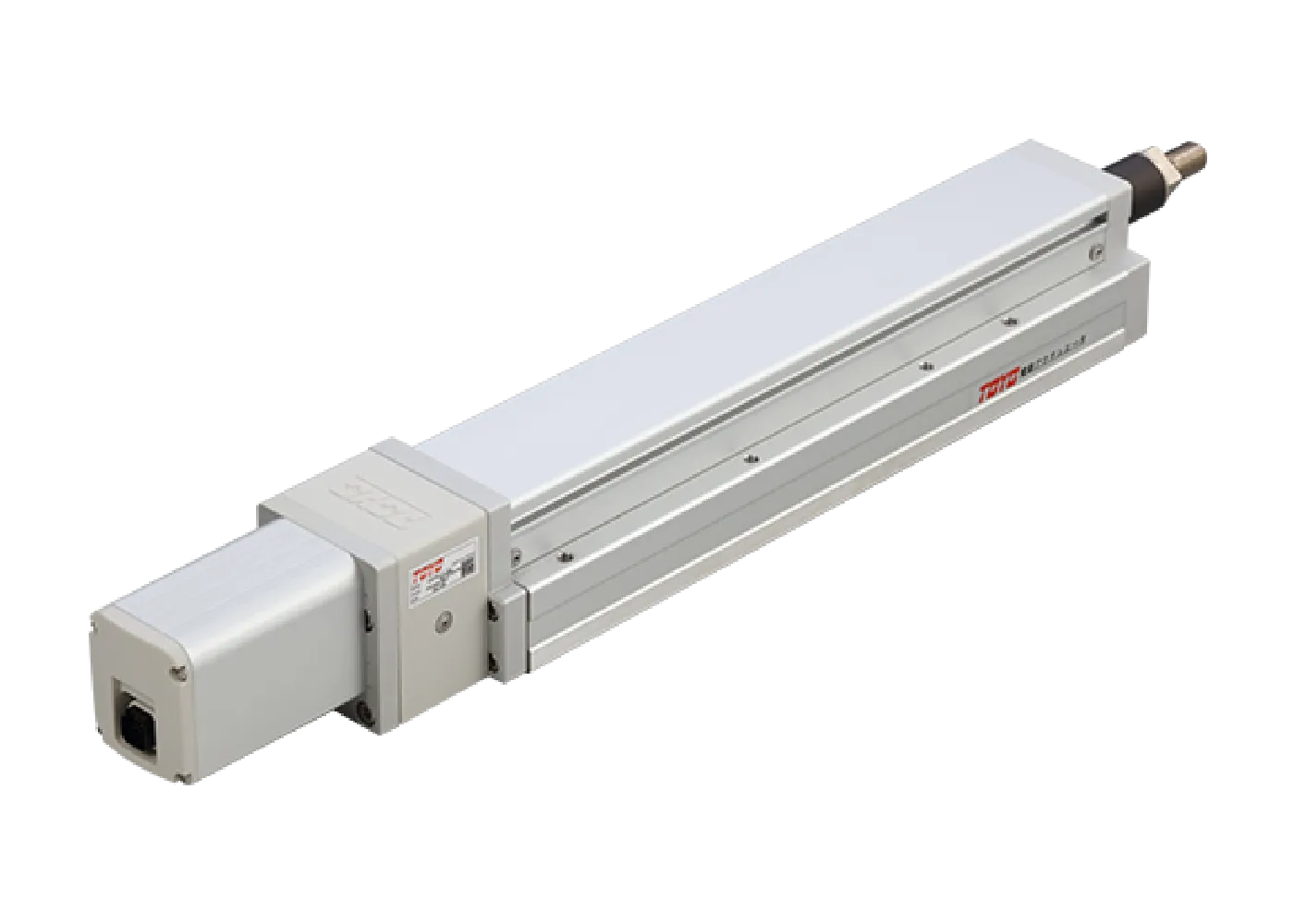

CGTY8 Motor Integrated Rod Actuator
CGTY Series
CGTY Series Standard Actuator

CGTY Series

High-Efficiency Rod-Type Actuators with Integrated Closed-Loop Steppers

High-Efficiency Rod-Type Actuators with Integrated Closed-Loop Steppers Download native CAD models and request a technical quote for the CGTY Series series

Get Pricing CAD Models

Overview

The CGTY Series represents the next generation of rod-type actuators, merging high-precision ball screw mechanics with integrated closed-loop stepper technology. Designed as a superior electric replacement for pneumatic cylinders, the CGTY provides deterministic multi-point positioning and high-thrust performance in a compact, maintenance-friendly chassis. By embedding the linear bearing system internally, the CGTY manages radial loads with exceptional stability, making it the ideal choice for demanding industrial pressing, lifting, and sorting tasks.

Key Benefits

  • Deterministic Closed-Loop Control: Eliminates the risk of step loss through real-time encoder feedback, ensuring absolute positioning reliability even under varying load conditions.
  • Robust Built-In Guidance: Features an internal linear bearing system that protects the rod from radial deflection, significantly increasing the actuator's moment-load capacity and overall service life.
  • High-Efficiency Ball Screw Drive: Utilizes industrial-grade ball screws to achieve repeatability of ±0.01 mm, delivering consistent performance that pneumatic systems cannot match.
  • Plug-and-Play Integration: The all-in-one motor-actuator design minimizes cabling and installation complexity. For optimal performance, the CGTY is engineered to pair seamlessly with the TC100 series controller.

Target Applications

  • Packaging & Sorting: High-speed, multi-point positioning for varied product sizes on automated conveyor lines.
  • Automotive Assembly: Reliable electric pressing and clamping operations where pneumatic pressure fluctuations are unacceptable.
  • Medical Device Testing: Controlled, repeatable force application for non-destructive material and component testing.
  • Electronics Handling: Precision z-axis motion for sensitive component transfer in space-constrained workcells.

Technical Excellence & Benefits

Closed-Loop Reliability

Features continuous encoder feedback to actively monitor and correct position, completely eliminating step loss even in high-duty cycle industrial environments.

High-Thrust Rod Design

Optimized for heavy-duty pressing and lifting applications with thrust capacities up to 1,147N, providing a robust electric alternative to pneumatic cylinders.

Built-in Linear Guideway

The internal guidance system manages radial loads and ensures strict rod alignment, significantly extending the operational life of the actuator.

Simplified System Architecture

Consolidating the motor and rod actuator into a single unit reduces cabling complexity and cabinet space, accelerating machine commissioning timelines.

Engineering Gallery
Product Detail
Integrated System Architecture (Motor + Actuator)

Explore Alternate Solutions

Compare the CGTY Series with similar high-performance series in our portfolio.

CGTH Series
CGTH Series

Integrated Linear Bearings Servo Cylinder

Sizes
CGTH3 CGTH4 CGTH5 CGTH8
Explore Series
DGTY Series
DGTY Series

Integrated Linear Bearings Rod Type

Sizes
DGTY4 DGTY5
Explore Series
Y Series
Y Series

Rod Type Actuator (Standard)

Sizes
Y50 Y50D Y50L Y65 Y65D Y65L
Explore Series

Motor/Actuator System Performance

CGTY4 Performance
CGTY4 Performance
CGTY5 Performance
CGTY5 Performance
CGTY8 Performance
CGTY8 Performance

Mechanical Specifications

Specification CGTY4 CGTY5 CGTY8
Product Size (W x H mm) 40 x 46 52 x 60 82 x 90
Repeatability (mm) ±0.01 ±0.01 ±0.01
Maximum Payload (kg)(1) 25 30 30
Maximum Thrust (N)(1) 1094 1147 459
Maximum Travel (mm) 500 600 800
Maximum Speed (mm/s) 600 1000 1000
Maximum Acceleration (G) 0.5 0.5 0.5
Operating Temperature (°C)(2) 0 - 40 0 - 40 0 - 40

1 Maximum payload and thrust are specified based on an L10 life rating. To calculate life for your application, please contact us.

2 For extreme temperatures outside of this range, special greases are required.

Actuator Stroke / Travel Specifications

Specification 50
(mm)		 100
(mm)		 200
(mm)		 300
(mm)		 400
(mm)		 500
(mm)		 600
(mm)		 700
(mm)		 800
(mm)
CGTY4 Weight (kg) 1.33 1.58 2.07 2.57 3.06 3.56 Not Available
CGTY5 Weight (kg) 1.91 2.13 2.56 2.99 3.42 3.86 4.29 Not Available
CGTY8 Weight (kg) 4.77 5.12 5.81 6.51 7.21 7.90 8.60 9.29 9.99
Swipe horizontally to view full specifications.
CGTY Series Technical Catalog

PDF Download - Includes dimensional drawings and selection guides.

Download Catalog
CAD Design

Native CAD Models & 3D Configurations

Access the TOYO CAD Portal →

Seamless Integration into Your Design Environment

To ensure the highest level of design accuracy and reduce your engineering lead times, TOYO Robotics Americas provides a comprehensive library of native CAD models. Hosted through our CAD Community Portal, these models are not generic placeholders; they are highly detailed, configurable files designed to drop directly into your assembly.

  • Native Format Support: Download models in your preferred native format, including SolidWorks, Autodesk Inventor, Pro/E (Creo), Siemens NX, and CATIA, as well as universal formats like STEP, IGES, and Parasolid.
  • Dynamic Configuration: Adjust stroke lengths and motor orientations in real-time to generate a model that matches your exact specification.
  • Instant Access: Register once to unlock unlimited downloads, ensuring you have the most up-to-date technical data for your project milestones.
Autodesk
Pro/E
CATIA

Ordering Information

Select a size to view the specific ordering code configuration:

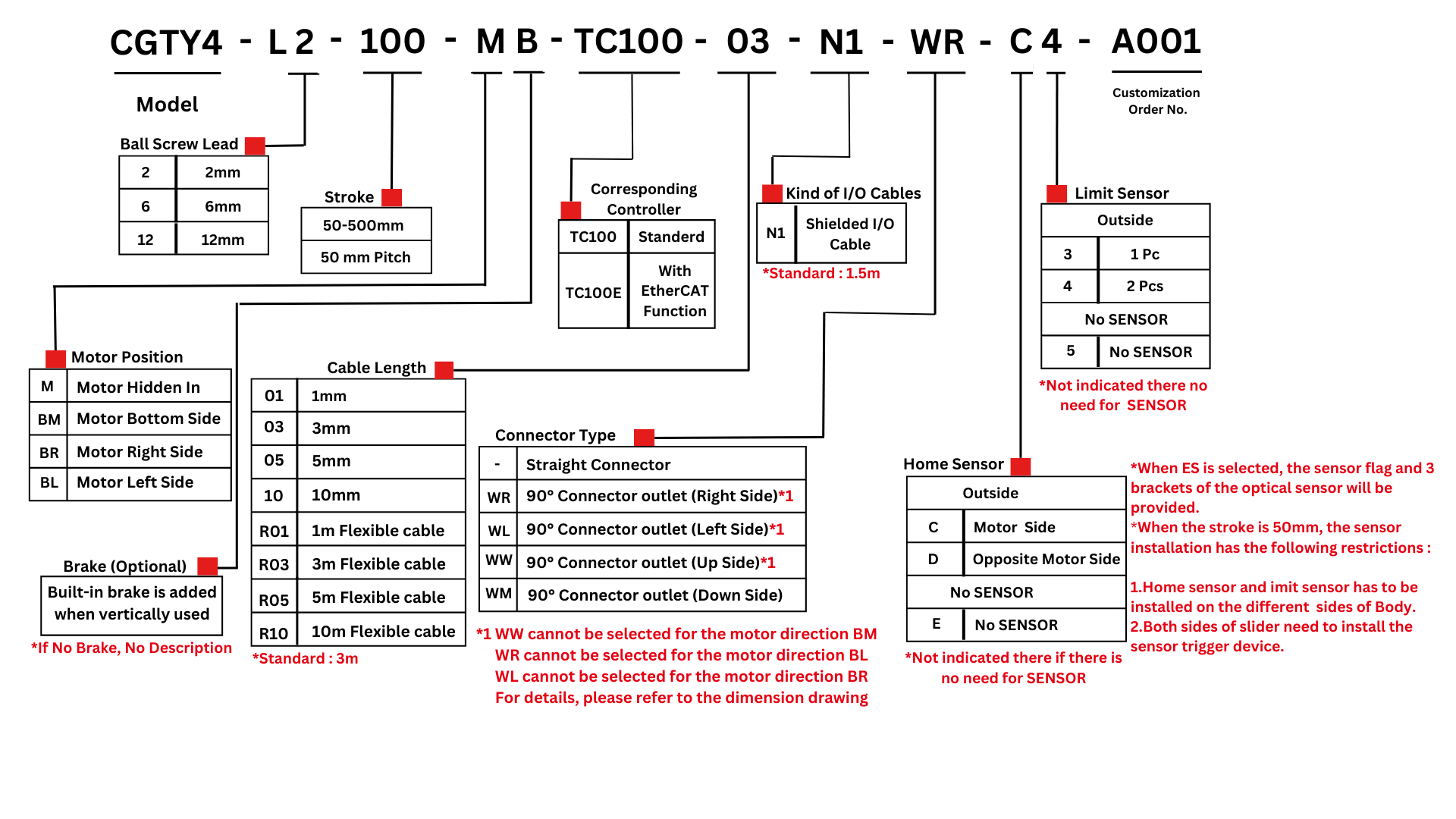

Ordering Code

Contact our application engineers to generate your exact part number or for complex multi-axis configurations.

Request Configuration Support
