Overview

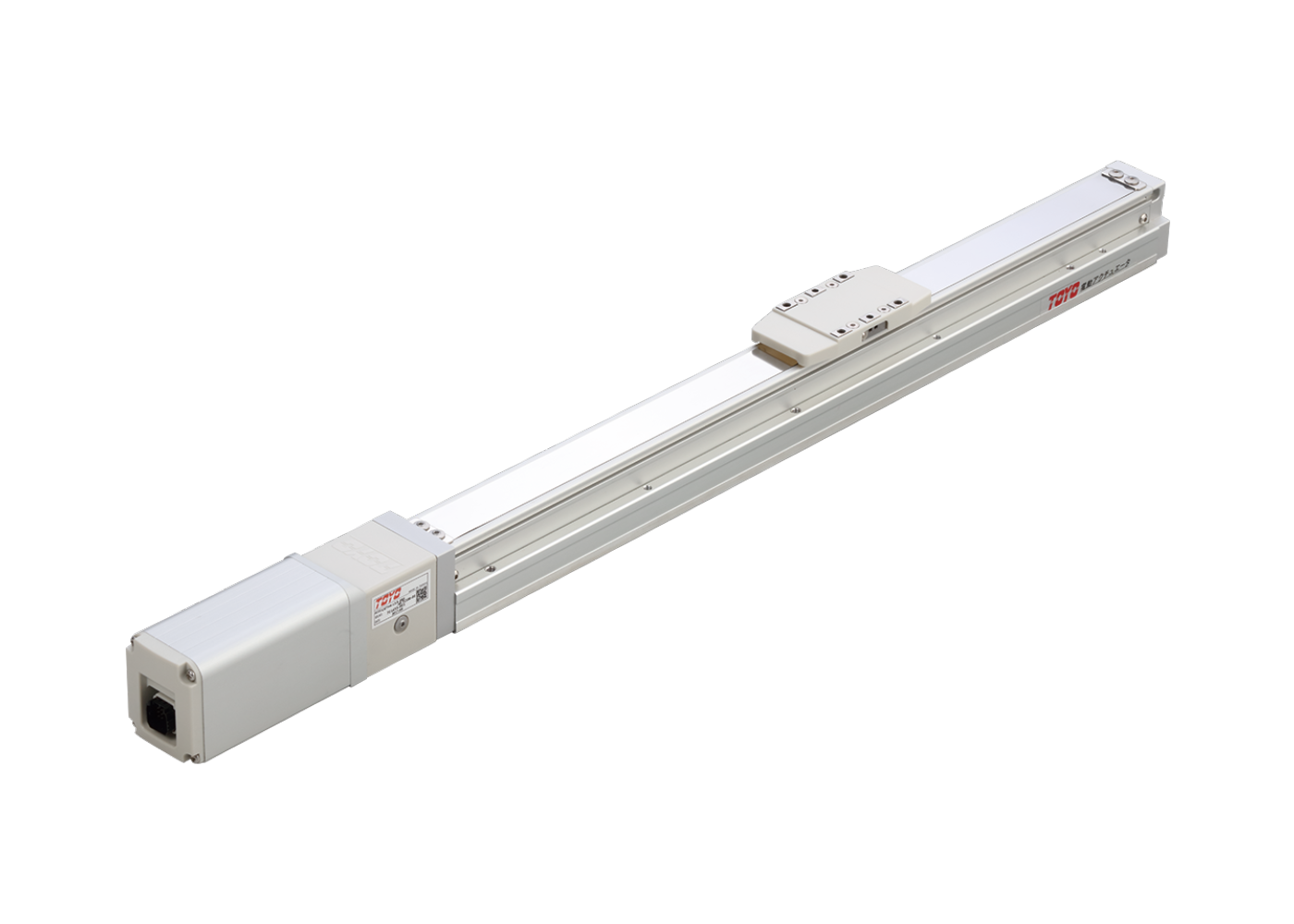

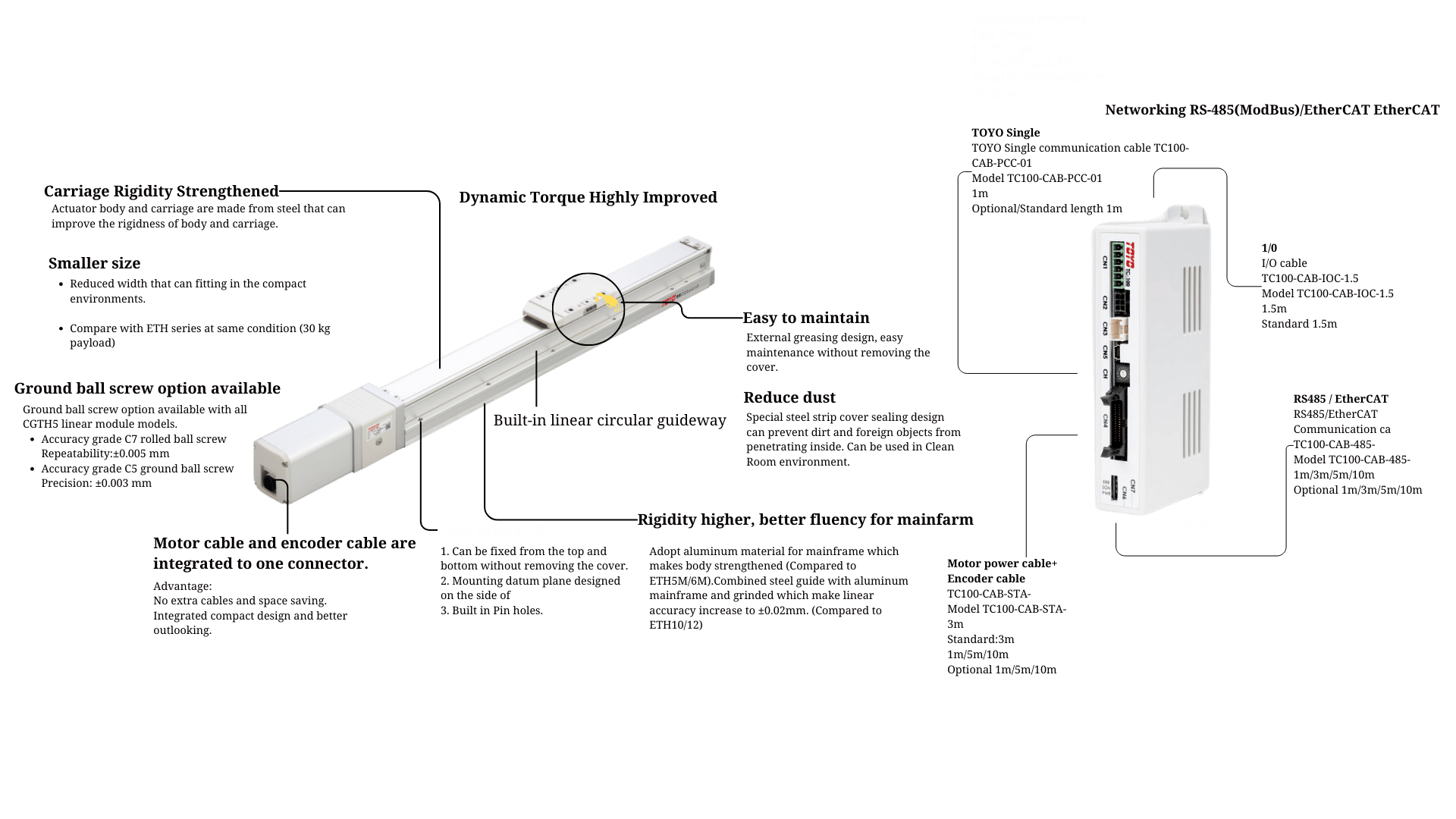

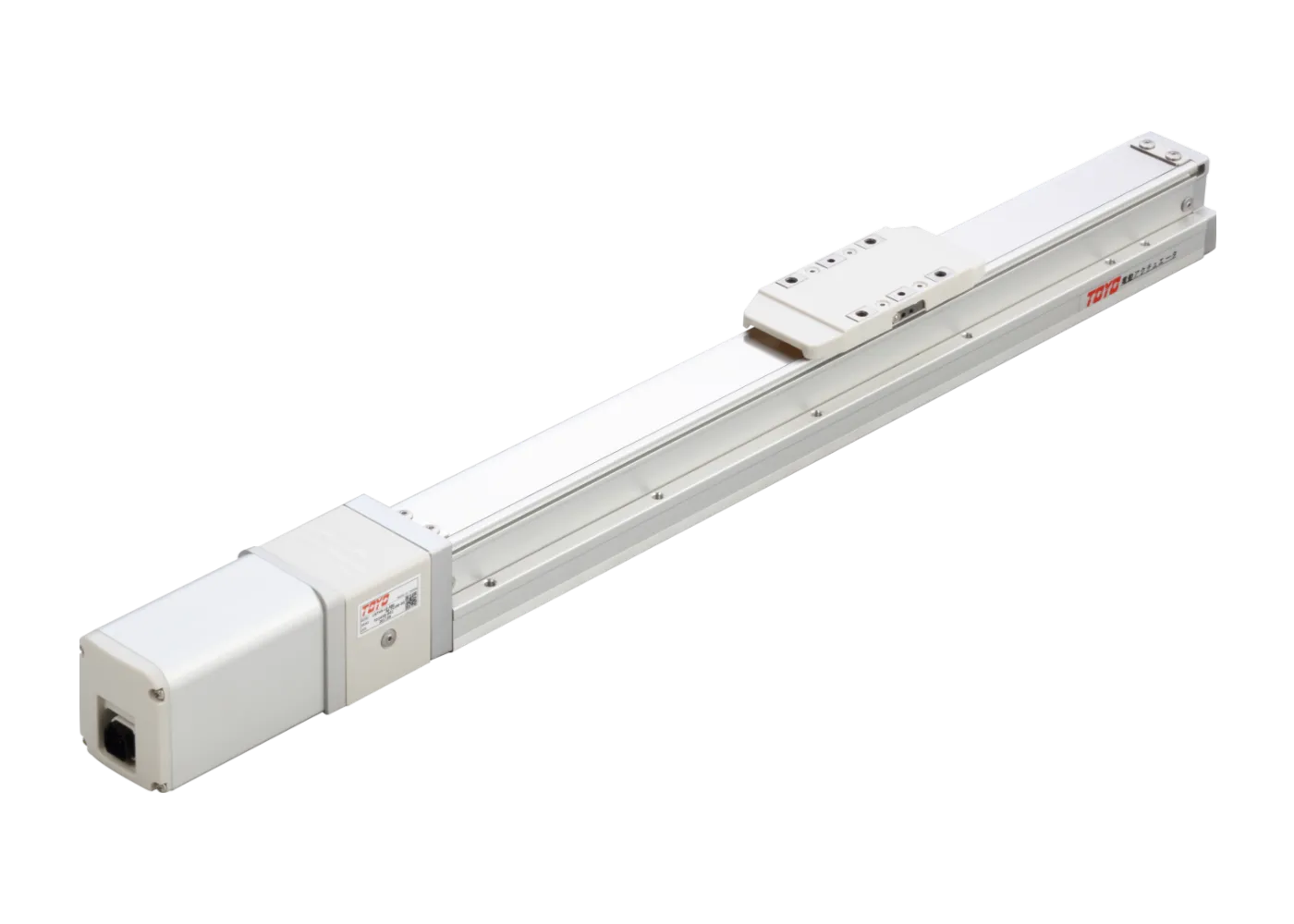

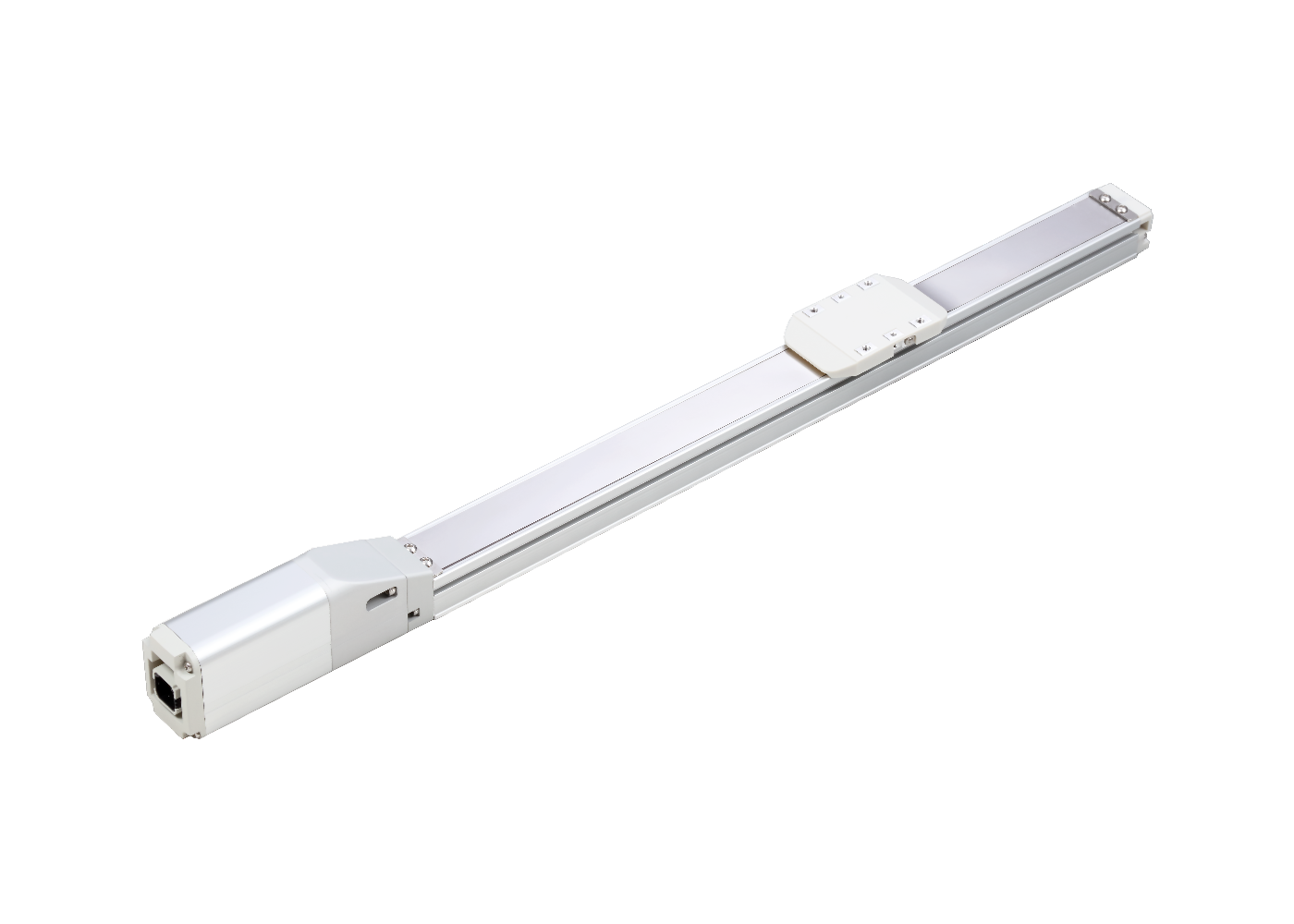

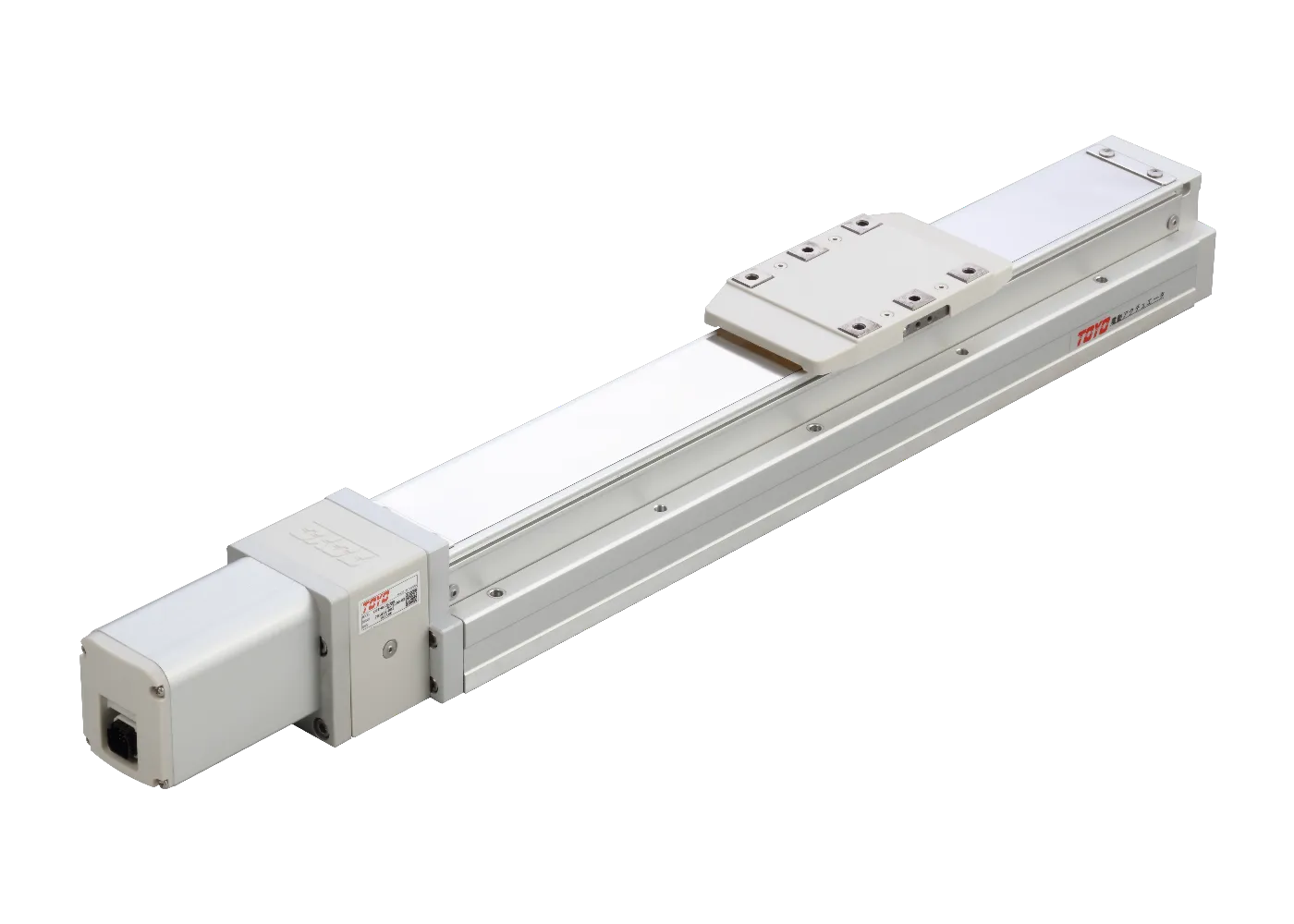

The CGTH Series eliminates the complexity of matching motors to mechanical stages by delivering a pre-integrated, closed-loop ball screw actuator that guarantees zero lost steps. Designed to drastically reduce engineering hours and streamline system architecture, this compact unit provides immediate operational readiness for high-stakes environments. For optimal performance and seamless commissioning, the CGTH Series is engineered to pair directly with the TC100 series all-in-one controller.

Key Benefits

• Closed-Loop Reliability: Continuous encoder feedback actively monitors and corrects position, completely eliminating the step-loss vulnerabilities inherent to standard open-loop stepper systems.
• Micron-Level Precision: Driven by a high-grade ball screw mechanism, the actuator achieves an exceptional repeatability of ±0.005 mm to satisfy the most rigorous micro-positioning requirements.
• Integrated Footprint: Consolidating the closed-loop motor and linear stage into a single, unified chassis minimizes spatial requirements and simplifies mechanical mounting.
• Rapid System Deployment: By providing a pre-configured and pre-tested mechanical assembly, the CGTH minimizes design iterations and accelerates the transition from concept to production.

Target Applications

• Semiconductor Manufacturing: Precise wafer handling and stage positioning for inspection and lithography processes.
• Electronics Assembly: High-accuracy component placement, PCB routing, and automated soldering.
• Medical Lab Automation: Reliable, zero-error liquid handling and automated specimen processing.
• Aerospace Testing: Exacting sensor positioning and non-destructive material testing under tight tolerances.
