TOYO Limit Sensors: Home and End of Travel Sensors for a Complete Motion Solution

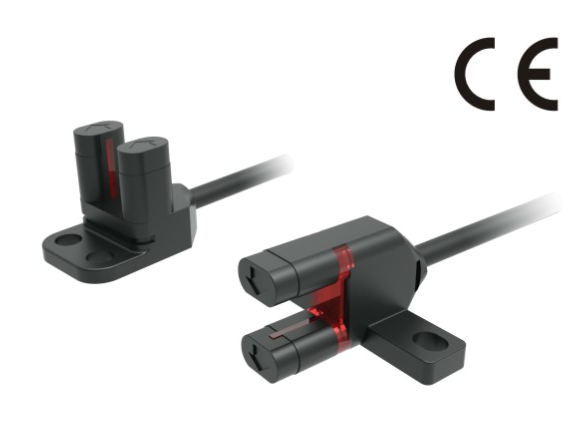

TOYO's advanced slot-shaped photoelectric sensors are engineered as universal performance accessories designed to integrate seamlessly across our entire ecosystem of motion hardware, including precision belt-driven actuators, single-axis screw drives, and multi-axis systems. Operating on a DC 5 to 24V power supply, these compact sensors provide critical position feedback, homing references, and travel restriction limits that ensure automated equipment operates safely and efficiently at high speeds.
Dual-Output Flexibility and Operating Modes
Each sensor in the TOYO lineup is built with dual outputs, providing simultaneous "ON when light is received" and "ON when light is blocked" configurations (normally open plus normally closed functionality). This versatility allows automation engineers to adapt the switching logic directly to their control architecture without needing separate hardware variants. Available in both NPN and PNP output transistor configurations, these sensors interface effortlessly with standard industrial PLCs and motion controllers.
Robust One-Piece Design and Rugged Protection
Transitioning from older multi-piece styles, TOYO’s current sensor architecture features a rugged, injection-molded one-piece body design laser-engraved for permanent identification and enhanced durability. Built for rigorous industrial environments, they are equipped with:
-
Short-circuit and overload protection to safeguard circuitry against accidental miswiring or electrical spikes.
-
Power reverse-polarity protection ensuring that incorrect initial wiring will not permanently damage the device.
-
IP65 protection class shielding internal components from dust, light oil mists, and common factory conditions.
Product Configuration Options
To match specific spatial and electrical layouts on your machinery, TOYO offers multiple variations:
-

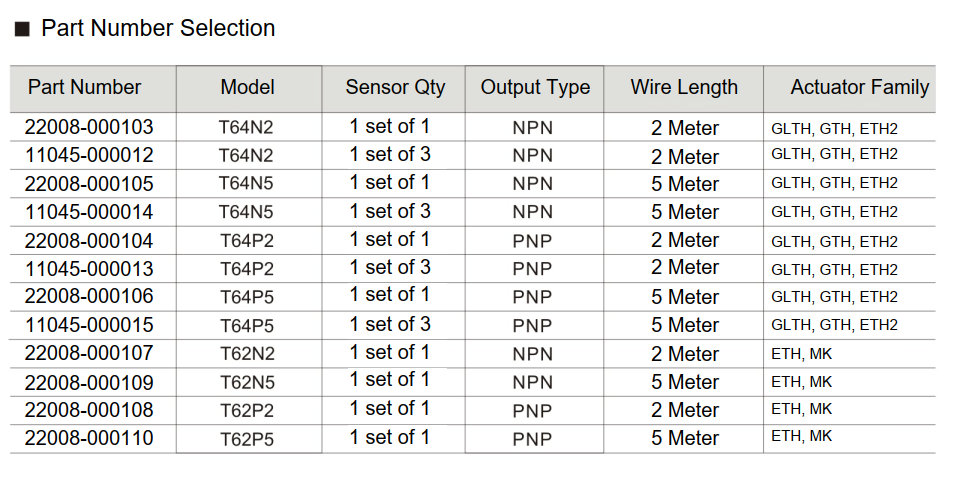

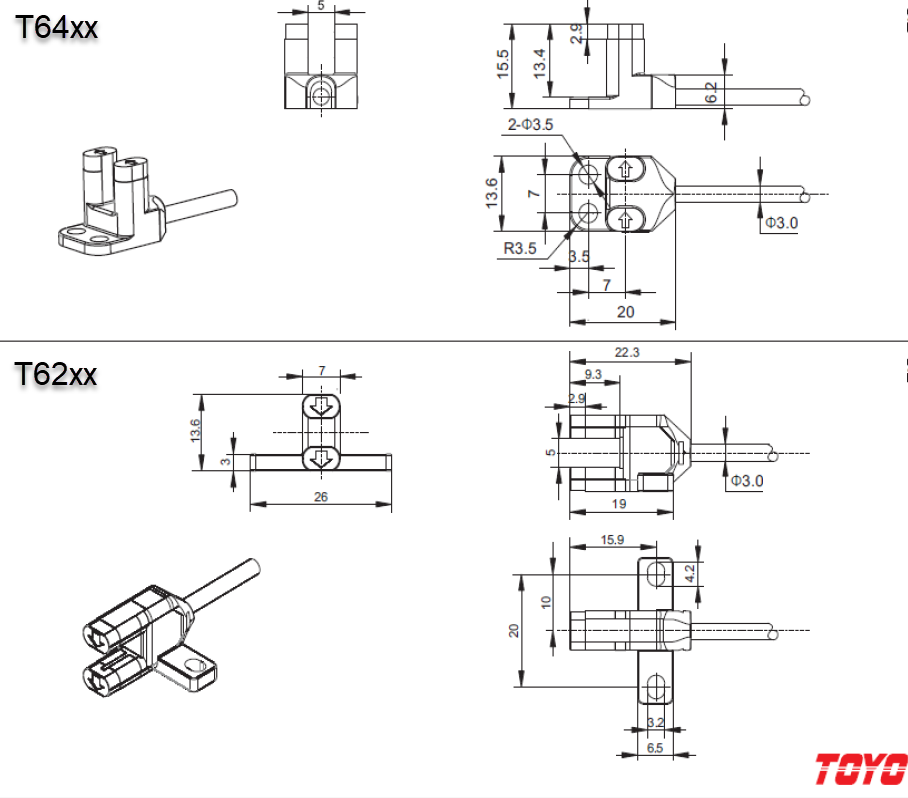

T64 Series: Optimized for standard grooved integration with a 5mm detection width, suitable for standard actuator flag passing.
-
T62 Series: Designed with alternative mounting geometries tailored to specific actuator models like the E-series and M-series.
-
Cable Lengths: Available in flexible 2-meter and 5-meter lead wire configurations to accommodate various control panel distances.
How Sensors Enhance Actuator Performance
When paired with TOYO belt drives, ball screw actuators, or electric cylinders, these photoelectric sensors play an indispensable role in machine kinematics:
-
Homing and Reference Points: They provide repeatable, high-precision positioning (<0.01mm repeatability) so carriages can establish an exact home coordinate upon startup.
-
Overtravel Protection: Positioned at the end-of-stroke boundaries, they act as reliable limit switches to prevent the actuator carriage from mechanically colliding with the end plates during high-velocity moves.
-
High-Speed Throughput: With an ultra-fast 1KHz response frequency, these sensors accurately detect fast-moving shutter flags and indexing plates, maximizing cycle times and productivity across general factory automation and high-yield semiconductor assembly lines.
