Overview

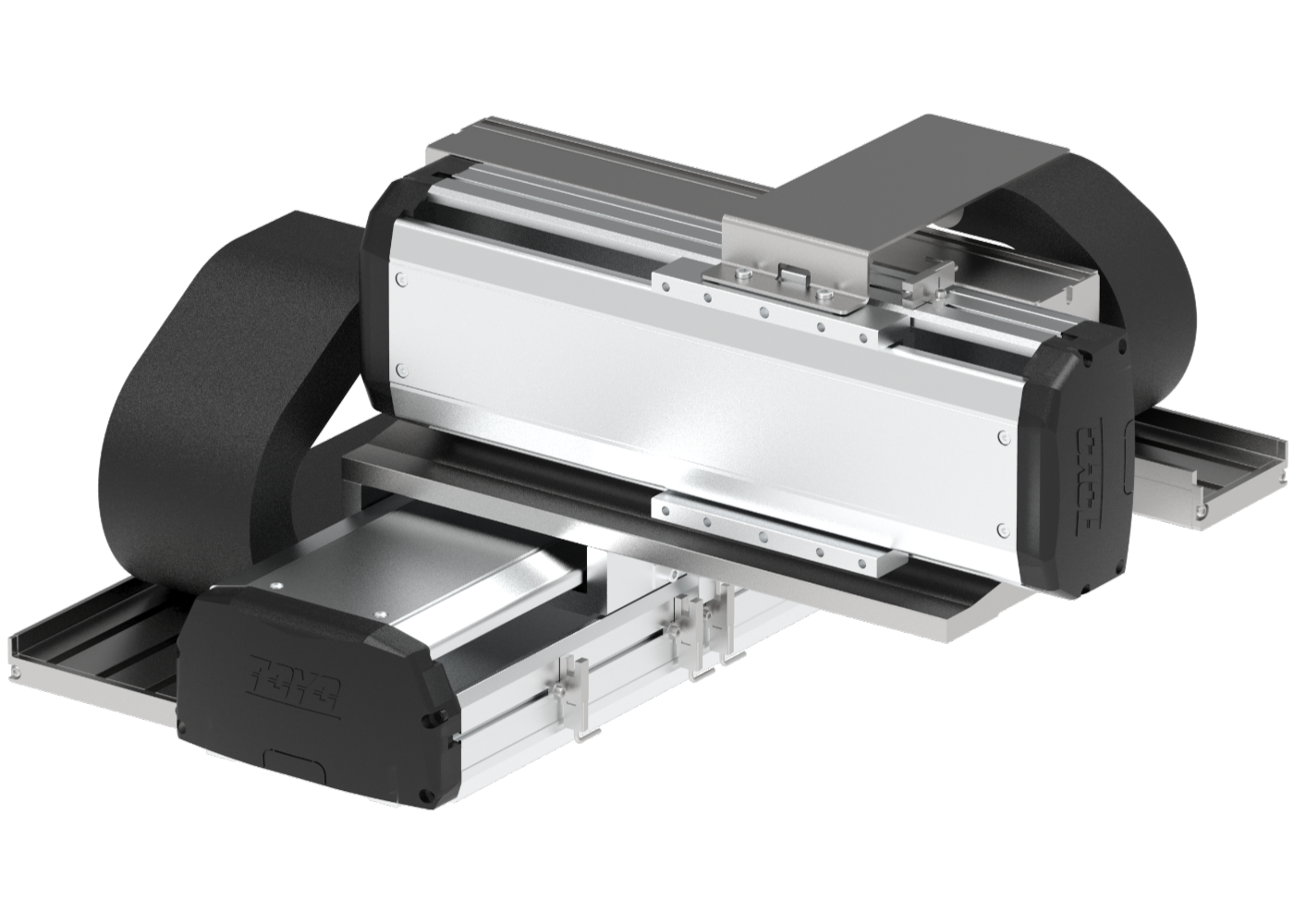

The XYTH Series offers a versatile, motor-ready platform for multi-axis slider configurations. Leveraging the robust mechanics of TOYO's ETH series actuators, the XYTH provides pre-engineered XY and XYZ systems in various layouts (including cantilevered, gantry, and stacked configurations). This allows engineers to specify and mount their own preferred motor technology while bypassing the complex mechanical design and alignment phase. Whether for open-loop steppers or high-response AC servos, the XYTH series is a rigid, reliable foundation for custom automation.

Key Benefits

• Control System Agnostic: Mount any NEMA or metric-framed motor, integrating the robot directly into your existing PLC or motion control architecture without proprietary constraints.

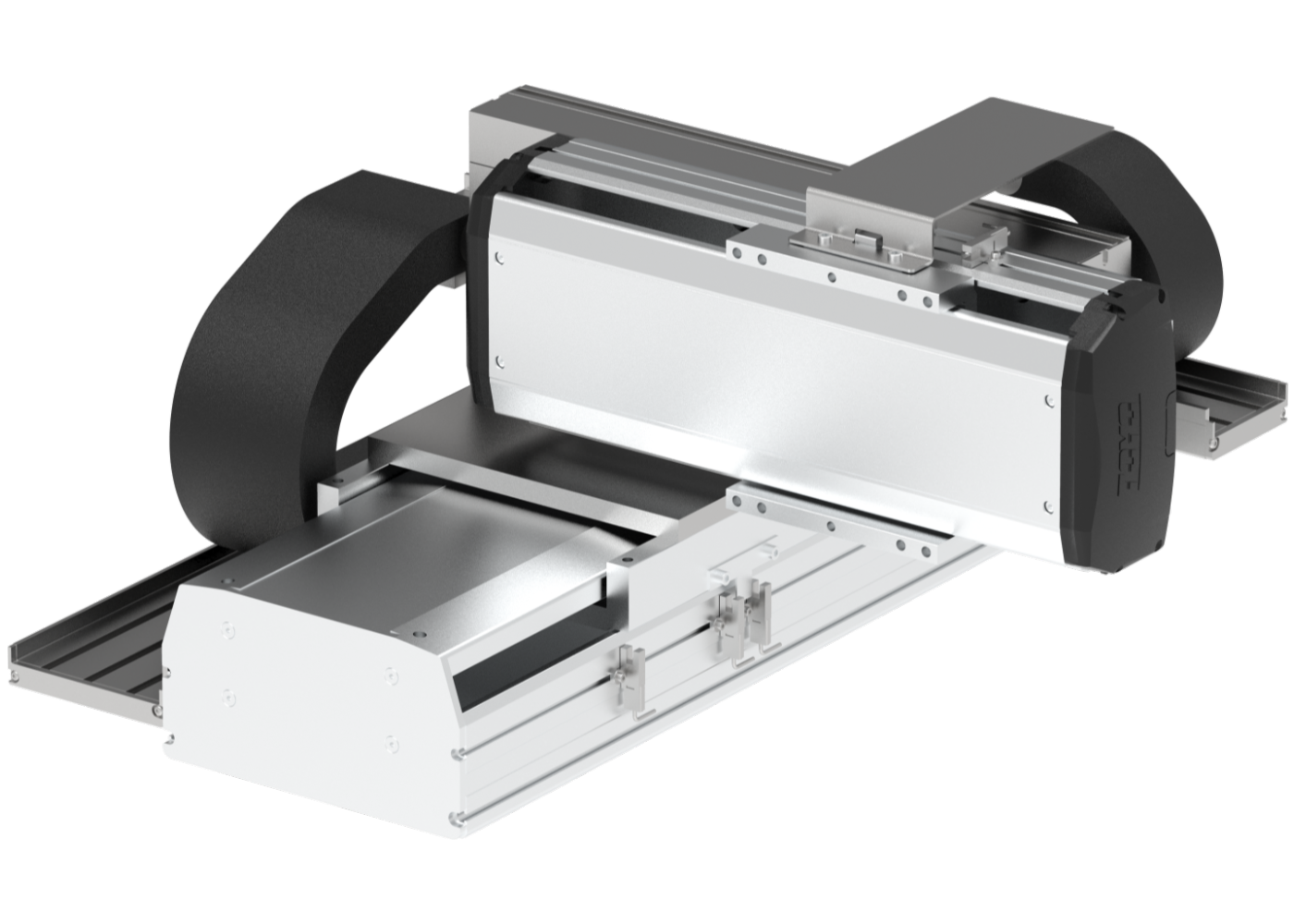

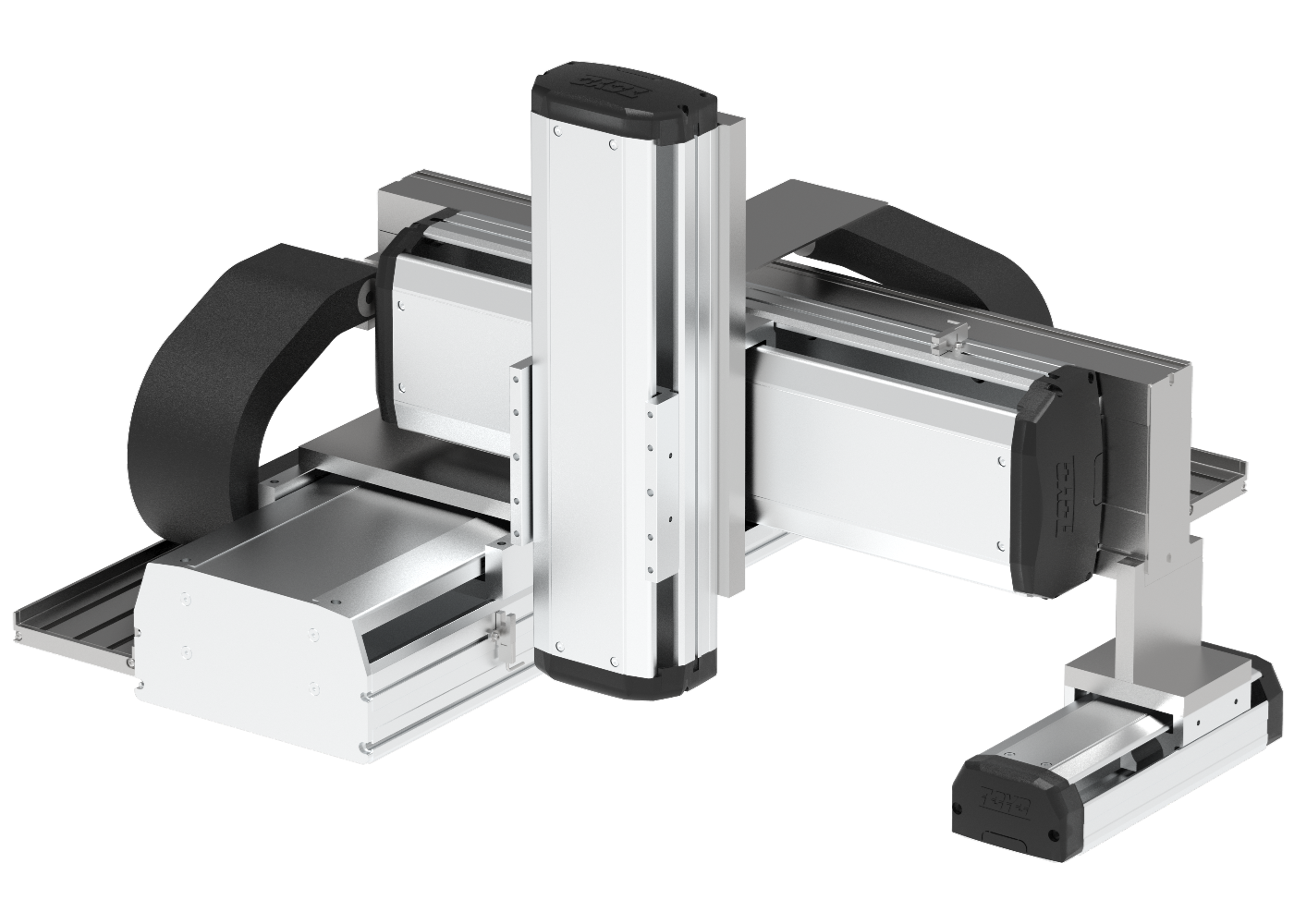

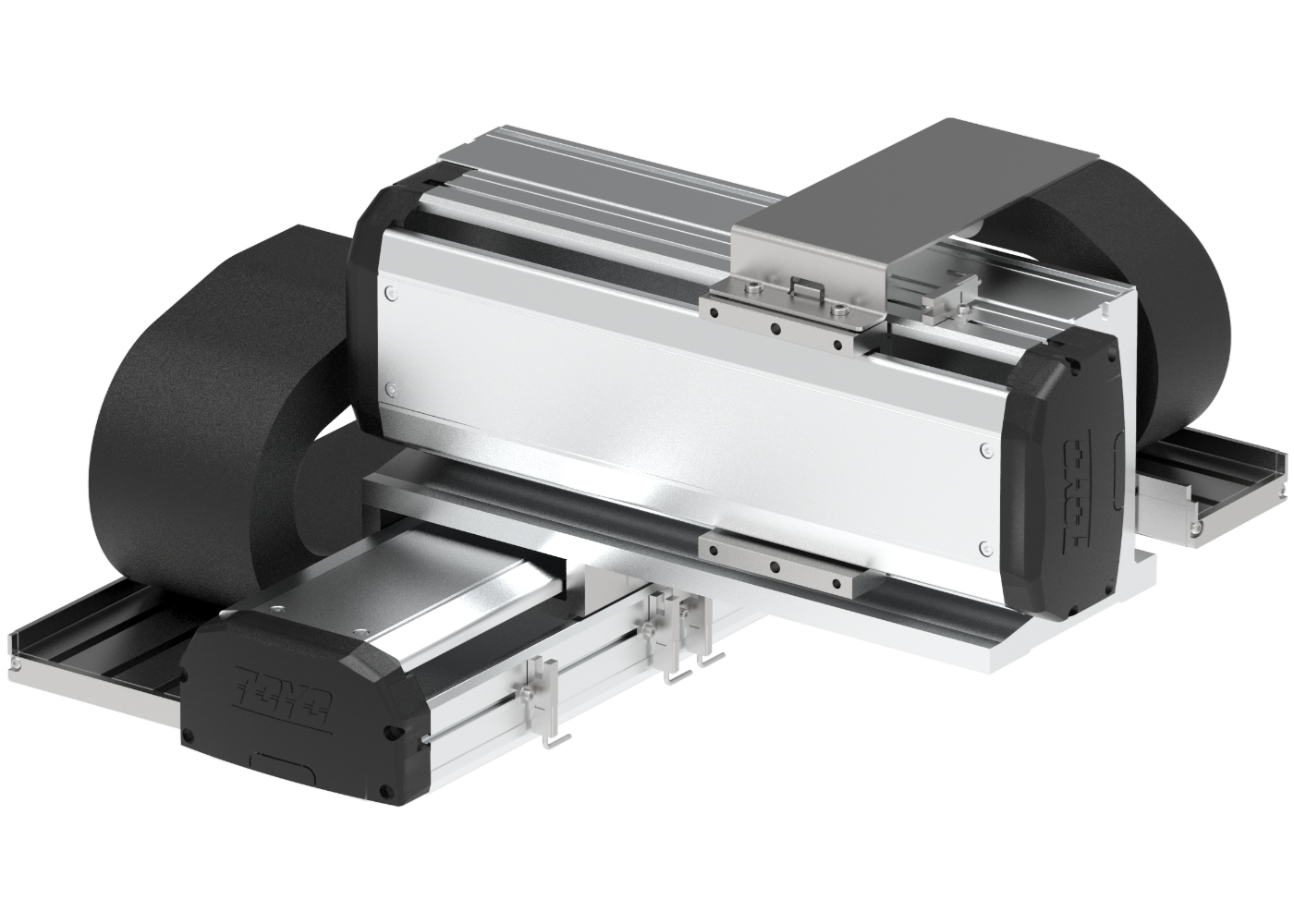

• Extensive Configuration Options: Choose from a wide variety of pre-aligned mechanical layouts (A, F, G, P types) built on the proven ETH series slider mechanics to perfectly match the spatial and payload requirements of your workcell.
• Drastically Reduced Time-to-Market: Avoid the complexities of designing, sourcing, aligning, and testing custom multi-axis structures. The XYTH arrives pre-aligned and ready for motor installation.
• High-Efficiency Ball Screw Drive: Utilizes industrial-grade ball screws to achieve deterministic repeatability of ±0.01 mm, delivering consistent performance for critical operations.

Target Applications

• Custom Machine Building: Ideal for OEMs seeking a reliable, pre-engineered mechanical base that seamlessly accepts their standard control ecosystem.
• Automated Assembly & Sorting: Reliable, multi-point positioning for component picking, pressing, and high-throughput sorting in manufacturing lines.
• Automated Dispensing: High-precision application of adhesives, thermal pastes, and sealants over complex topographies.
• Automated Inspection: Repeatable sensor or camera positioning for inline quality control and optical inspection.
