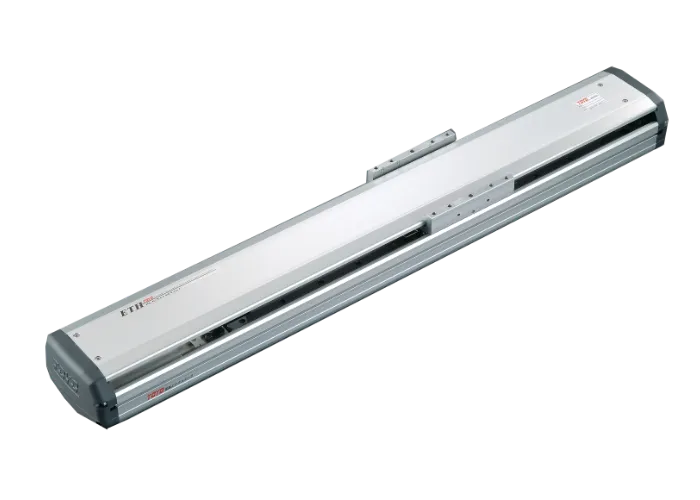

ETH Series Main

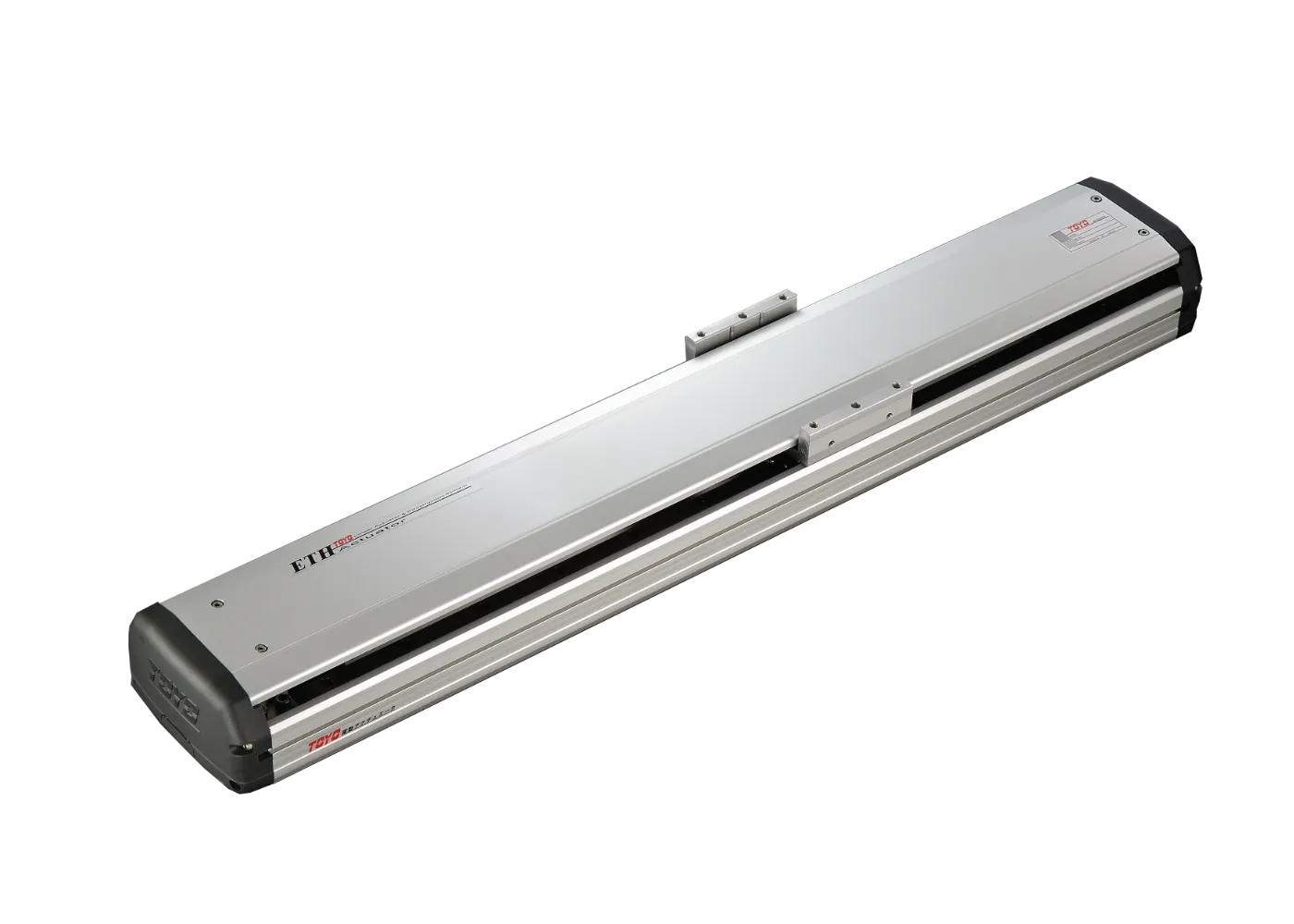

ETH13 Standard Actuator

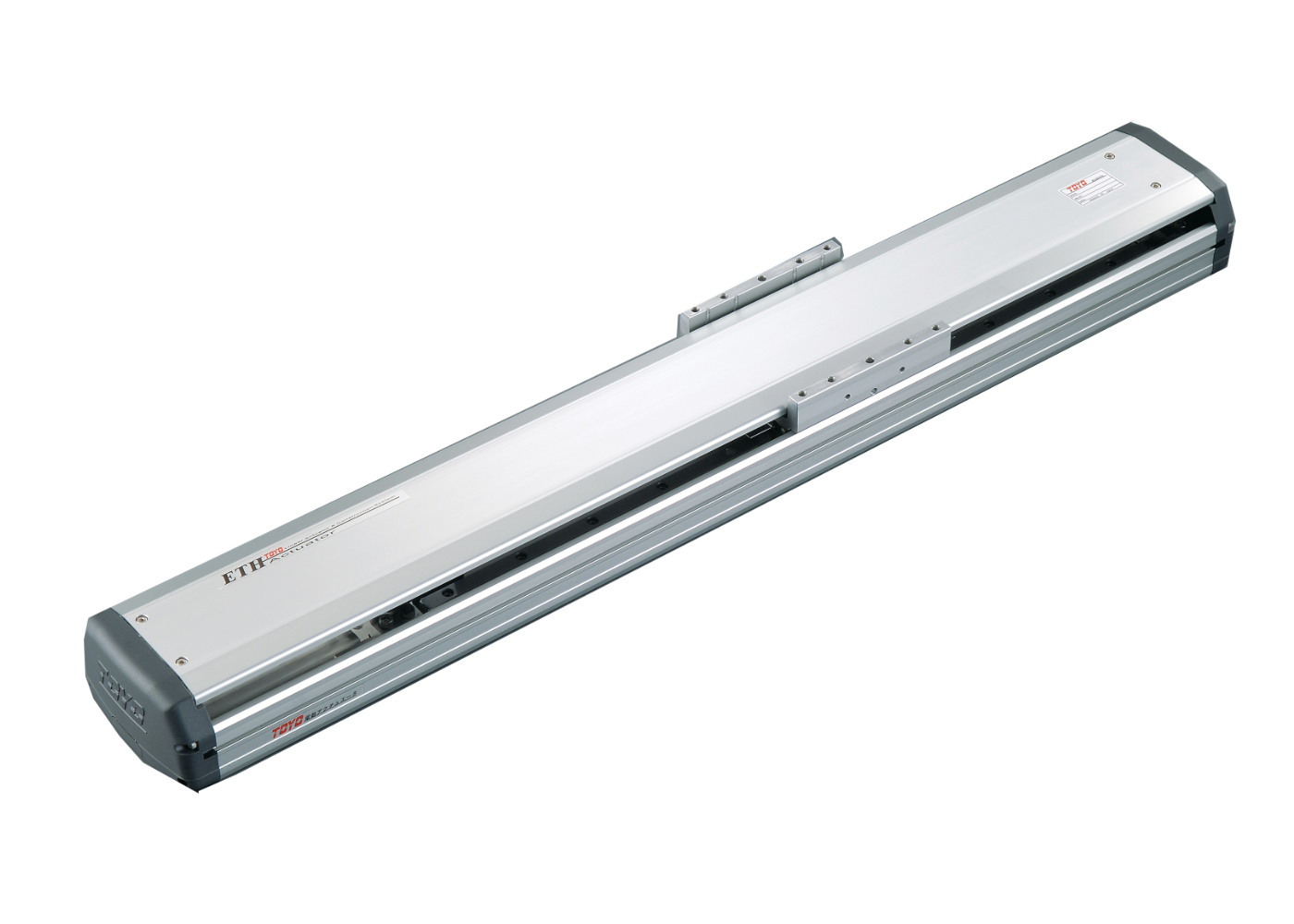

ETH14 Standard Actuator

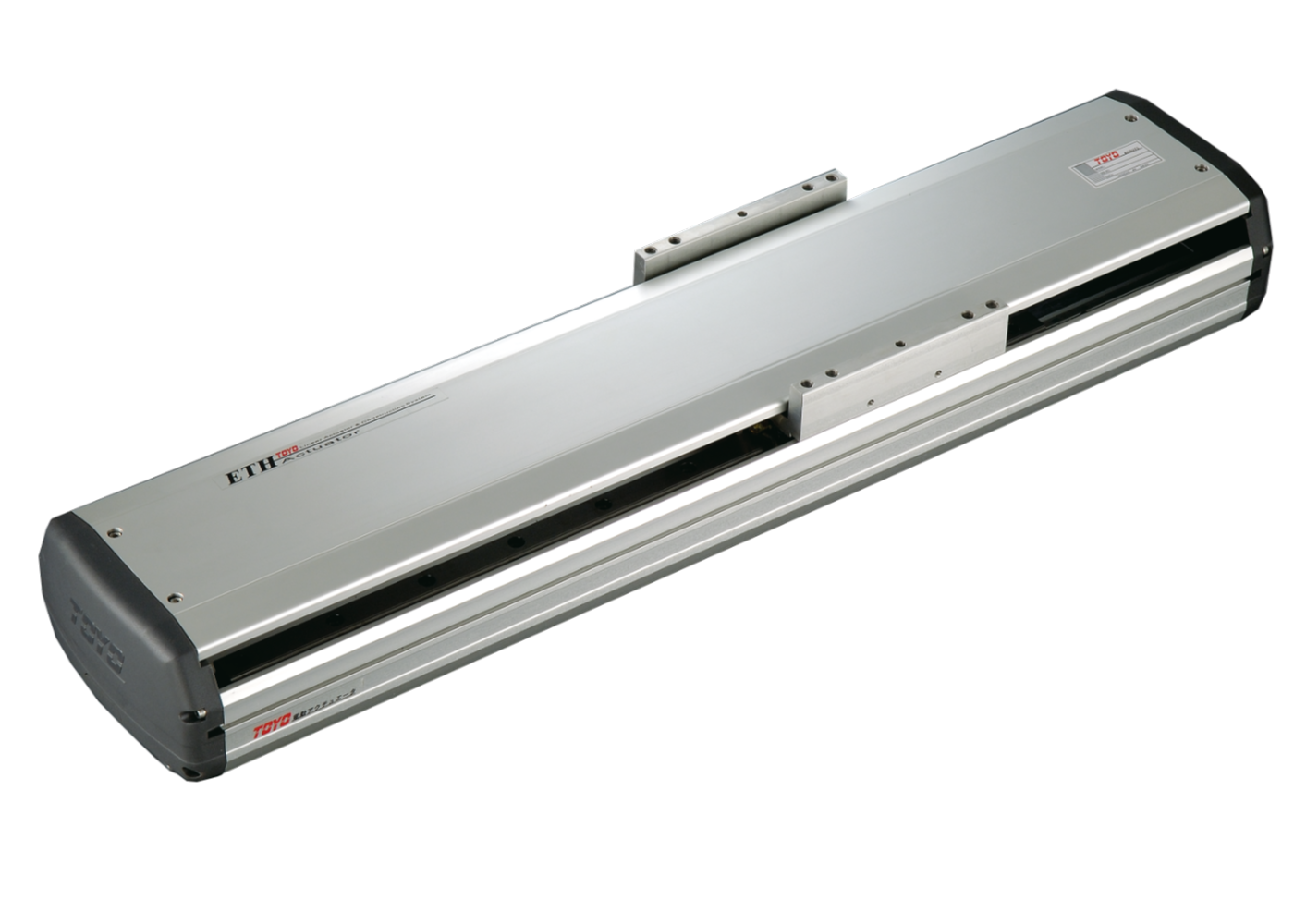

ETH17 Standard Actuator

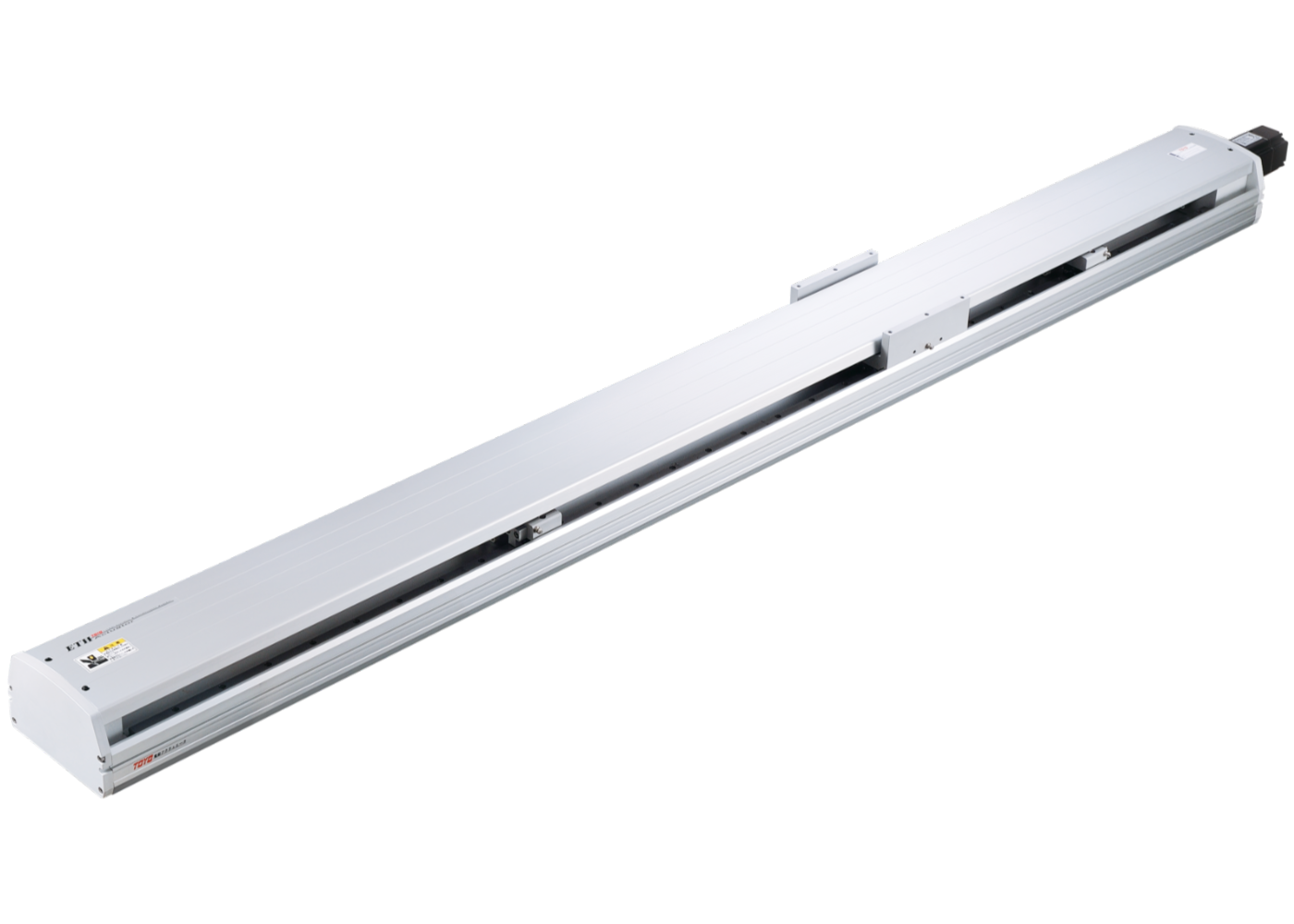

ETH17 Extended Length Actuator

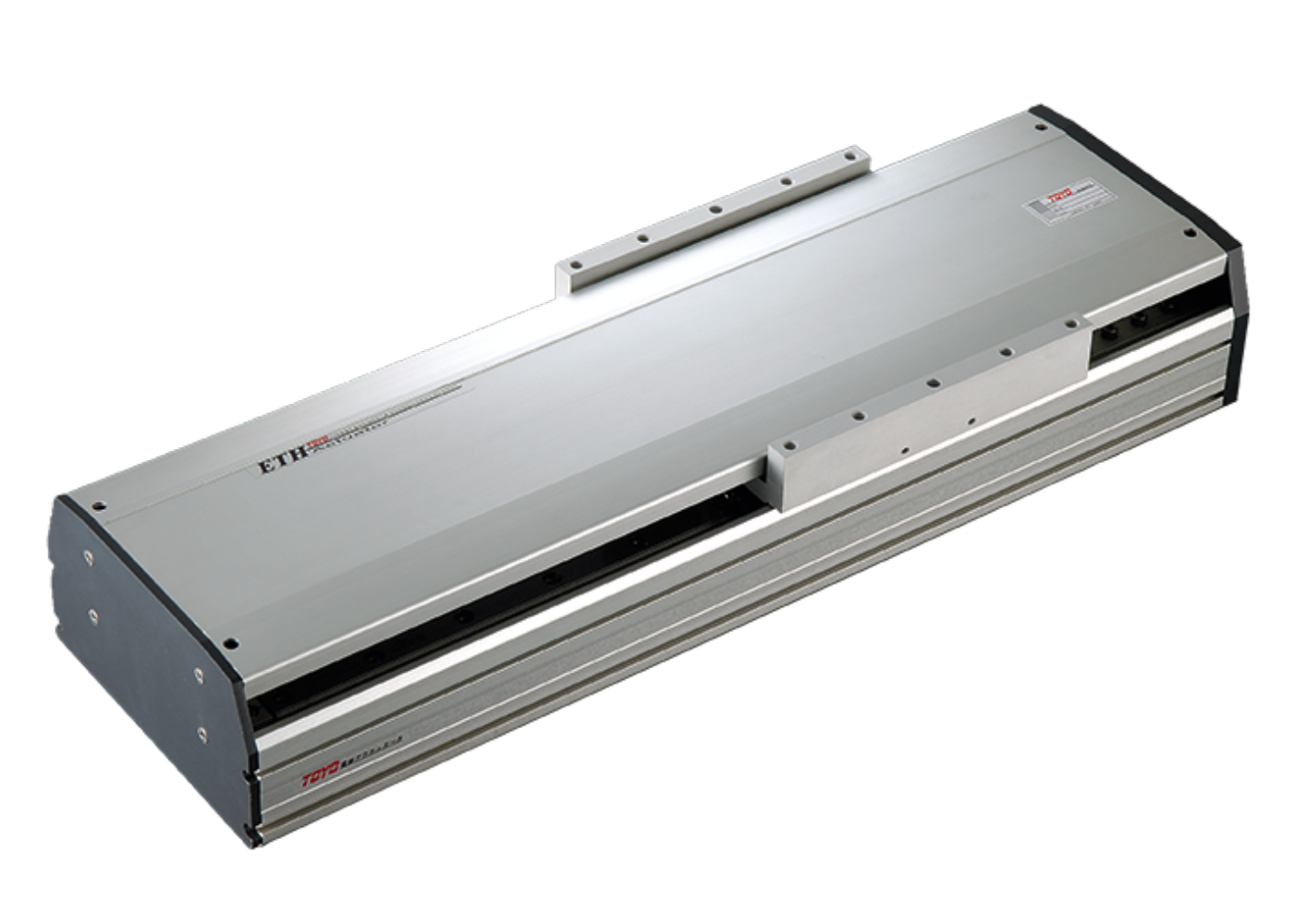

ETH22 Standard Actuator

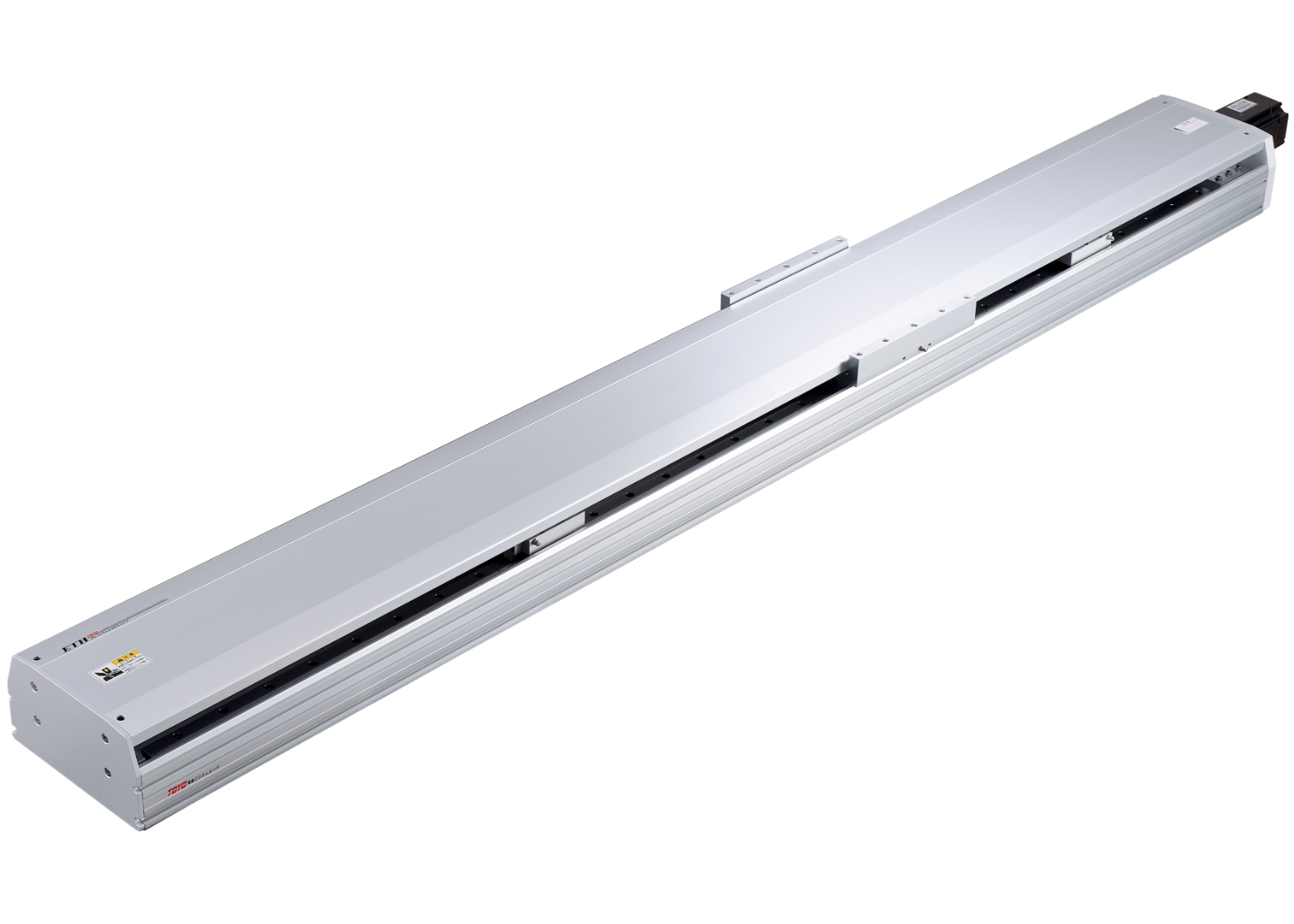

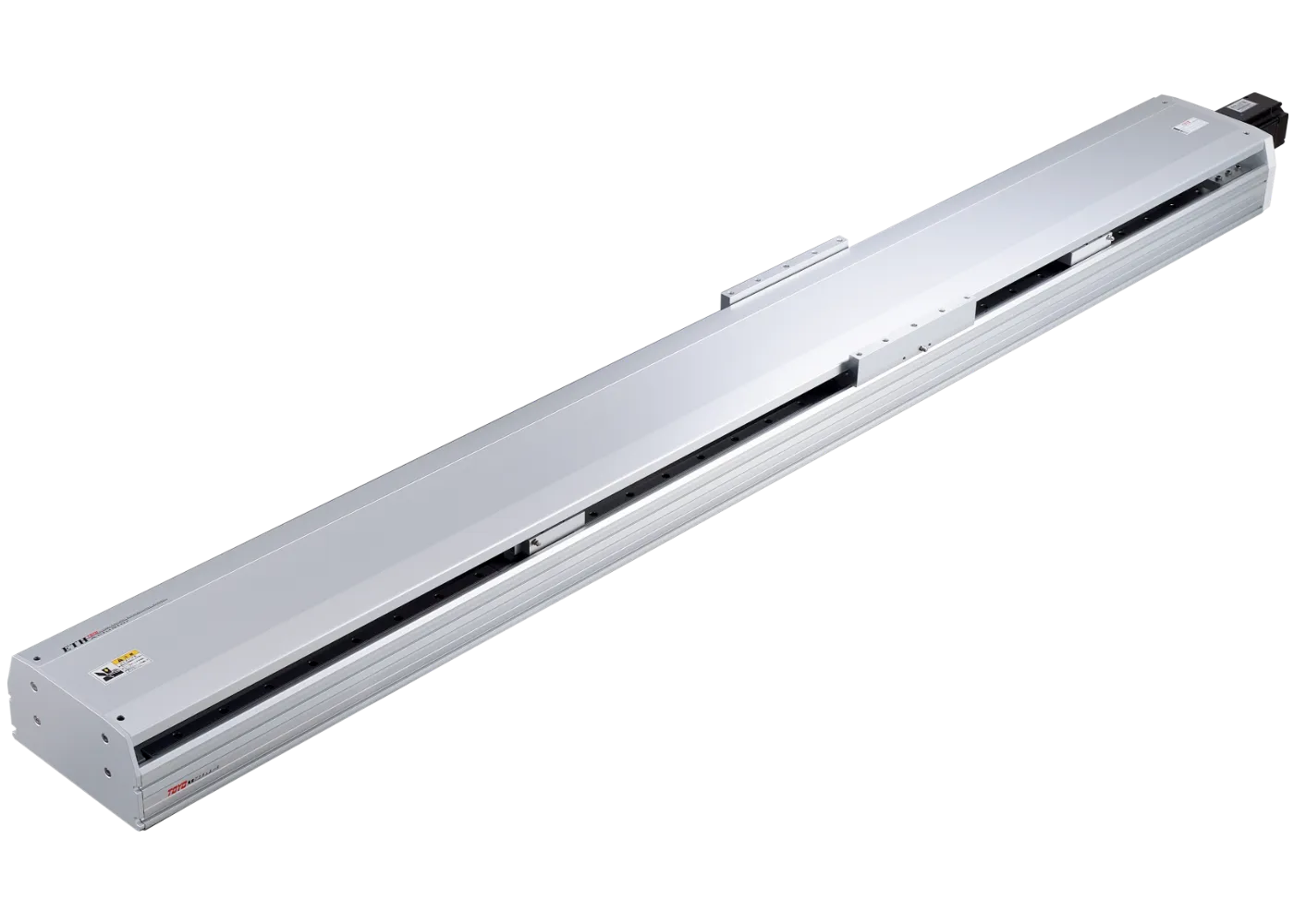

ETH22 Extended Length Actuator
ETH Series
ETH Series Standard Actuator

ETH Series

Standard Ball Screw Actuator for High-Precision Industrial Automation

Standard Ball Screw Actuator for High-Precision Industrial Automation Download native CAD models and request a technical quote for the ETH Series series today.

Get Pricing CAD Models

ETH Series: Standard Ball Screw Actuators

Reliable Precision for Modern Manufacturing

The TOYO ETH Series is engineered to provide a robust and versatile solution for high-precision linear motion. Utilizing proven ball screw technology, these actuators are ideal for applications requiring consistent positioning accuracy and long-term durability.

Product Lifecycle Note

The ETH Series is a mature product line approaching end-of-life (EOL). For new projects and high-performance upgrades, we strongly recommend transitioning to the Next-Generation ETH2 Series. The ETH2 offers enhanced rigidity, higher speed ratings, and improved maintenance features for future-proof automation.

Key Performance Highlights

  • Precision Ball Screw Drive: Delivers smooth and accurate motion control for delicate assembly and positioning tasks.
  • Robust Construction: Designed to withstand the rigors of continuous industrial use, ensuring minimal downtime and maintenance.
  • Flexible Integration: Multiple frame sizes and mounting configurations allow the ETH series to be easily integrated into a wide variety of machine architectures.

Engineering Applications

  • Automated Assembly: Precise positioning of components in electronics and medical device manufacturing.
  • Semiconductor Handling: Reliable motion for wafer transport and inspection systems.
  • Packaging & Labeling: Consistent performance for high-speed labeling and case packing operations.

Technical Excellence & Benefits

Industrial Durability

Built for 24/7 operation in demanding industrial environments.

Versatile Mounting

Flexible integration options for various machine designs and orientations.

Precision Motion

High-quality ball screw components ensure consistent repeatability and long service life.

Optimized Thrust-to-Weight Ratio

The ETH Series features a specialized aluminum extrusion profile that maximizes axial thrust capacity while maintaining a lightweight form factor, reducing the inertia of the overall system and improving motor efficiency.

Explore Alternate Solutions

Compare the ETH Series with similar high-performance series in our portfolio.

ETH2 Series
ETH2 Series

Ball Screw Actuator-Slider Type

Sizes
ETH2-14 ETH2-14D ETH2-17 ETH2-17D ETH2-22 ETH2-22D ETH2-30 ETH2-30D
Explore Series
ECH Series
ECH Series

Clean Room Ball Screw Actuator

Sizes
ECH14 ECH17 ECH22 ECH17M ECH22M
Explore Series
ETB Series
ETB Series

Standard Belt Actuator (High Speed)

Sizes
ETB14M ETB17M ETB22M
Explore Series

Mechanical Specifications

Specification ETH13 ETH14 ETH17 / 17M ETH22 / 22M
Product Size (W x H mm) 135 x 78 135 x 78 170 x 97 220 x 122
Repeatability (µm) ±5 ±5 ±5 ±5
Maximum Payload (kg)(1) 740 1200 1875 2585
Maximum Thrust (N)(1) coming soon coming soon coming soon coming soon
Maximum Travel (mm) 1050 1050 1250
2200 (M)		 1500
2400 (M)
Maximum Speed (mm/s) 1920 1920 2400 2400
Maximum Acceleration (G) 1 1 1 1
Operating Temperature (°C)(2) 0 - 40 0 - 40 0 - 40 0 - 40

1 Maximum payload and thrust are specified based on an L10 life rating. For the load specified, the life is expected to be 1000km. To calculate life for your application specifically, please contact us.

2 For extreme temperatures outside of this range, special greases are required.

Actuator Stroke / Travel Specifications

Specification 50
(mm)		 100
(mm)		 150
(mm)		 200
(mm)		 250
(mm)		 300
(mm)		 350
(mm)		 400
(mm)		 450
(mm)		 500
(mm)		 550
(mm)		 600
(mm)		 650
(mm)		 700
(mm)		 750
(mm)		 800
(mm)		 850
(mm)		 900
(mm)		 950
(mm)		 1000
(mm)		 1050
(mm)		 1100
(mm)		 1150
(mm)		 1200
(mm)		 1250
(mm)		 1300
(mm)		 1350
(mm)		 1400
(mm)		 1450
(mm)		 1500
(mm)		 1550
(mm)		 1600
(mm)		 1650
(mm)		 1700
(mm)		 1750
(mm)		 1800
(mm)		 1850
(mm)		 1900
(mm)		 1950
(mm)		 2000
(mm)		 2050
(mm)		 2100
(mm)		 2150
(mm)		 2200
(mm)		 2250
(mm)		 2300
(mm)		 2350
(mm)		 2400
(mm)
ETH13 Weight (kg) 7.4 7.96 8.52 9.08 9.64 10.2 10.76 11.32 11.88 12.44 13 13.56 14.12 14.68 15.24 15.8 16.36 16.92 17.48 18.04 18.6 Not Available
ETH13-L5 Critical Speed (mm/s) 300 267 250 225 200 175 150 125 100 Not Available
ETH13-L10 Critical Speed (mm/s) 600 533 500 450 400 350 300 250 200 Not Available
ETH13-L20 Critical Speed (mm/s) 1200 1067 1000 900 800 700 600 500 400 Not Available
ETH13-L32 Critical Speed (mm/s) 1920 1707 1600 1440 1280 1120 960 800 640 Not Available
ETH14 Weight (kg) 8.75 9.3 9.85 10.4 10.95 11.5 12.05 12.6 13.15 13.7 14.25 14.8 15.35 15.9 16.45 17 17.55 18.1 18.65 19.2 19.75 Not Available
ETH14-L5 Critical Speed (mm/s) 300 275 250 225 200 175 150 125 100 Not Available
ETH14-L10 Critical Speed (mm/s) 600 550 500 450 400 350 300 250 200 Not Available
ETH14-L20 Critical Speed (mm/s) 1200 1100 1000 900 800 700 600 500 400 Not Available
ETH14-L32 Critical Speed (mm/s) 1920 1760 1600 1440 1280 1120 960 800 640 Not Available
ETH17 Weight (kg) 9.61 10.2 10.79 11.57 12.34 13.11 13.88 14.65 15.42 16.19 16.96 17.73 18.5 19.28 20.05 20.82 21.59 22.36 23.13 23.9 24.67 25.44 26.21 26.98 27.75 Not Available
ETH17M Weight (kg) Not Available 28.99 29.67 30.35 31.03 31.71 32.39 33.07 33.75 34.43 35.11 35.79 36.47 37.15 37.83 38.51 39.19 39.87 40.55 41.23 41.91 42.59 43.27 43.95 44.63 45.31 45.99 46.67 47.35 48.03 Not Available
ETH17-L5 Critical Speed (mm/s) 300 267 250 225 200 175 150 Not Available
ETH17-L10 Critical Speed (mm/s) 600 533 500 450 400 350 300 Not Available
ETH17-L20 Critical Speed (mm/s) 1200 1067 1000 900 800 700 600 Not Available
ETH17-L40 Critical Speed (mm/s) 2400 2133 2000 1800 1600 1400 1200 Not Available
ETH17M-L5 Critical Speed (mm/s) Not Available 300 283 267 250 233 217 200 183 175 150 125 Not Available
ETH17M-L10 Critical Speed (mm/s) Not Available 600 567 533 500 467 433 400 367 350 300 250 Not Available
ETH17M-L20 Critical Speed (mm/s) Not Available 1200 1133 1067 1000 933 867 800 733 700 600 500 Not Available
ETH17M-L32 Critical Speed (mm/s) Not Available 1920 1813 1707 1600 1493 1387 1280 1173 1120 960 800 Not Available
ETH22 Weight (kg) 25.4 26.86 28.32 29.78 31.24 32.7 34.16 35.62 37.08 38.54 40 41.46 42.92 44.38 45.84 47.3 48.76 50.22 51.68 53.14 54.6 56.06 57.52 58.98 60.44 61.9 63.36 64.82 66.28 67.74 Not Available
ETH22M Weight (kg) Not Available 53.91 55.27 56.63 57.99 59.35 60.71 62.07 63.43 64.79 66.15 67.51 68.87 70.23 71.59 72.95 74.31 75.67 77.03 78.39 79.75 81.11 82.47 83.83 85.19 86.55 87.91 89.27 90.63 91.99 93.35 94.71 96.07
ETH22-L5 Critical Speed (mm/s) 300 275 250 225 200 175 150 125 100 Not Available
ETH22-L10 Critical Speed (mm/s) 600 550 500 450 400 350 300 250 200 Not Available
ETH22-L25 Critical Speed (mm/s) 1500 1375 1250 1125 1000 875 750 625 500 Not Available
ETH22-L40 Critical Speed (mm/s) 2400 2200 2000 1800 1600 1400 1200 1000 800 600 Not Available
ETH22M-L5 Critical Speed (mm/s) Not Available 300 283 267 250 233 217 200 183 175 150 125
ETH22M-L10 Critical Speed (mm/s) Not Available 600 567 533 500 467 433 400 367 350 300 250
ETH22M-L20 Critical Speed (mm/s) Not Available 1200 1133 1067 1000 933 867 800 733 700 600 500
ETH22M-L32 Critical Speed (mm/s) Not Available 1920 1813 1707 1600 1493 1387 1280 1173 1120 960 800
Swipe horizontally to view full specifications.
ETH Series Technical Catalog

PDF Download - Includes dimensional drawings and selection guides.

Download Catalog
CAD Design

Native CAD Models & 3D Configurations

Access the TOYO CAD Portal →

Seamless Integration into Your Design Environment

To ensure the highest level of design accuracy and reduce your engineering lead times, TOYO Robotics Americas provides a comprehensive library of native CAD models. Hosted through our CAD Community Portal, these models are not generic placeholders; they are highly detailed, configurable files designed to drop directly into your assembly.

  • Native Format Support: Download models in your preferred native format, including SolidWorks, Autodesk Inventor, Pro/E (Creo), Siemens NX, and CATIA, as well as universal formats like STEP, IGES, and Parasolid.
  • Dynamic Configuration: Adjust stroke lengths and motor orientations in real-time to generate a model that matches your exact specification.
  • Instant Access: Register once to unlock unlimited downloads, ensuring you have the most up-to-date technical data for your project milestones.
Autodesk
Pro/E
CATIA

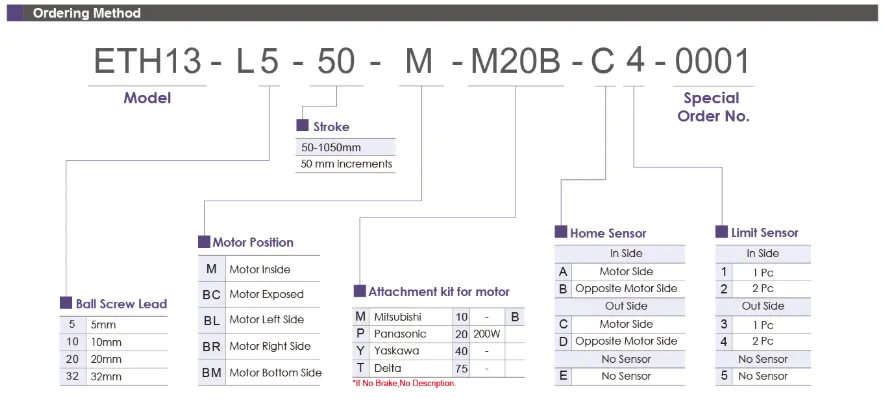

Ordering Information

Select a size to view the specific ordering code configuration:

Ordering Code

Contact our application engineers to generate your exact part number or for complex multi-axis configurations.

Request Configuration Support
