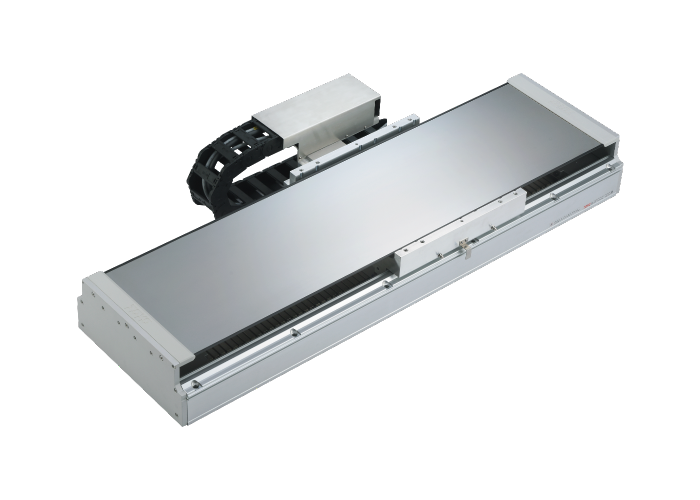

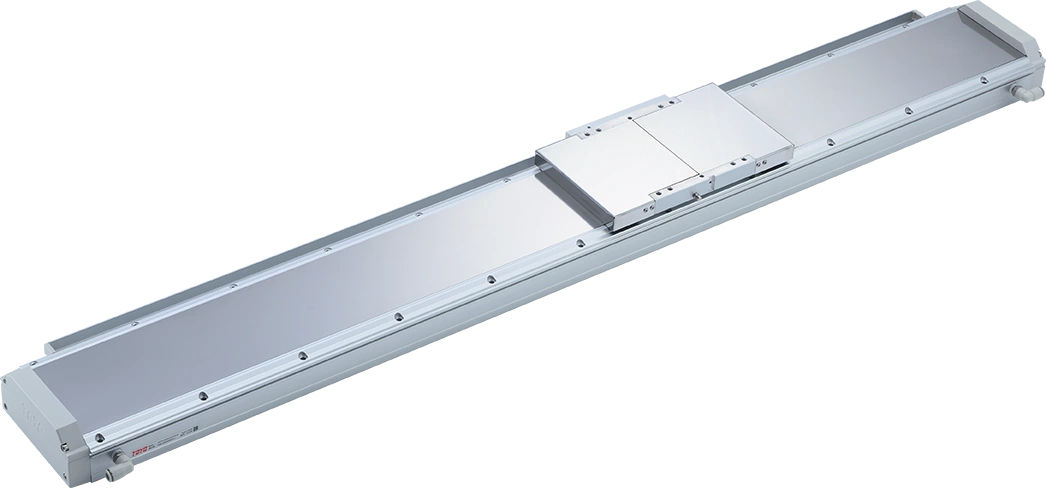

Next-Generation High-Force Cleanroom Motion

The LCF3 Series is the cleanroom-certified evolution of TOYO’s LTF3 high-force iron core linear motors. Re-engineered to surpass the LCF2 in both thrust density and particle containment efficiency, the LCF3 is the definitive choice for next-generation semiconductor fabrication and sterile medical manufacturing.

Superior Sterile Engineering

The LCF3 Series represents the absolute peak of TOYO's cleanroom technology. By utilizing the advanced iron core architecture of the LTF3, the LCF3 achieves massive thrust levels while maintaining an ISO Class 4 (Class 10/100) environment. The integrated stainless steel strip seals and dual vacuum suction ports work in tandem to capture and extract 100% of internal particulates, ensuring that even under high-load, high-speed duty cycles, your cleanroom integrity remains absolute.

Performance Highlights

• Enhanced Particle Containment: Next-gen vacuum logic and improved strip seal durability ensure ISO Class 4 compliance for long-term operations.
• Massive Horizontal Throughput: Capable of handling payloads up to 250kg in a sterile environment, eliminating the need for bulky, non-cleanroom-rated standard actuators.
• 1-Micron Precision (±0.001mm): Equipped with high-resolution optical feedback for surgical accuracy across strokes up to 5 meters.
• Optimized Thermal Management: Improved rotor cooling allows for higher duty cycles without increasing the ambient temperature of the cleanroom cell.

Target Applications

• Semiconductor Fabrication: High-speed wafer handling, lithography inspection, and sterile IC assembly.
• Medical Device Assembly: Precision positioning for automated diagnostics and sterile surgical component manufacturing.
• Pharmaceutical Packaging: High-speed sorting and sterile transport of high-volume medical products.
• Flat Panel Display: Large-format glass handling and inspection in ultra-clean manufacturing cells.
