Overview

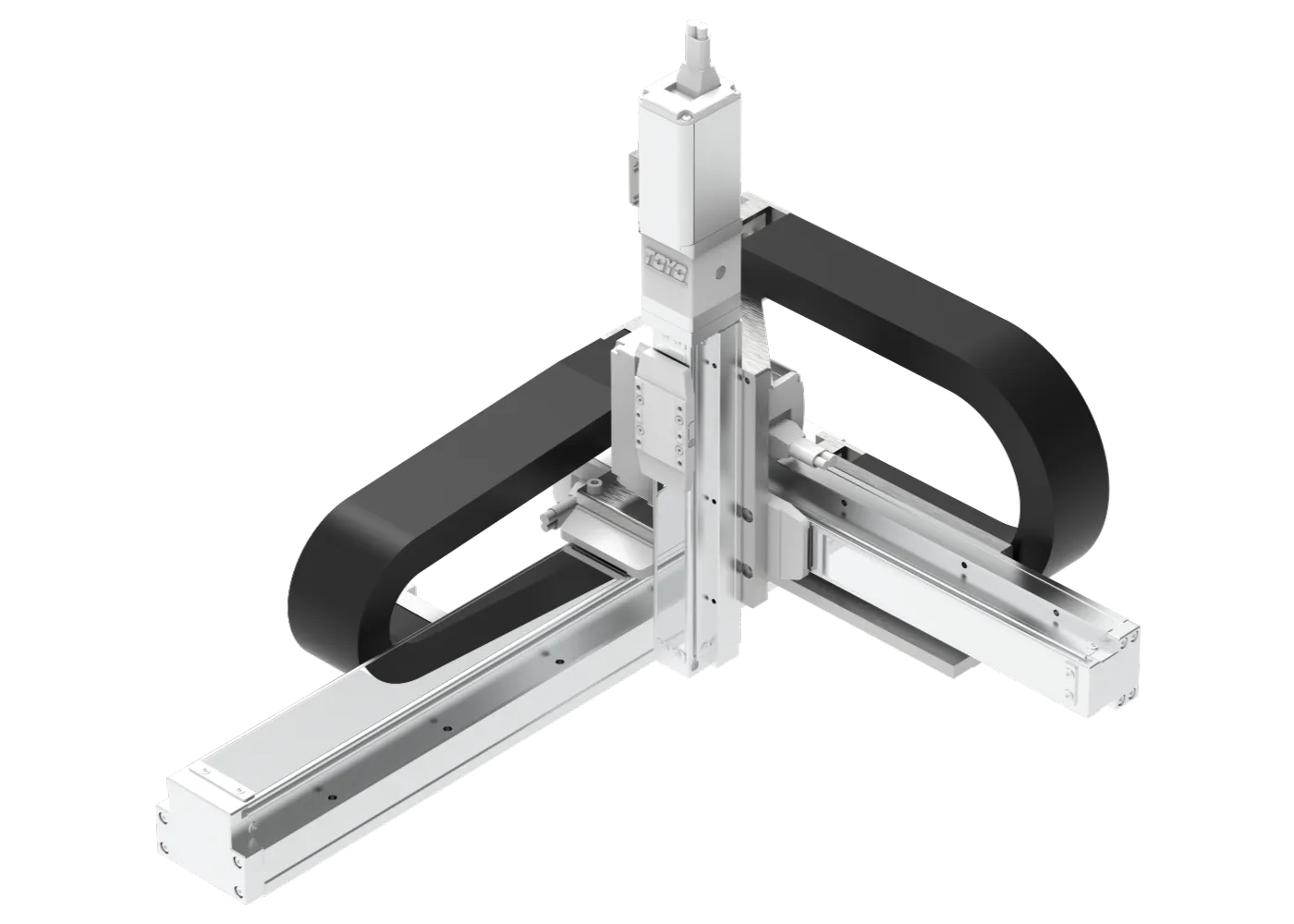

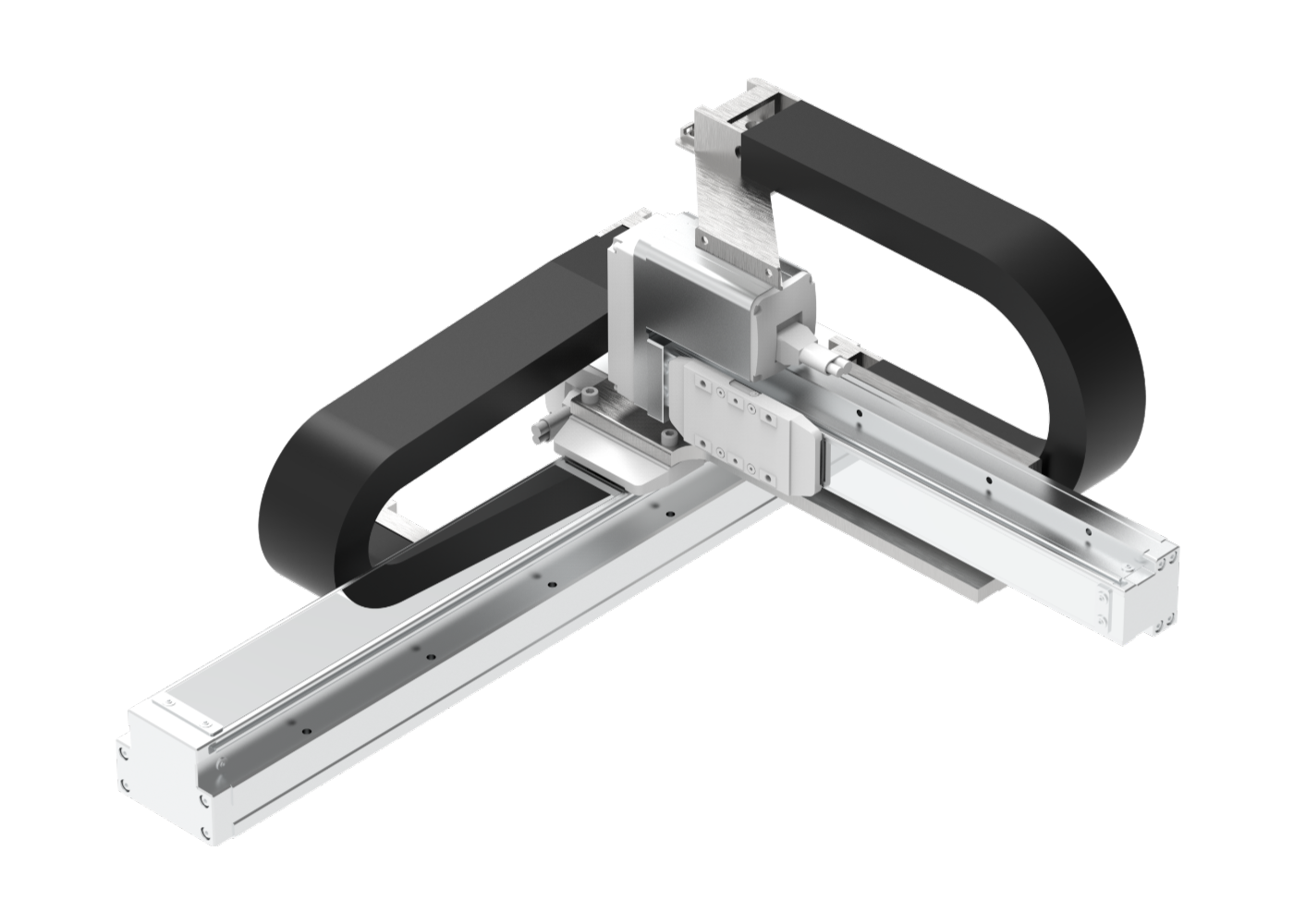

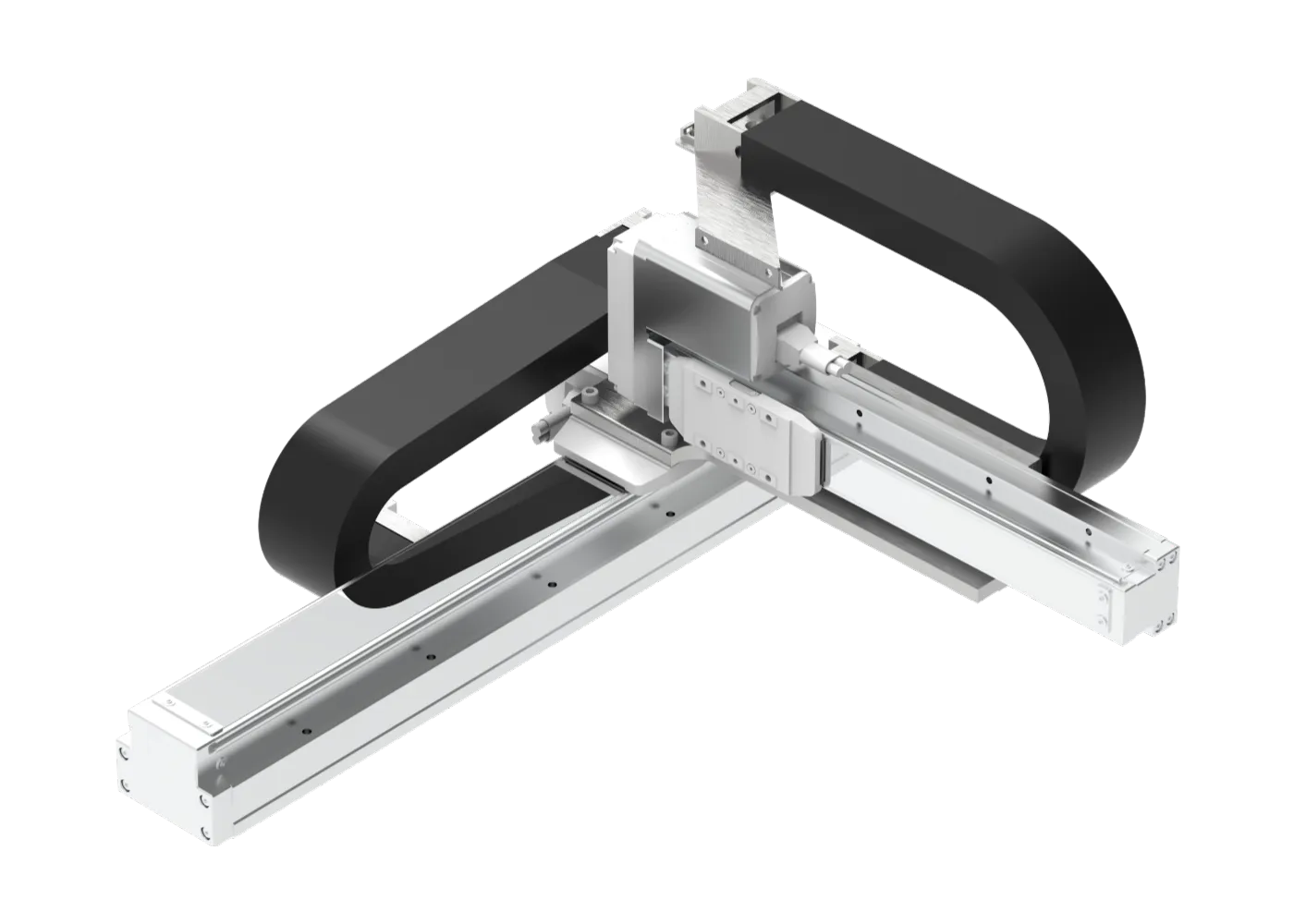

The XYCGT Series provides a robust, pre-engineered Cartesian gantry solution for applications that demand high structural rigidity and deterministic motion control. Built on professional-grade ball screws and precision closed-loop stepper motors, the XYCGT eliminates step loss and ensures strict ±0.01 mm repeatability across all axes. Available in both 2-axis (XY) and 3-axis (XYZ) configurations with X-axis travel up to 1,100mm, it is designed to accelerate deployment in complex fluid dispensing, CNC routing, and automated assembly operations.

Key Benefits

• Stable Gantry Architecture: The built-in linear guideway design ensures the highest level of structural stiffness, minimizing vibrations and deflections that can compromise product quality in cantilevered systems.
• Deterministic Closed-Loop Control: Continuous encoder feedback on all axes actively monitors and corrects positional errors in real-time, providing absolute reliability even during high-cadence production runs.
• Advanced Motion Profiles: Fully supports complex Continuous Path (CP) generation, including 3D linear and arc interpolation, critical for applying sealants and adhesives without corner pooling or trailing.
• Integrated Workcell Solution: Out-of-the-box compatibility with the TSC400 motion controller enables rapid PC-based teaching, 2D CAD-to-path conversion, and straightforward PLC integration (100 sets / 1000 steps).

Target Applications

• Automated Dispensing: High-precision, Continuous Path application of adhesives, thermal pastes, and sealants over large, complex PCB topographies.
• Light Machining & Routing: High-rigidity platform suitable for desktop-scale CNC routing and precise material removal tasks.
• Automated Soldering: Repeatable, heat-controlled soldering operations requiring stable 3D arc interpolation.
• Automated Assembly: Reliable, multi-point positioning for component picking, pressing, and high-throughput sorting.
