Industry Applications

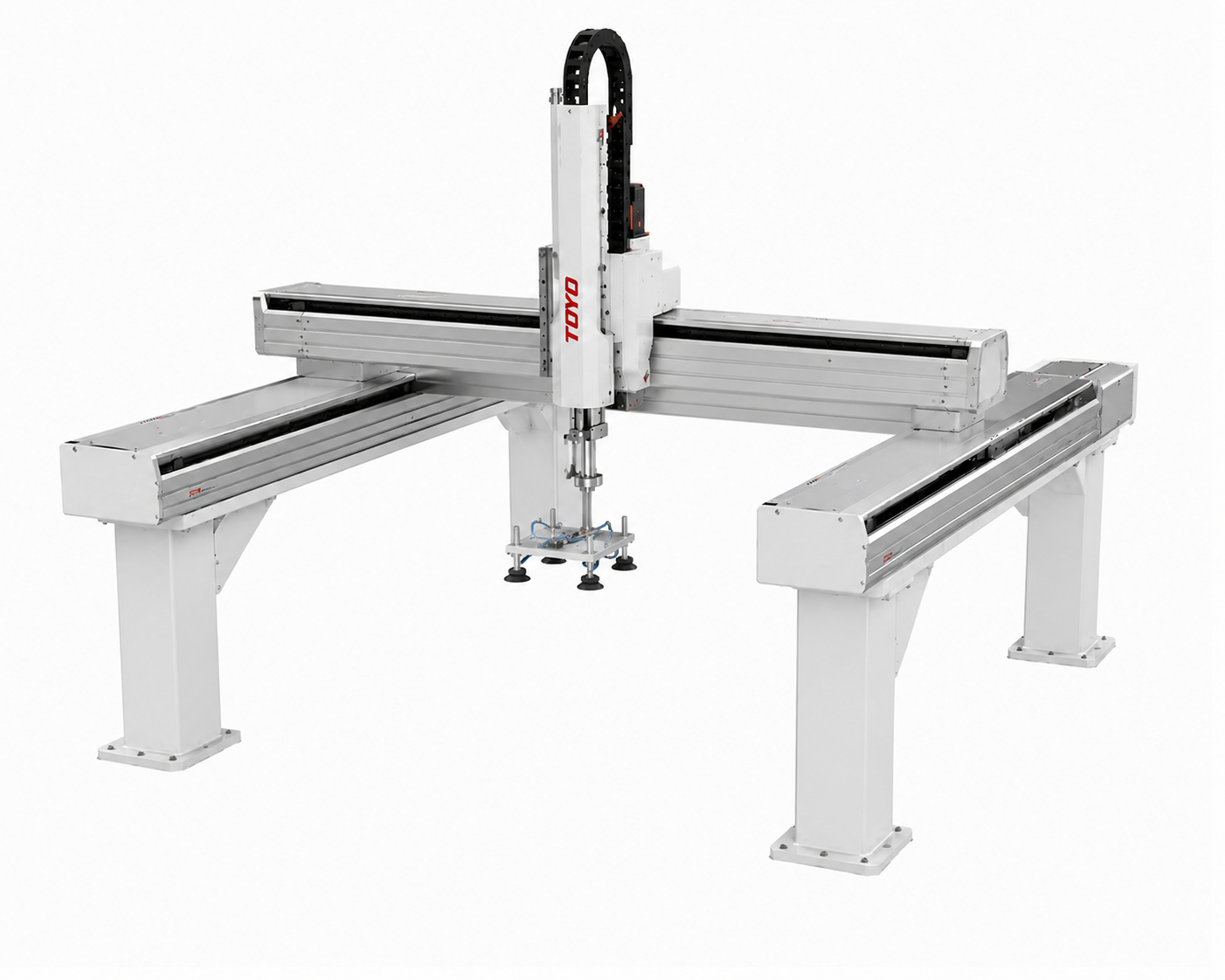

Palletizing & Depalletizing
High-volume end-of-line operations require robust, long-stroke motion to manage varying stack heights and heavy payloads.
Multi-axis gantry systems and heavy-duty actuators with integrated collision detection.
- Extended Reach: Up to 5000mm stroke for large pallet footprints.
- Payload Stability: High-rigidity guides to prevent deflection under heavy loads.
- System Sync: Seamless integration with PLC and safety controllers.

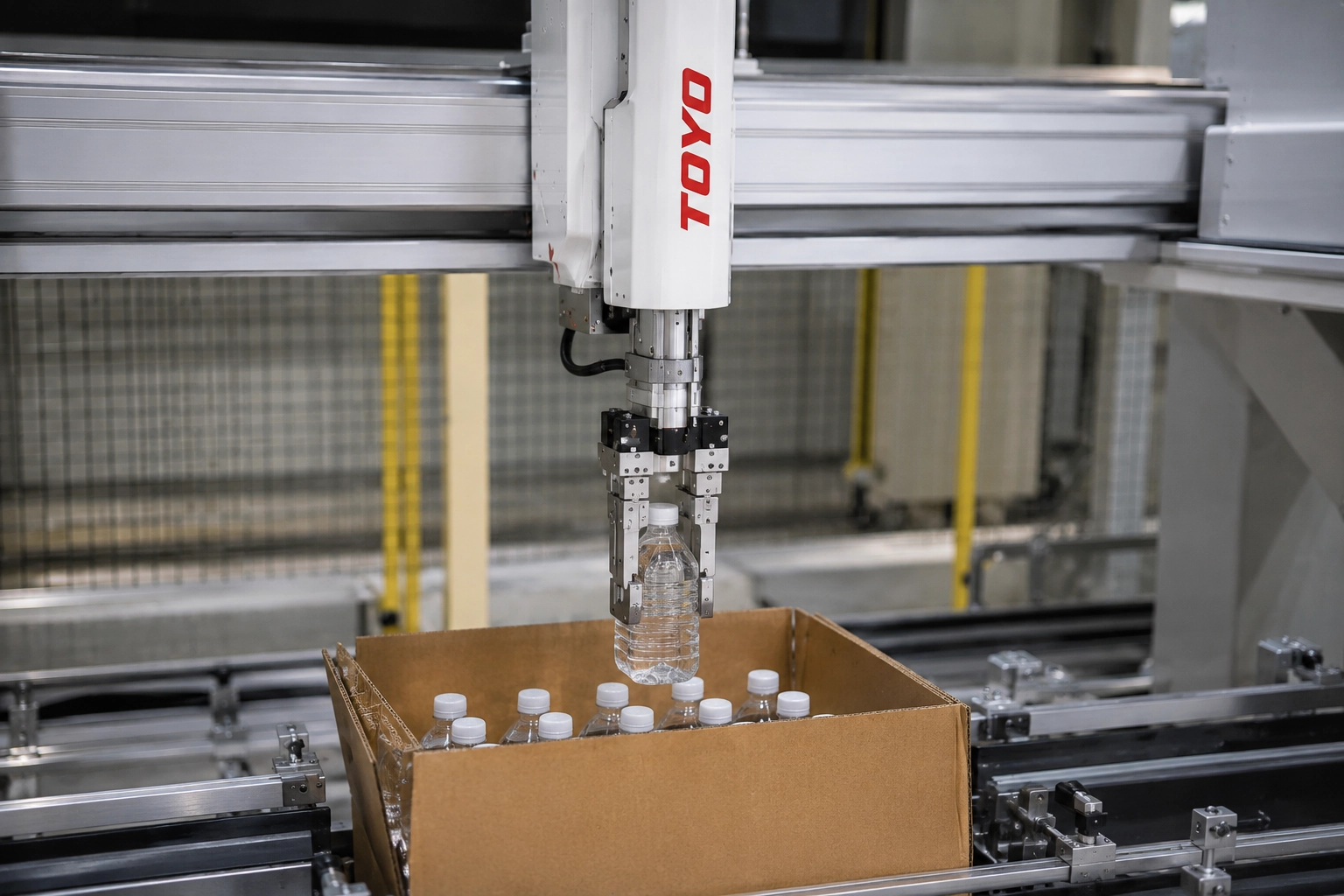

Case Packing
Rapid assembly and filling of cases require extremely fast cycle times and precise positioning to prevent product damage.
High-speed belt drives and compact linear actuators for rapid pick-and-place.
- Fast Cycles: Up to 5m/s velocity for high-throughput lines.
- Compact Design: Small frame sizes to fit within existing machine footprints.
- Durability: Engineered for millions of maintenance-free cycles.

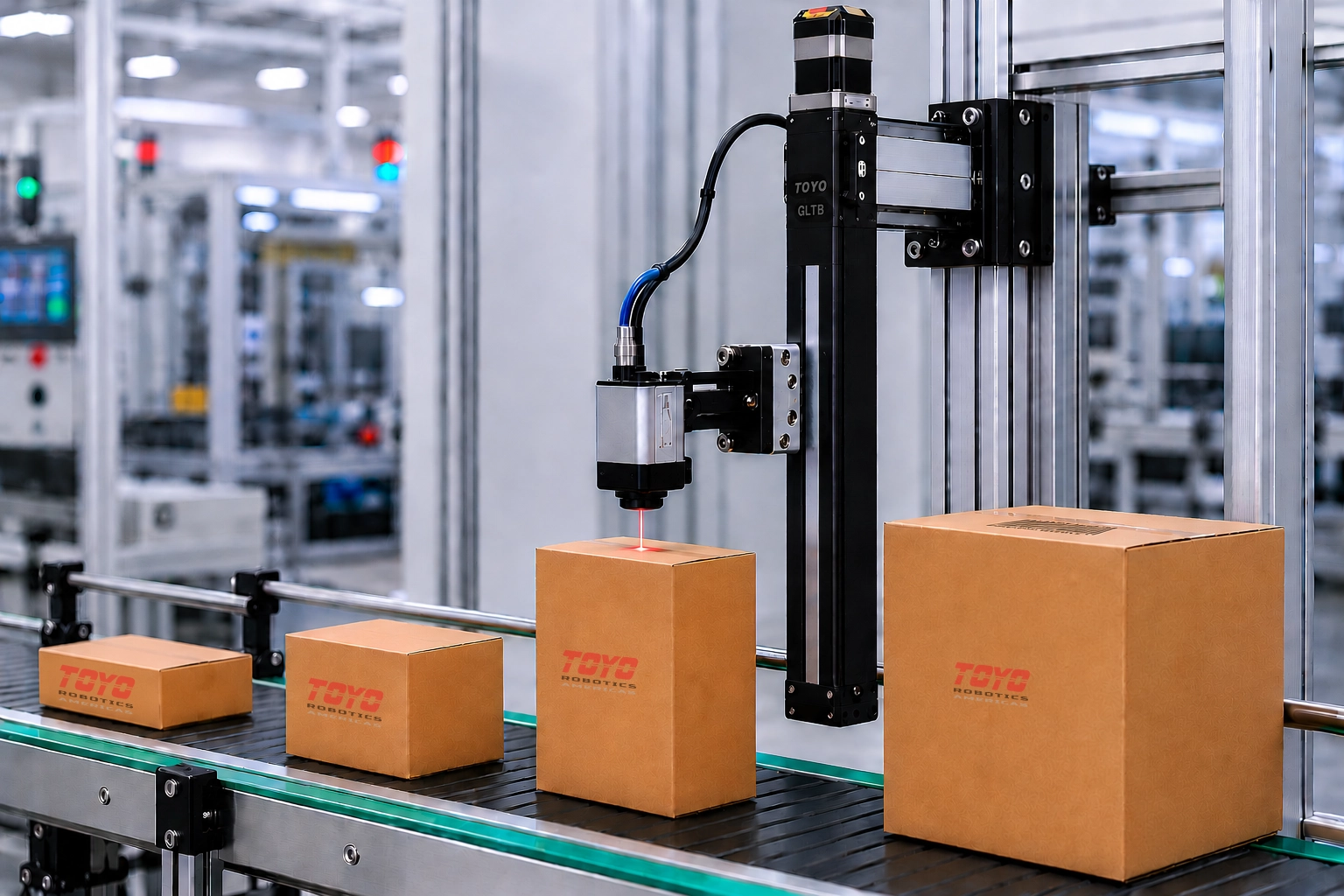

Labeling & Coding
Applying labels or inkjet codes to moving products requires jitter-free motion and exact velocity matching.
Direct-drive linear motors and high-resolution encoders for smooth, continuous motion.
- Zero Backlash: Direct-drive technology for absolute positioning accuracy.
- Velocity Matching: Constant-speed motion for consistent inkjet spacing.
- Quiet Operation: Low-noise bearings for laboratory and food-grade environments.

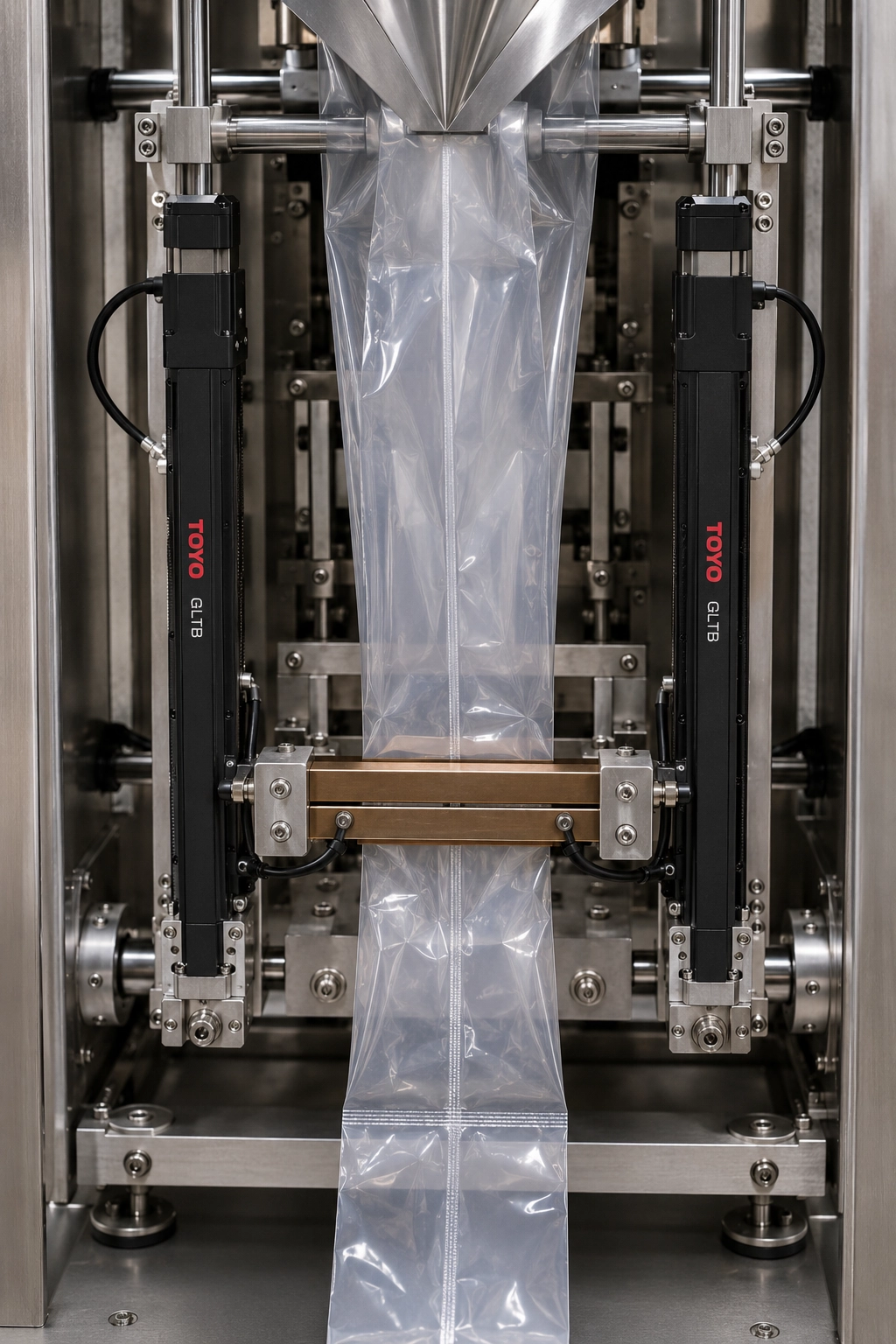

Form, Fill, & Seal
Maintaining airtight seal integrity at high cycle rates requires high-speed motion with precise, programmable force control.
AC Servo-driven electric cylinders replace pneumatic systems to provide consistent sealing pressure and high-acceleration pull-down.
- Programmable Sealing Force: Digitally adjustable thrust to ensure perfect seal integrity across varied film thicknesses.
- High-Cycle Durability: Robust ball-screw cylinders designed for continuous 24/7 reciprocating motion.
- Synchronized Logic: Seamlessly slave vertical fill cycles to horizontal sealing jaws for maximum throughput.

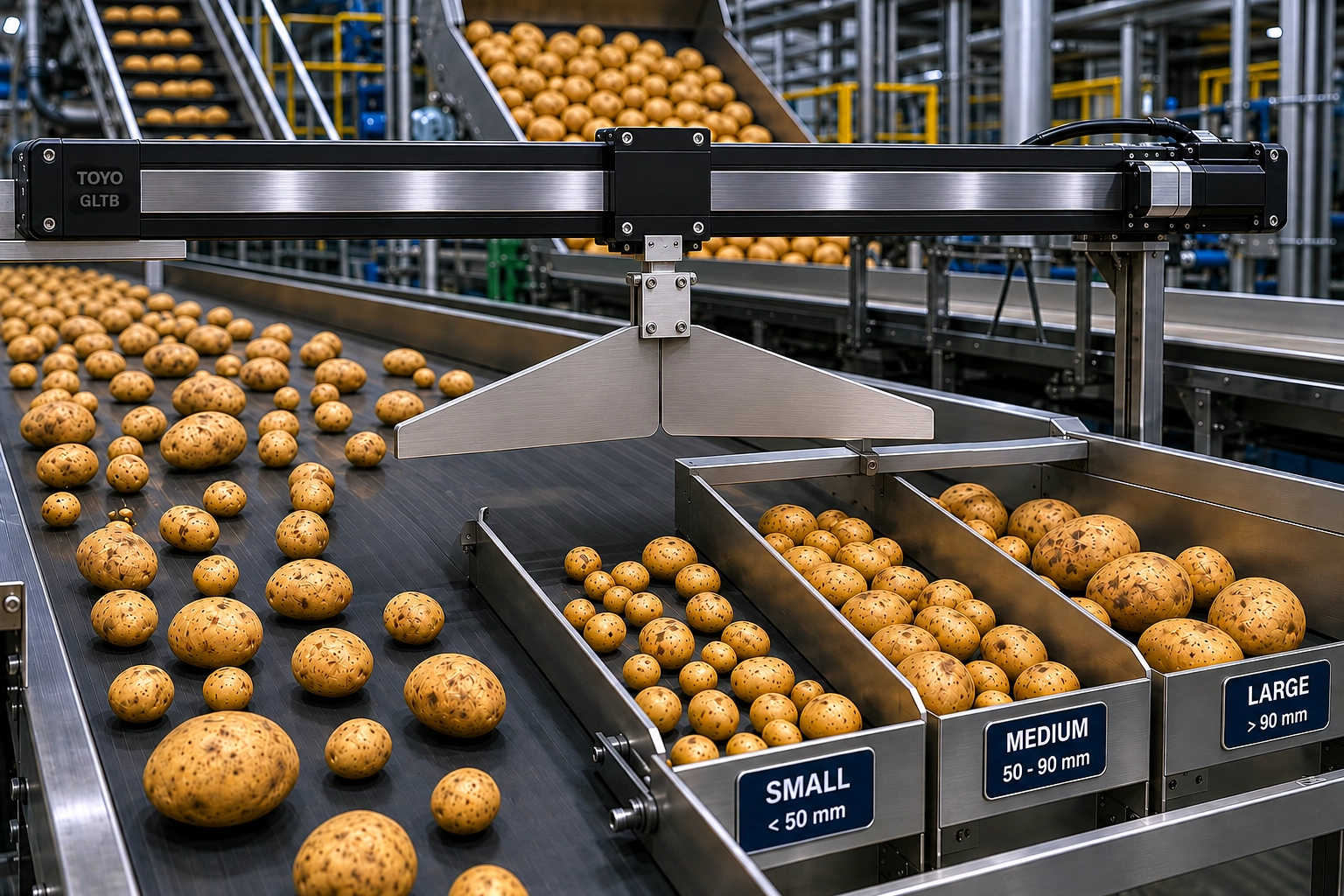

Diverting & Lane Adjustments
High-speed conveyor lines require dynamic diverting or lane switching to balance downstream loads or sort products by type without stopping the line.
Long-stroke belt-drive actuators provide the extreme velocity and reach needed for non-stop lane management.
- Extreme Velocity: 5000mm/s maximum speed for rapid diversion without impacting main line throughput.
- Multi-Lane Scaling: Stroke lengths up to 5000mm allow a single actuator to span and adjust multiple conveyor lanes.
- Debris Resistance: Sealed belt architectures prevent packaging dust and debris from fouling the internal drive mechanism.
