Overview

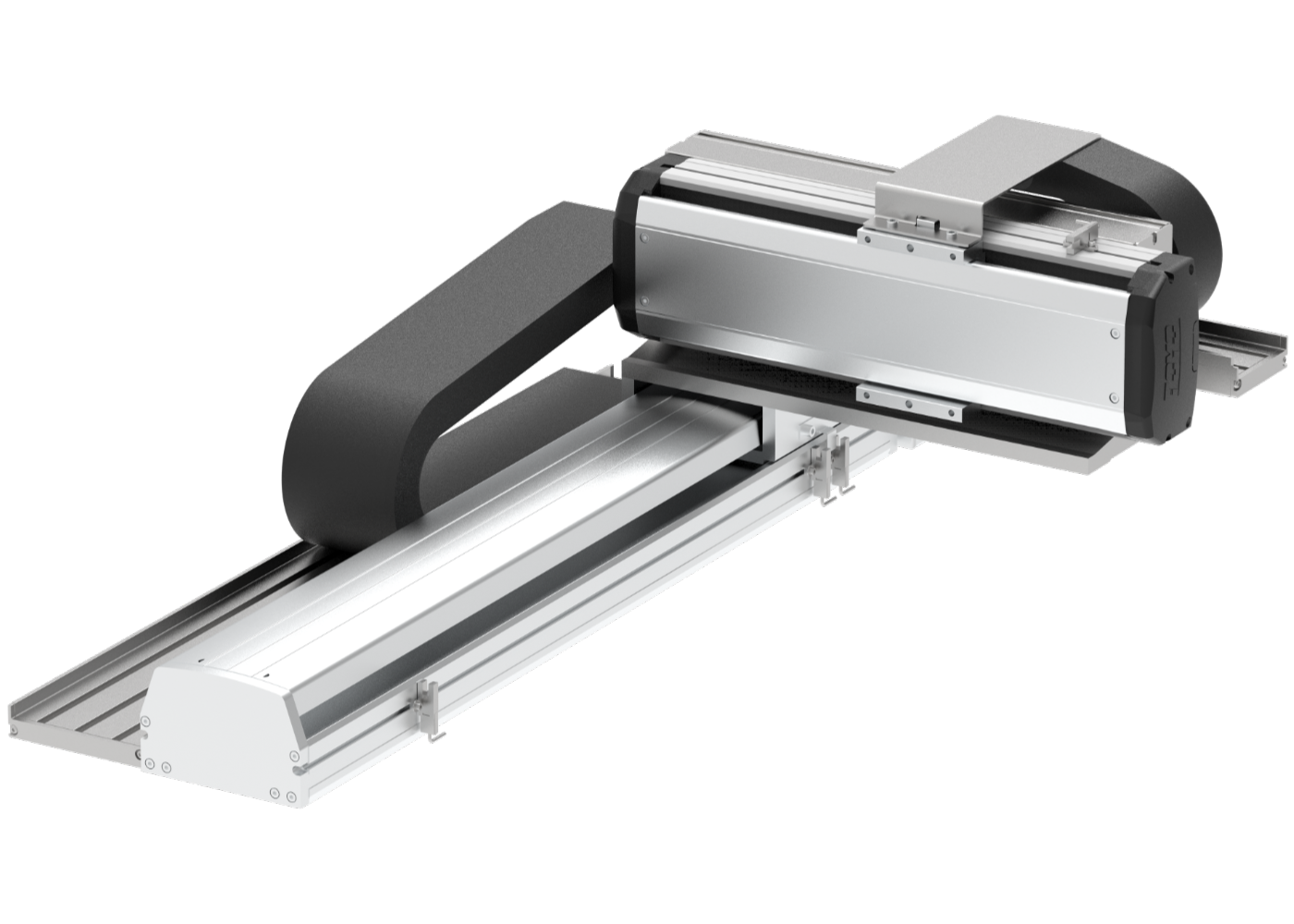

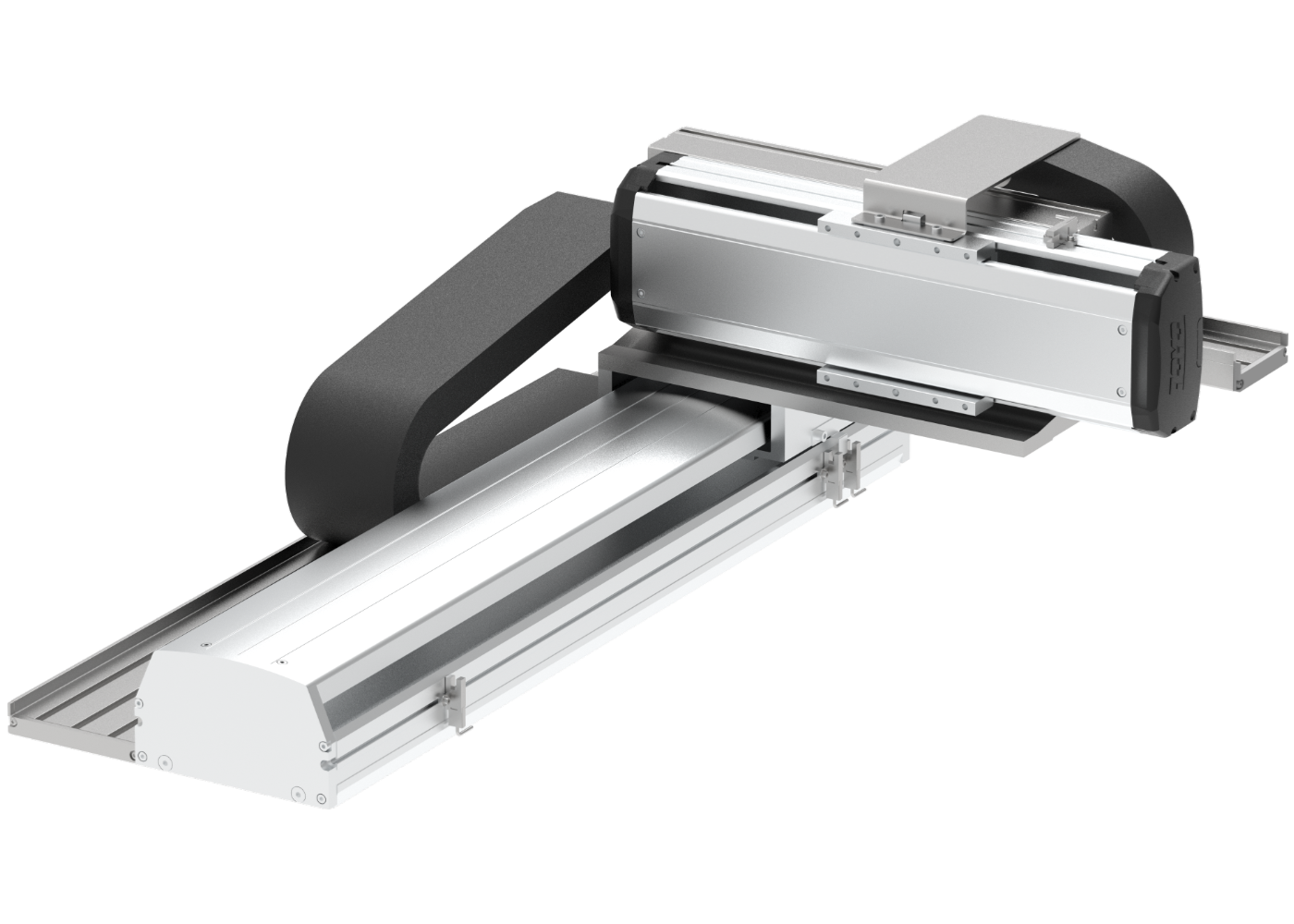

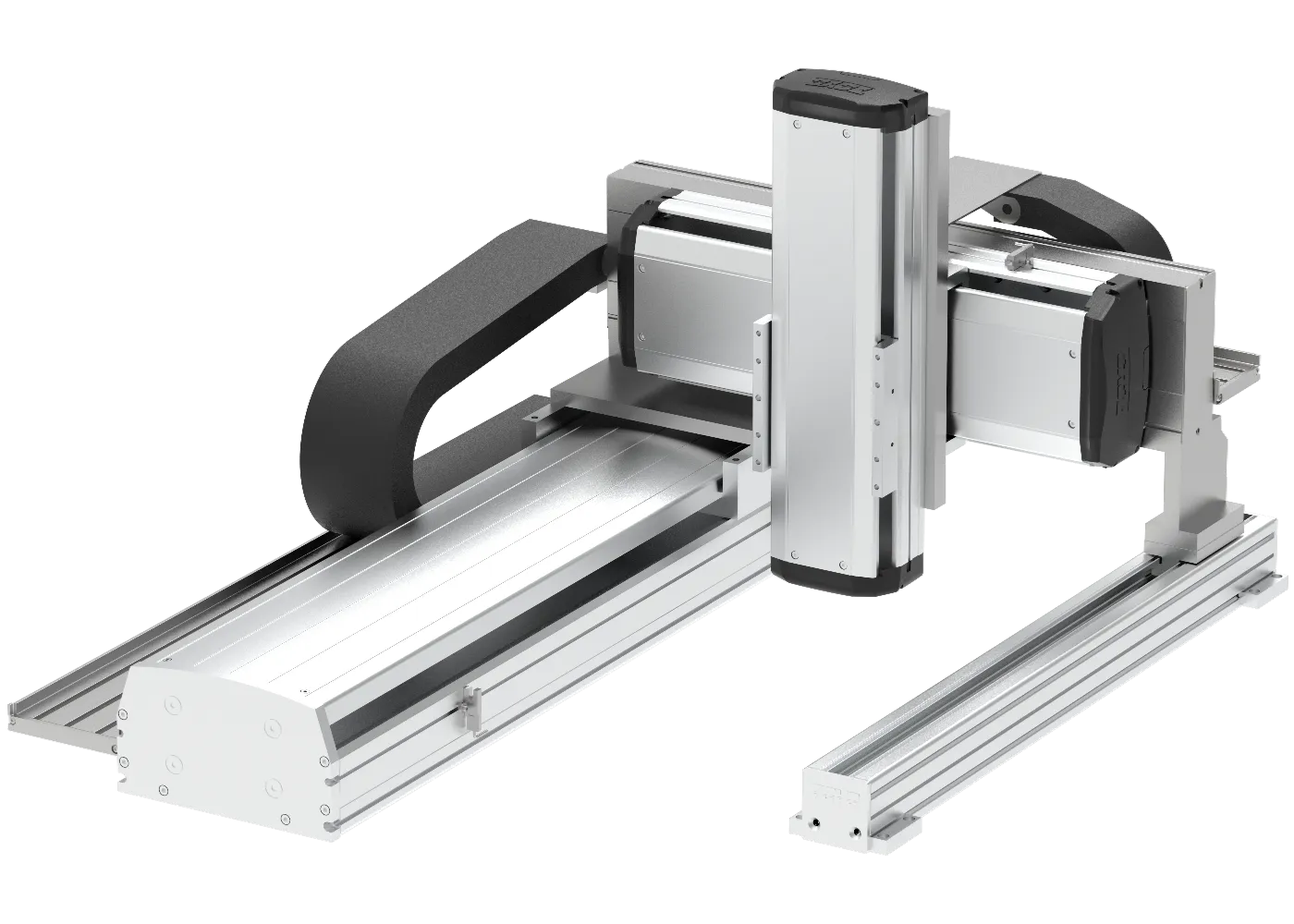

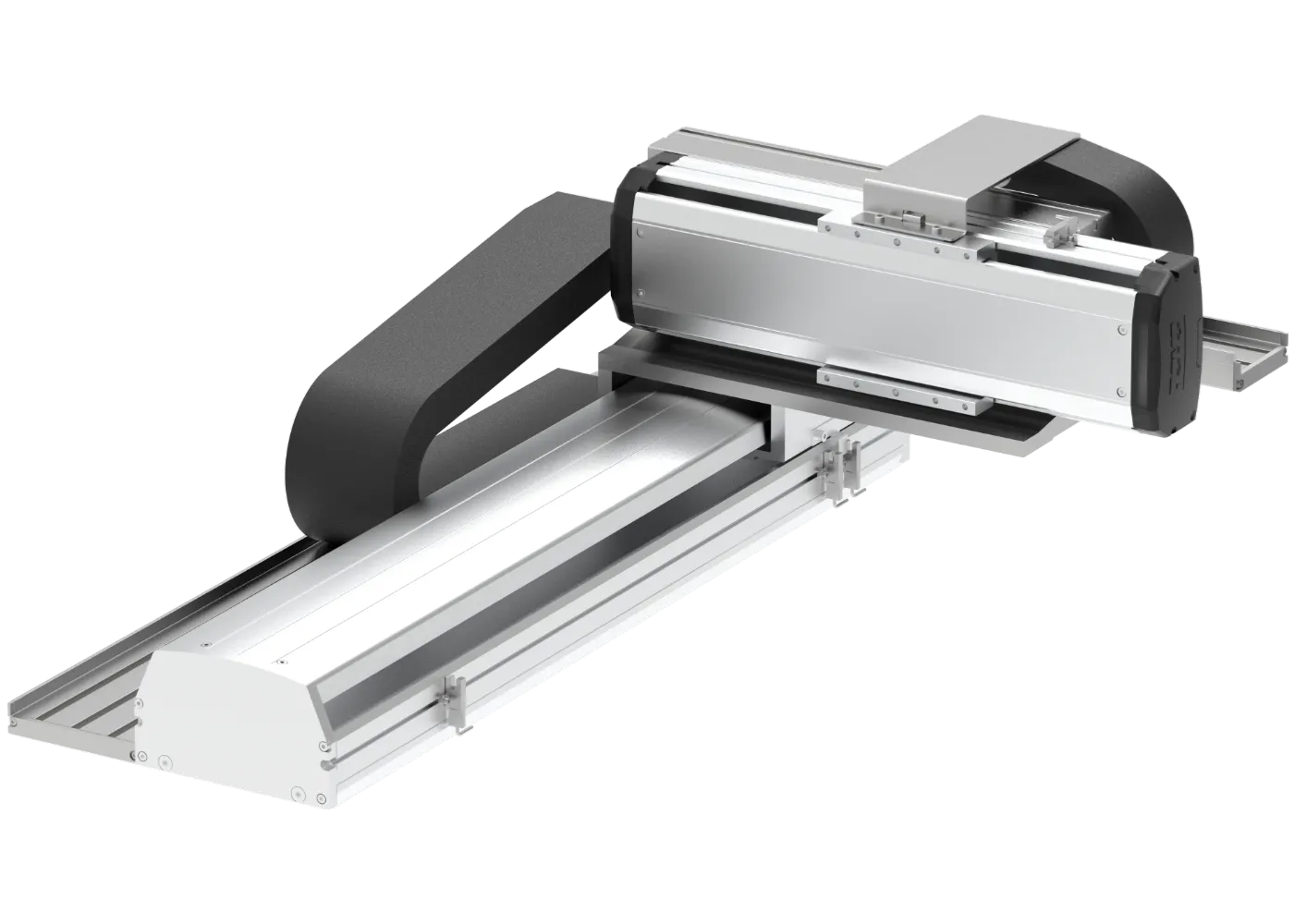

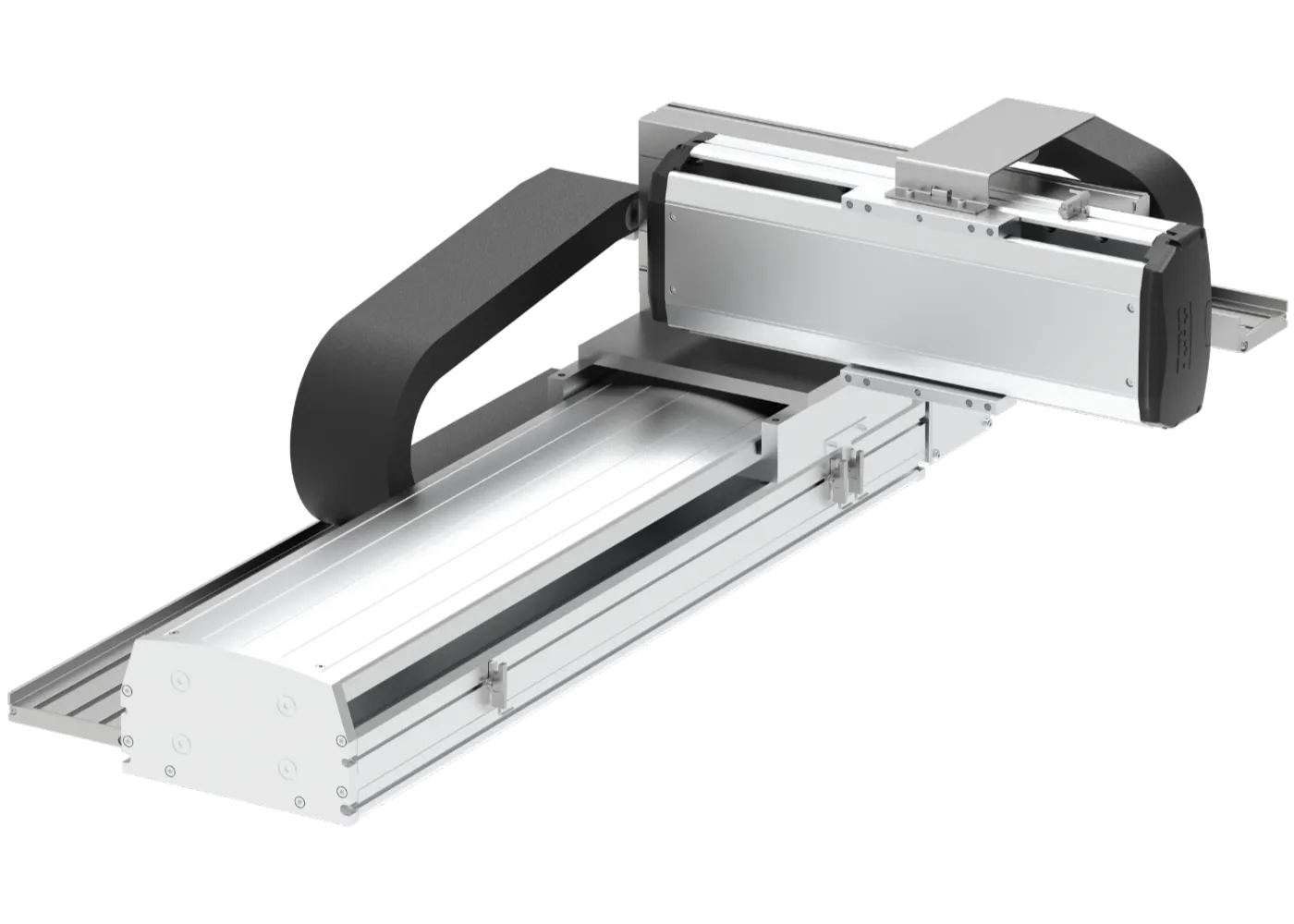

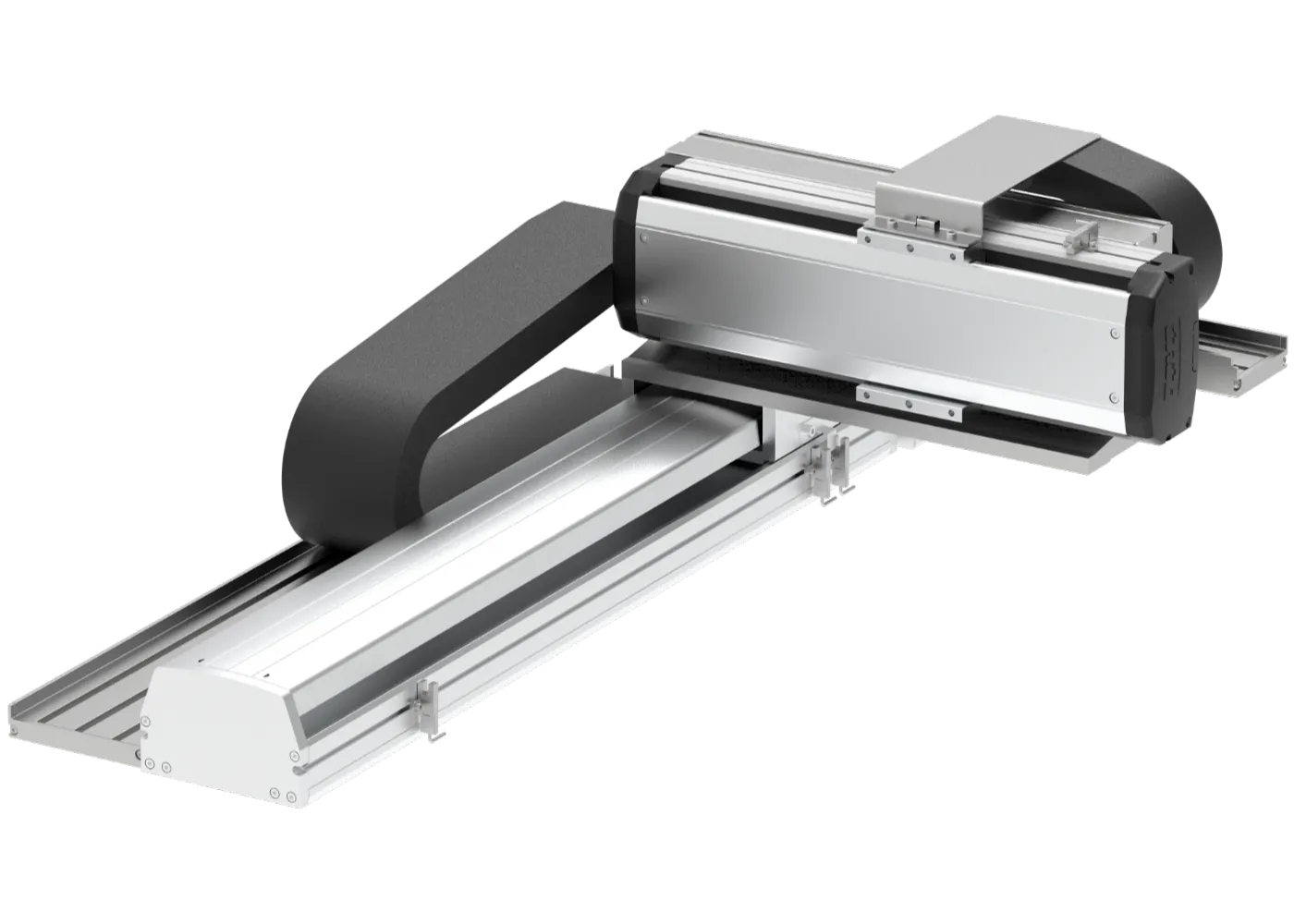

The XYTB Series brings the high-velocity capabilities of TOYO's precision ETB series belt-drive actuators to a pre-engineered multi-axis platform. Designed as a "Motor-Ready" system, it provides the robust mechanical framework required for rapid material handling while allowing engineers to specify and mount their own preferred motor technology. Whether for cost-effective steppers or high-response AC servos, the XYTB series offers a reliable, low-friction foundation for custom automation requiring long strokes and high speeds.

Key Benefits

• Control System Agnostic: Mount any NEMA or metric-framed motor, integrating the robot directly into your existing PLC or motion control architecture without proprietary constraints.
• Built on Proven ETB Mechanics: Leveraging the industrial-grade mechanics of the ETB series, the XYTB provides a durable and field-tested platform for multi-axis movement.
• Optimized for High Velocity: Precision belt drives allow for significantly faster point-to-point transit times across large work envelopes compared to traditional ball screw mechanics.
• Drastically Reduced Time-to-Market: Avoid the complexities of designing, sourcing, aligning, and testing custom multi-axis structures. The XYTB arrives pre-aligned and ready for motor installation.
• Reliable Repeatability: Achieves consistent positioning accuracy of ±0.04 mm, ensuring reliable performance in demanding pick-and-place or sorting operations.

Target Applications

• High-Speed Sorting & Packaging: Rapid, multi-point positioning for component picking and sorting on high-throughput conveyor lines.
• Custom Machine Building: Ideal for OEMs seeking a reliable, pre-engineered mechanical base that seamlessly accepts their standard control ecosystem.
• Automated Material Transfer: Efficient long-stroke movement of parts and assemblies between distant workstations.
• Automated Inspection: Fast sensor or camera positioning across large viewing areas for inline quality control.
