Overview

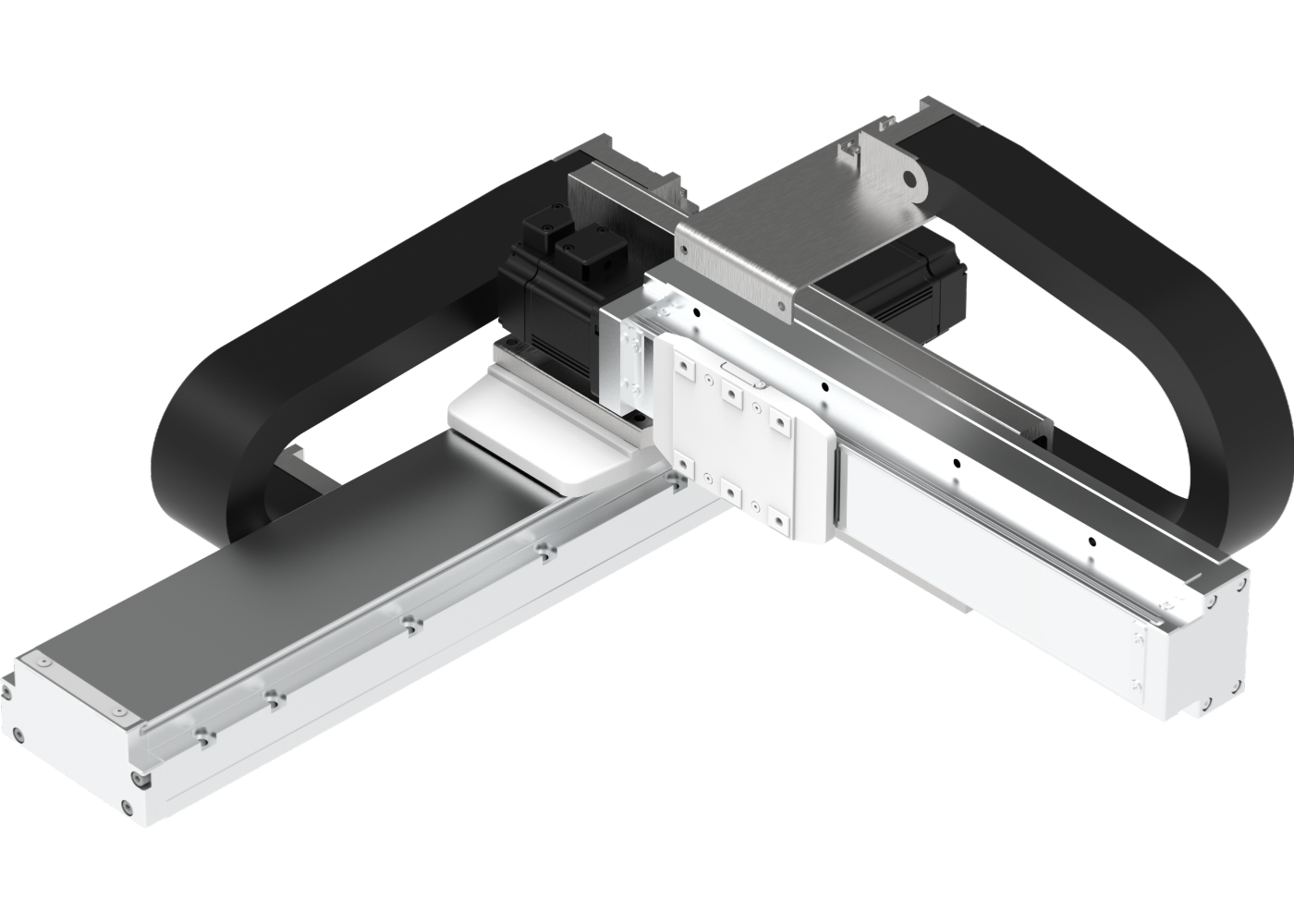

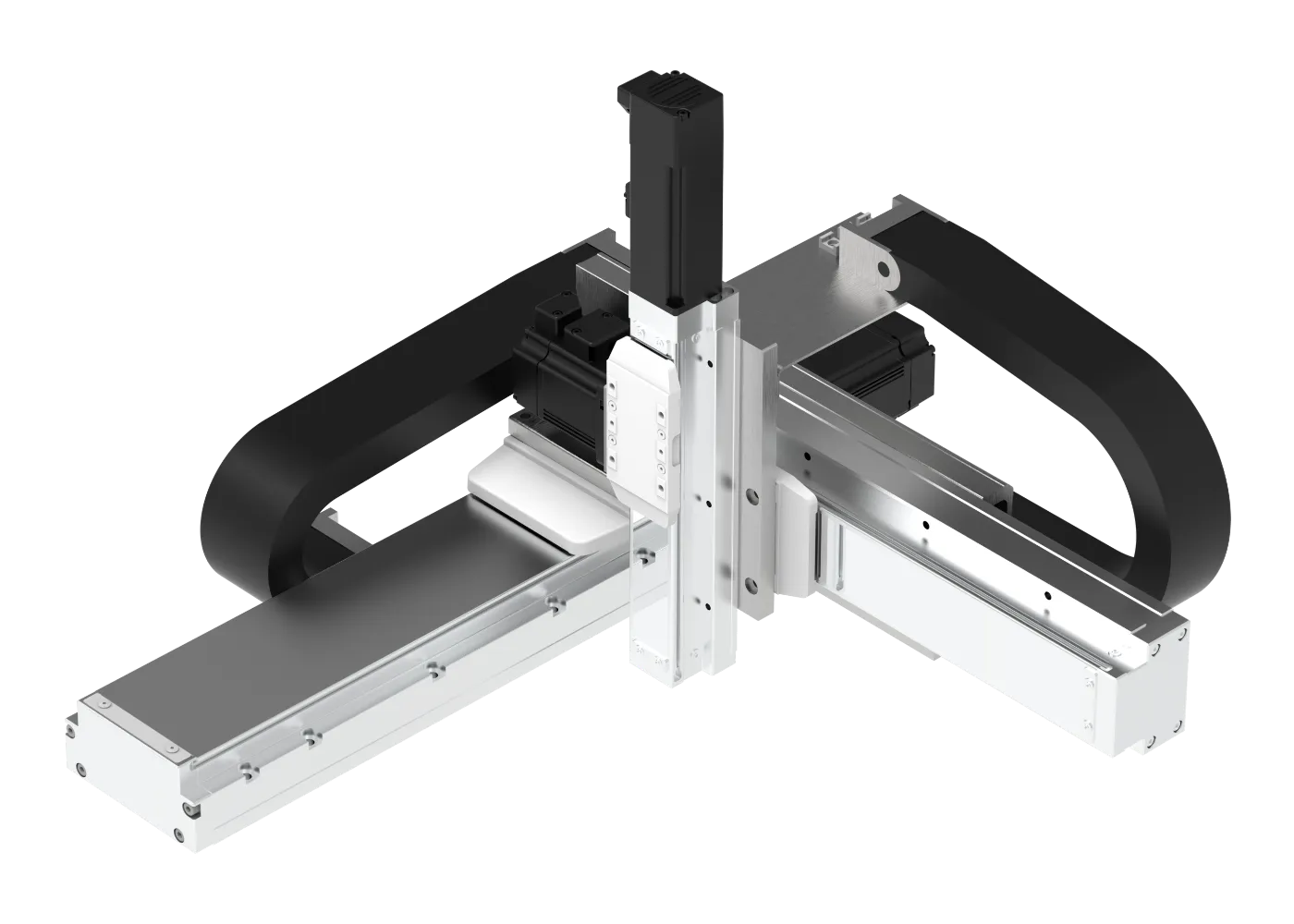

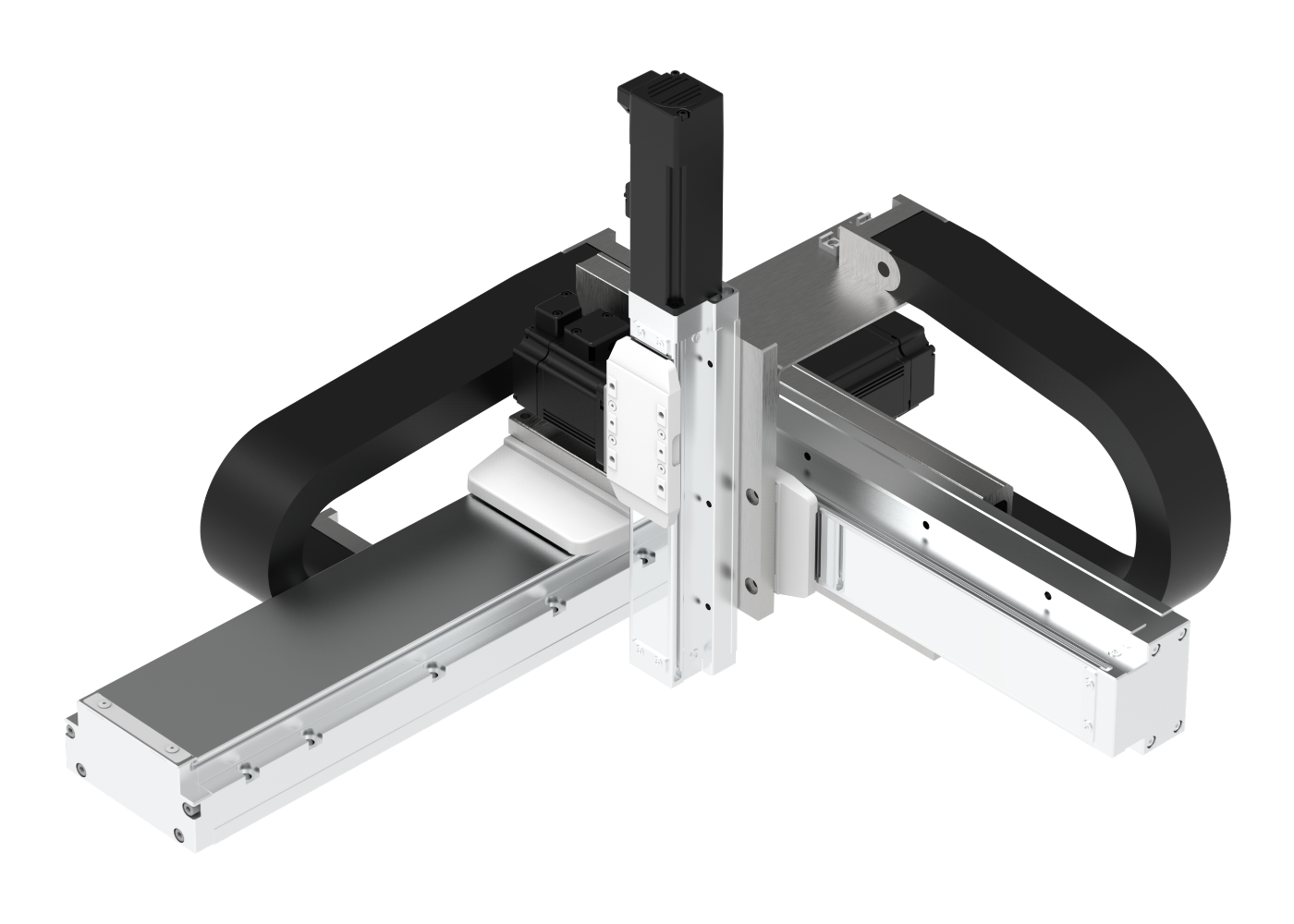

The XYSGT Series represents the pinnacle of TOYO's pre-engineered Cartesian gantry systems, leveraging high-response AC Servo motors to deliver exceptional dynamic performance. Building upon the rigid, built-in guideway architecture of the base gantry lines, the XYSGT utilizes servo control to achieve speeds up to 1000 mm/s and ultra-precise repeatability of ±0.005 mm. This series is designed for mission-critical automation tasks where high-cadence throughput and absolute positioning accuracy are non-negotiable.

Key Benefits

• High-Speed Servo Dynamics: AC servo motors provide rapid acceleration, higher terminal velocities, and tighter continuous position control compared to stepper-driven alternatives.
• Stable Gantry Architecture: The built-in linear guideway design ensures the highest level of structural stiffness, minimizing vibrations and deflections that can compromise product quality in cantilevered systems.
• Continuous Path Excellence: Fully supports complex Continuous Path (CP) generation, including 3D linear and arc interpolation, critical for applying sealants and adhesives at high speeds.
• Integrated Workcell Solution: Out-of-the-box compatibility with the TSC400 motion controller enables rapid PC-based teaching and 2D CAD-to-path conversion.

Target Applications

• High-Speed Dispensing: Rapid, high-volume application of adhesives, sealants, and thermal pastes along complex 3D contours without trailing.
• Precision Soldering: Highly repeatable, heat-controlled soldering of dense PCB components utilizing the platform's stable continuous path capabilities.
• Automated Routing: Desktop-scale routing and material removal tasks that benefit from enhanced rigidity and high servo torque.
• Electronics Assembly: Reliable, sub-micron component sorting, pressing, and handling in tight manufacturing environments.
