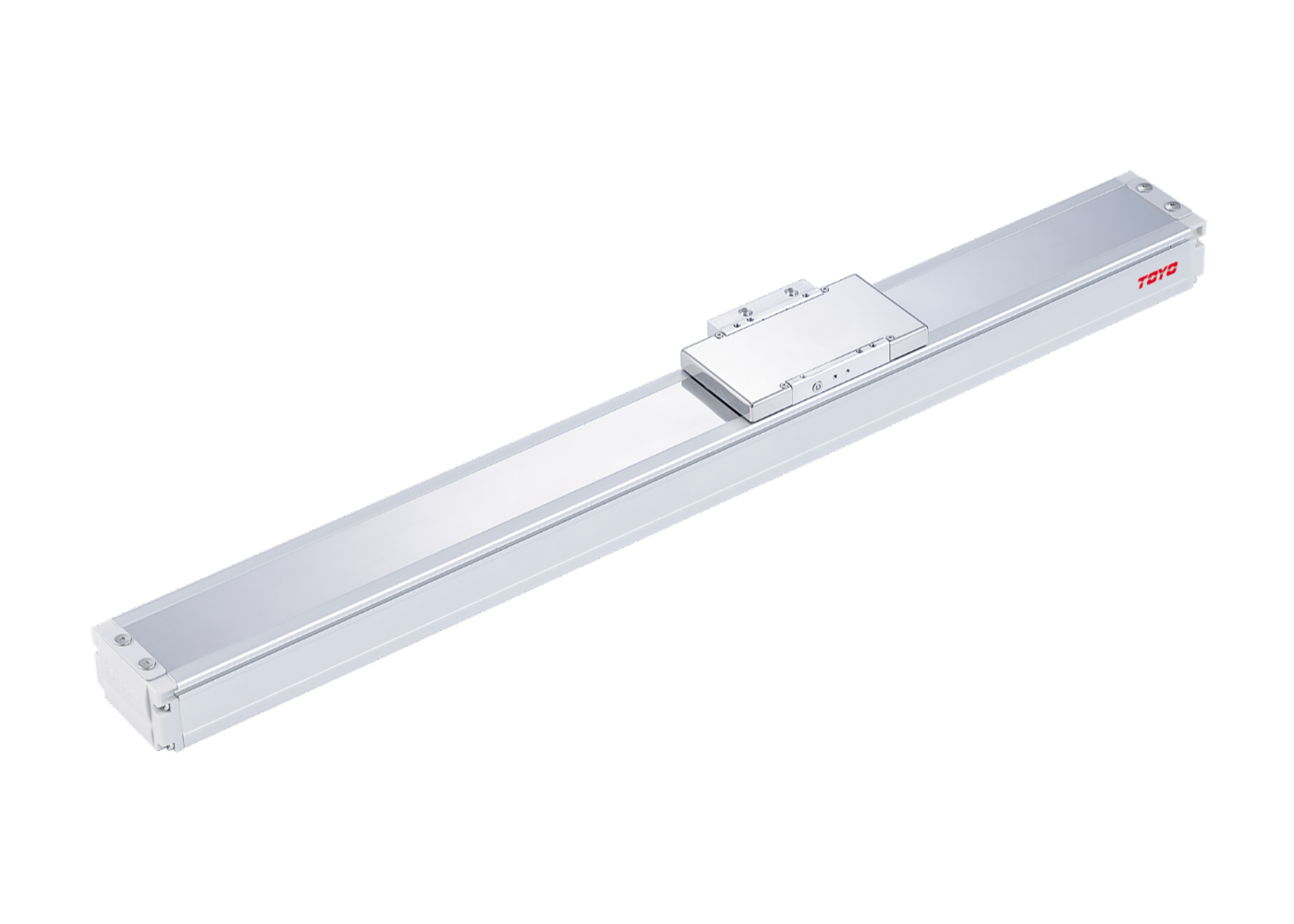

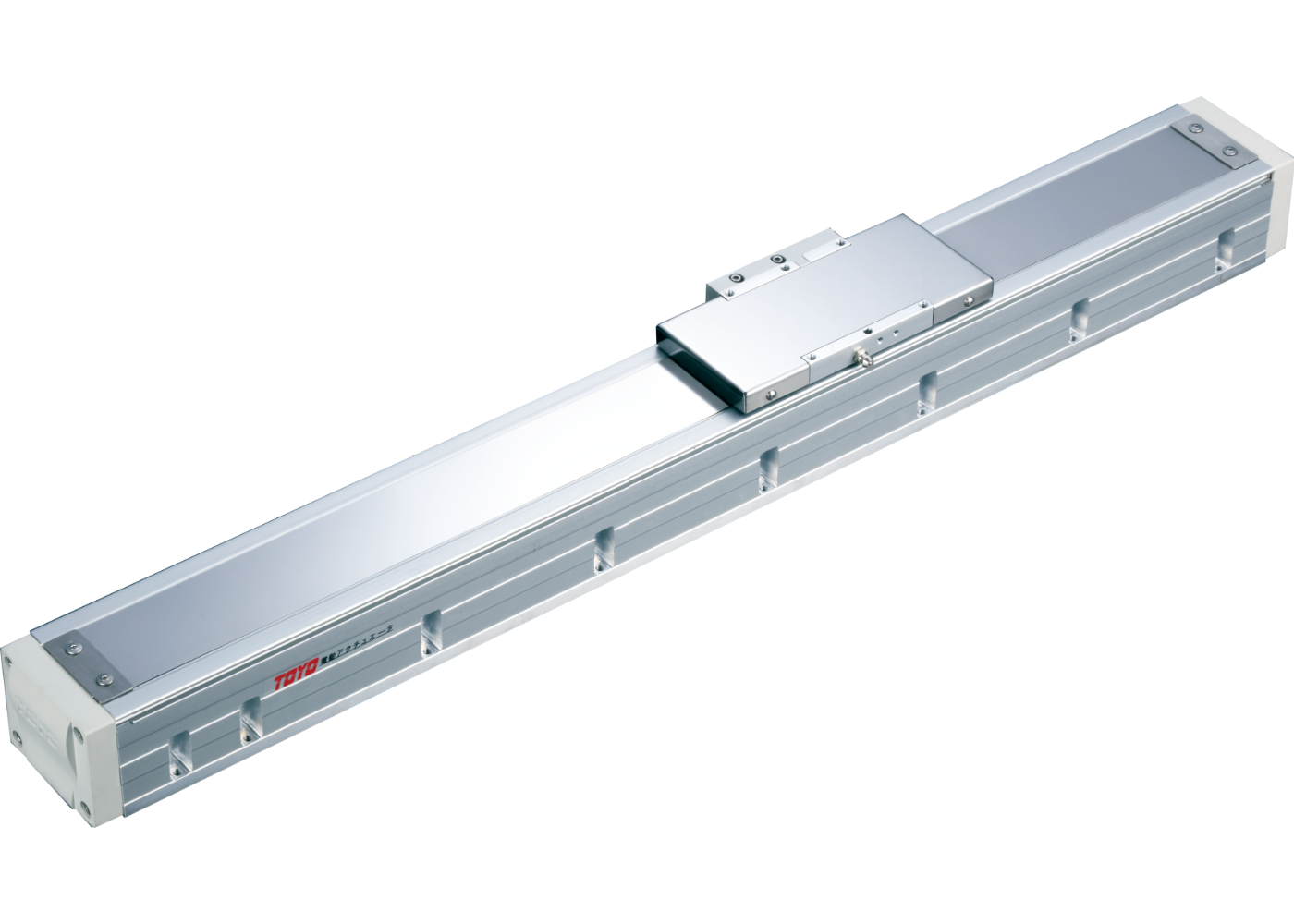

Precision Linear Motion for Sensitive Environments

The LGF Series represents the pinnacle of Toyo’s linear motor technology, engineered for high-speed, sub-micron precision in sensitive industrial environments. By integrating high-rigidity linear bearings directly into the ironless motor frame, the LGF series achieves a compact, low-profile form factor that eliminates the mechanical backlash and vibration common in belt or screw-driven systems.

Engineered for Continuous Throughput

Thermal stability is the core of the LGF's engineering. Featuring a proprietary self-cooling mechanism with specialized coil wrapping and an aluminum heat-sink carriage, the LGF series rapidly dissipates heat during high-cycle operations. This prevents the thermal expansion that can compromise accuracy, ensuring consistent sub-micron performance even in 24/7 manufacturing environments.

Performance Highlights

• Direct-Drive Efficiency: Eliminates mechanical transmission for silent, frictionless, and high-velocity motion.
• Extreme Dynamic Range: Achieve accelerations up to 1G and velocities up to 3500 mm/s for maximum production throughput.
• Cleanroom Optimized: ISO-rated design with smooth operation, ideal for LED/TFT display manufacturing and laboratory automation.
• Low Profile, High Rigidity: The integrated guideway design provides exceptional moment load resistance while maintaining a slim footprint.

Target Applications

• Semiconductor & Electronics: IC board pick-and-place, wafer inspection, and precision alignment.
• Laboratory Automation: High-speed sample handling, liquid dispensing, and diagnostic sorting.
• Precision Printing: PCB spray printing, high-speed barcode scanning, and industrial marking.
