Overview

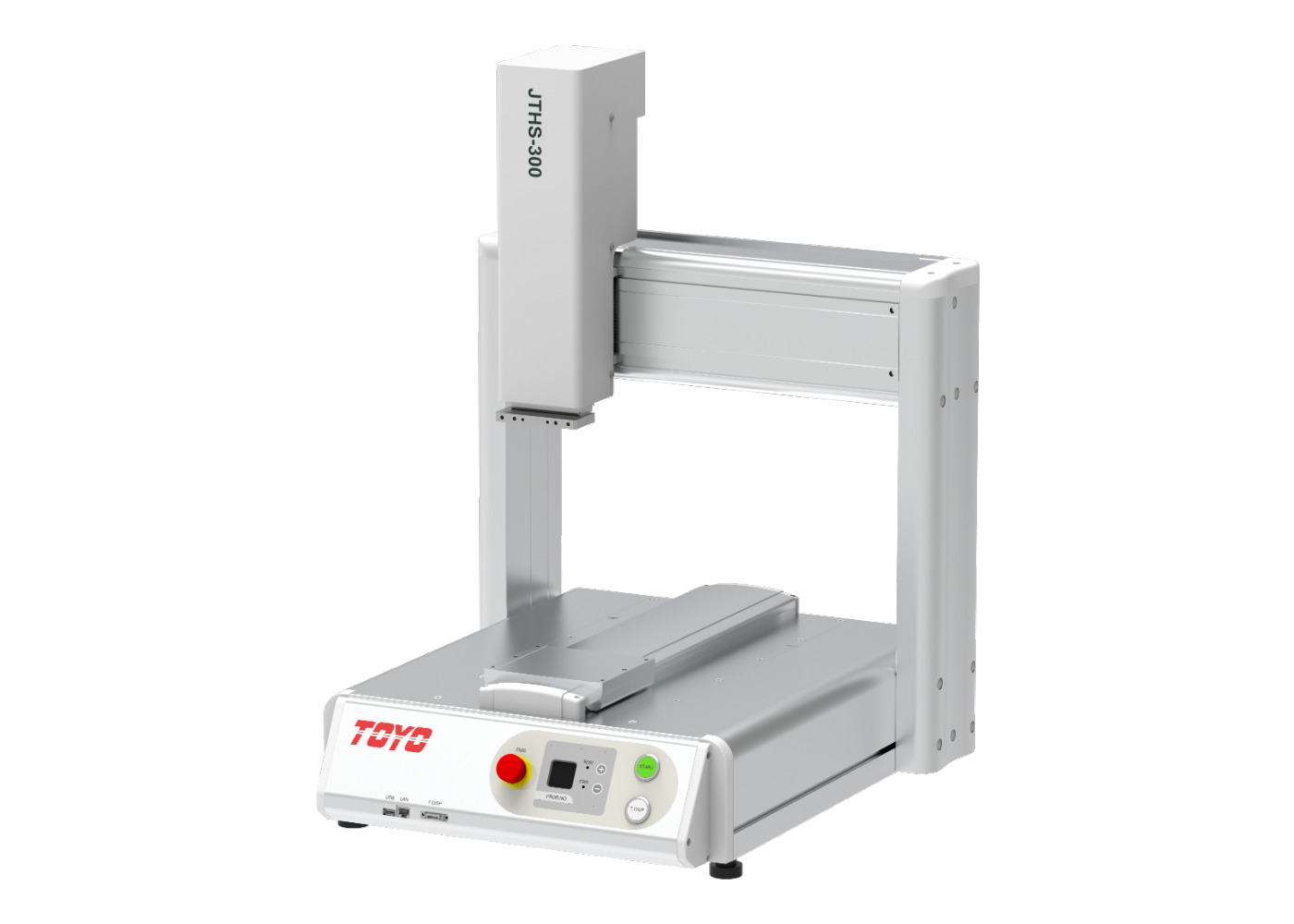

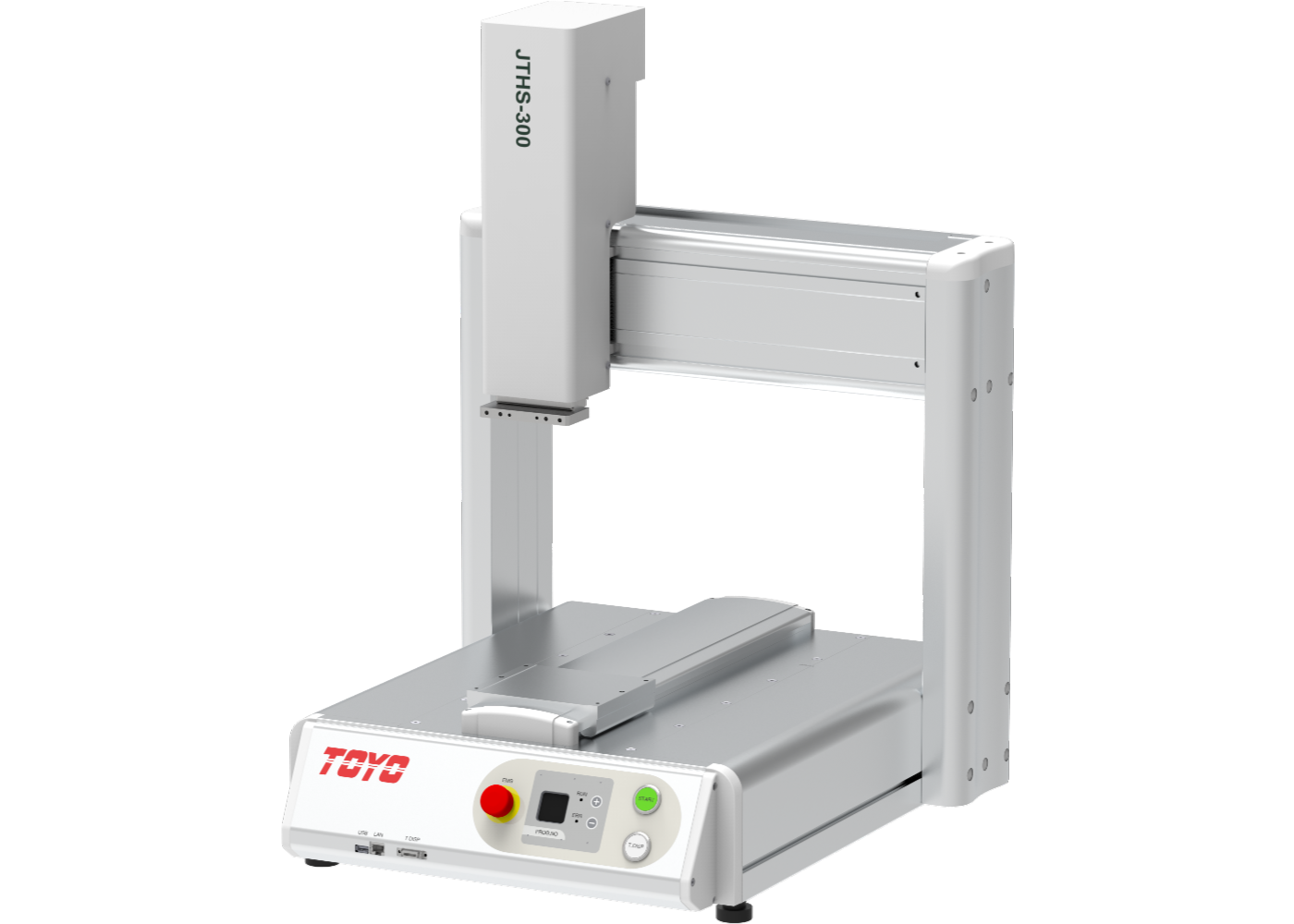

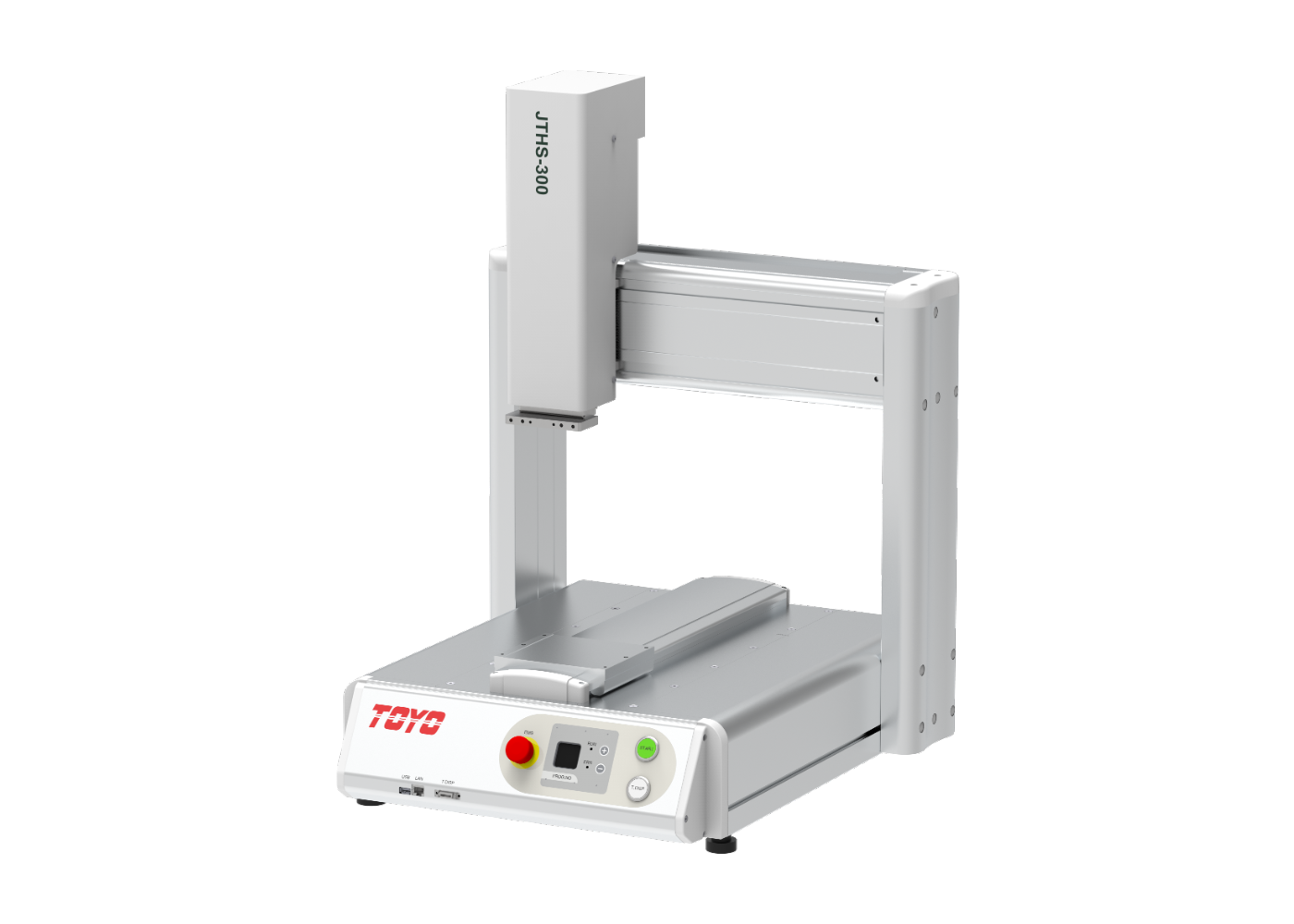

The JTHS Series is the "Platinum" flagship of TOYO's desktop robot portfolio. Designed for the most demanding high-speed and high-precision applications, it replaces traditional stepper technology with powerful AC Servo motors. This architectural upgrade doubles the maximum Point-to-Point velocity (1000 mm/s) and cuts repeatability down to an exceptional ±0.005 mm. When industrial production requires uncompromising accuracy, heavy tool loads, and rapid cycle times within a compact desktop footprint, the JTHS series delivers.

Key Benefits

• High-Speed AC Servo Dynamics: AC servo motors provide rapid acceleration, higher terminal velocities, and tighter continuous position control compared to any stepper-driven alternative.
• Ultra-Precision Repeatability: The combination of rigid ball screw mechanics and high-resolution servo encoders guarantees deterministic positioning to ±0.005 mm.
• Continuous Path Excellence: Achieves Continuous Path speeds of up to 900 mm/s with full 3D linear and arc interpolation, dramatically reducing cycle times for complex routing or dispensing.
• Zero Step Loss Reliability: True closed-loop servo feedback ensures continuous positional awareness, providing the absolute control necessary for high-cadence electronic assembly lines.

Target Applications

• High-Speed Dispensing: Rapid, high-volume application of adhesives, sealants, and thermal pastes along complex 3D contours without trailing.
• Electronics Assembly: Reliable, sub-micron component sorting, pressing, and handling in tight desktop manufacturing environments.
• Automated Routing: Desktop-scale routing and material removal tasks that benefit from enhanced rigidity and high servo torque.
• Precision Soldering: Highly repeatable, heat-controlled soldering of dense PCB components utilizing the platform's stable continuous path capabilities.
