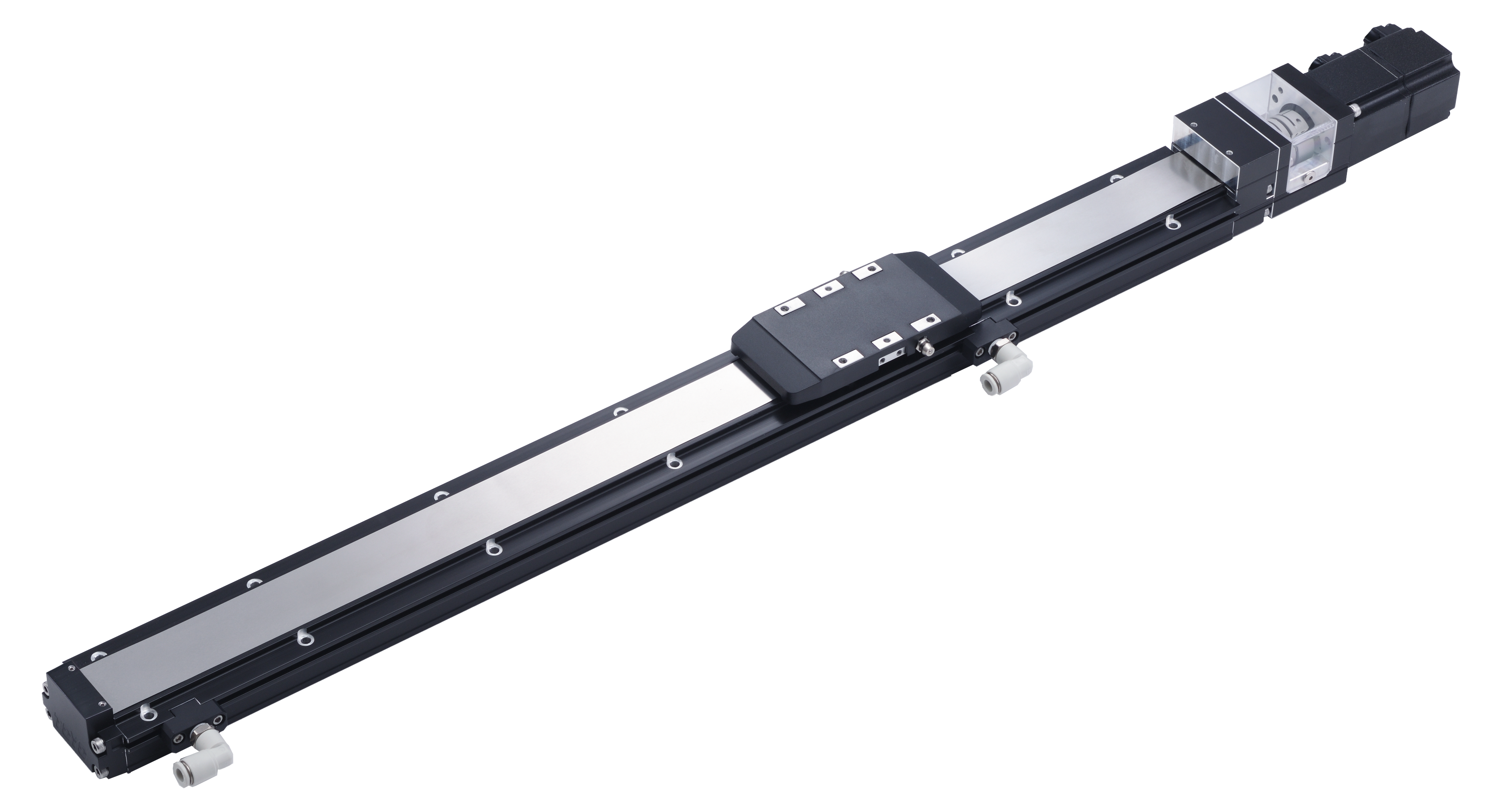

GLCH Series Main
GLCH Series
GLCH Series Standard Actuator

GLCH Series

Cleanroom-Ready Low Profile Linear Actuator with Built-in Linear Bearings

Cleanroom-Ready Low Profile Linear Actuator with Built-in Linear Bearings Download native CAD models and request a technical quote for the GLCH Series series

Get Pricing CAD Models

GLCH Series: Cleanroom Low-Profile Actuators

Elite Performance for Contamination-Sensitive Automation

The TOYO GLCH Series is the specialized cleanroom variant of our low-profile actuator family, specifically engineered for high-tech manufacturing environments where particle control is paramount. Reaching ISO Class 4 cleanliness standards, this series combines the space-saving advantages of a built-in guide-way with specialized vacuum suction ports and low-particle generation components.

Engineered for Cleanroom Integrity

To ensure absolute reliability in controlled environments, the GLCH series incorporates advanced engineering features:

  • Integrated Vacuum Suction Ports: Strategically placed ports allow for the continuous extraction of internal wear particles, ensuring the surrounding environment remains within ISO specifications even during high-cycle operation.
  • Specialized Strip Sealing: A high-durability stainless steel strip seal prevents particle escape while protecting internal components from external contaminants.
  • Cleanroom-Grade Lubrication: Factory-supplied with specialized low-outgassing grease, reducing chemical contamination risks in sensitive electronic and medical manufacturing.

Core Performance Highlights

  • ISO Class 4 Performance: Validated for use in stringent cleanroom classes, making it the ideal choice for semiconductor, flat-panel display, and pharmaceutical automation.
  • Low-Profile Precision: Maintains the compact vertical footprint of the GLTH family, enabling more efficient multi-axis gantry designs without sacrificing cleanroom compliance.
  • High-Rigidity Motion: The integrated bearing system ensures stable performance under high moment loads, critical for precision pick-and-place and substrate handling.
  • Ready-to-Integrate: Available with single or dual carriage options ("D") for enhanced stability and high-payload horizontal transport.

Target Cleanroom Applications

The GLCH series is the premier choice for automated processes requiring elite cleanliness and precision:

  • Semiconductor Manufacturing: Ideal for wafer handling, inspection systems, and clean-environment material transport.
  • Flat Panel Display (FPD): Provides stable, low-particle motion for glass substrate processing and high-precision inspection lines.
  • Medical & Pharmaceutical: Enables contamination-free reagent dispensing, medical device assembly, and high-accuracy laboratory automation.

Technical Excellence & Benefits

ISO Class 4 Certified

Engineered with specialized seals and materials to meet stringent particle emission standards for semiconductor and medical assembly.

Integrated Suction Ports

Features dedicated vacuum ports to extract internal particles, maintaining environmental integrity during high-speed operation.

High Rigidity Built-in Rails

The integrated guide-way design provides exceptional moment-load resistance in a compact, low-profile chassis.

Low-Maintenance Operation

Uses specialized cleanroom-grade grease and long-life components to extend service intervals in controlled environments.

Engineering Gallery
Product Detail

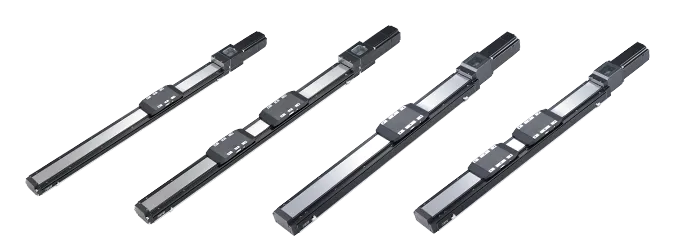

GLCH available in 3 Frame sizes with single or dual carriage options.
Product Detail

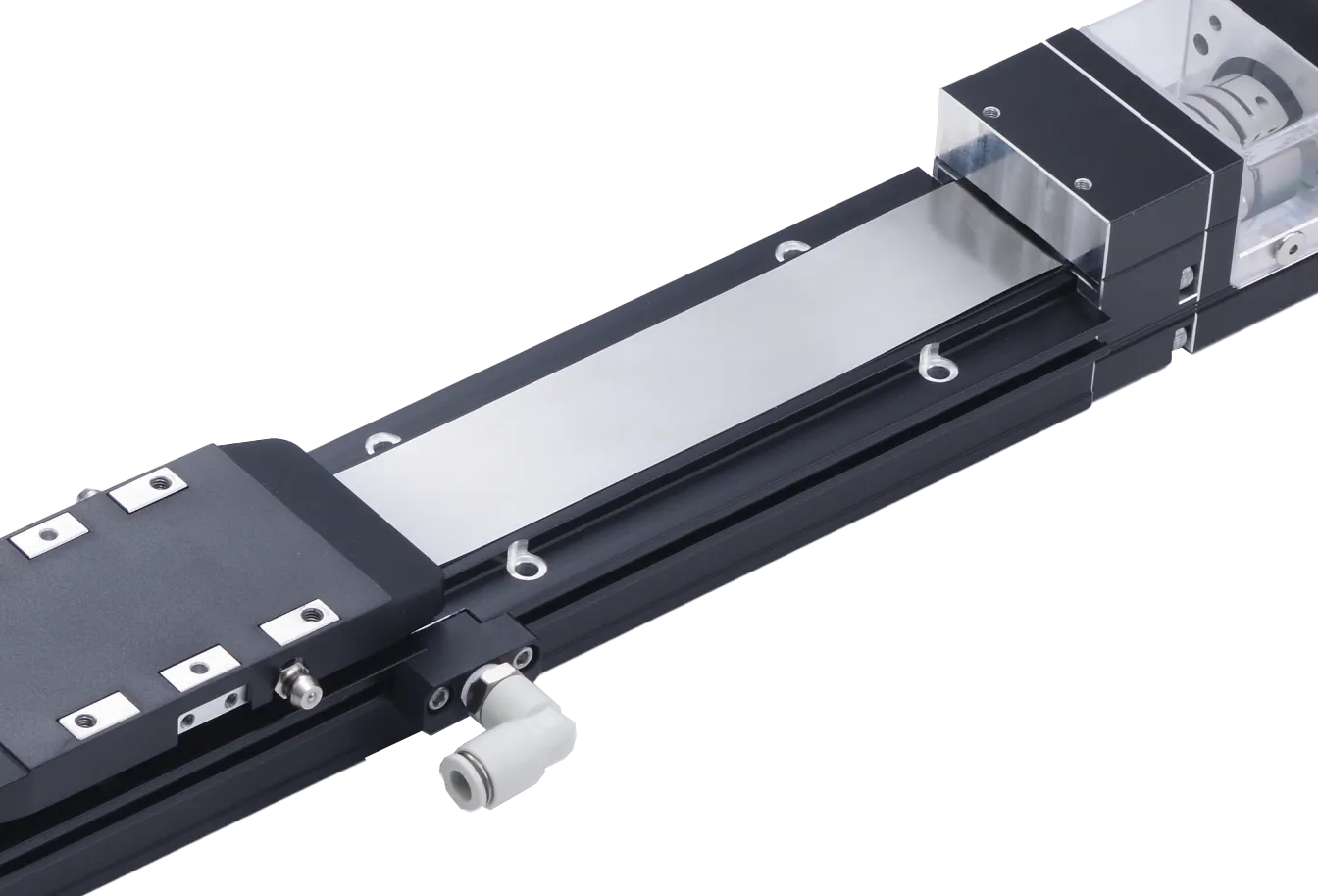

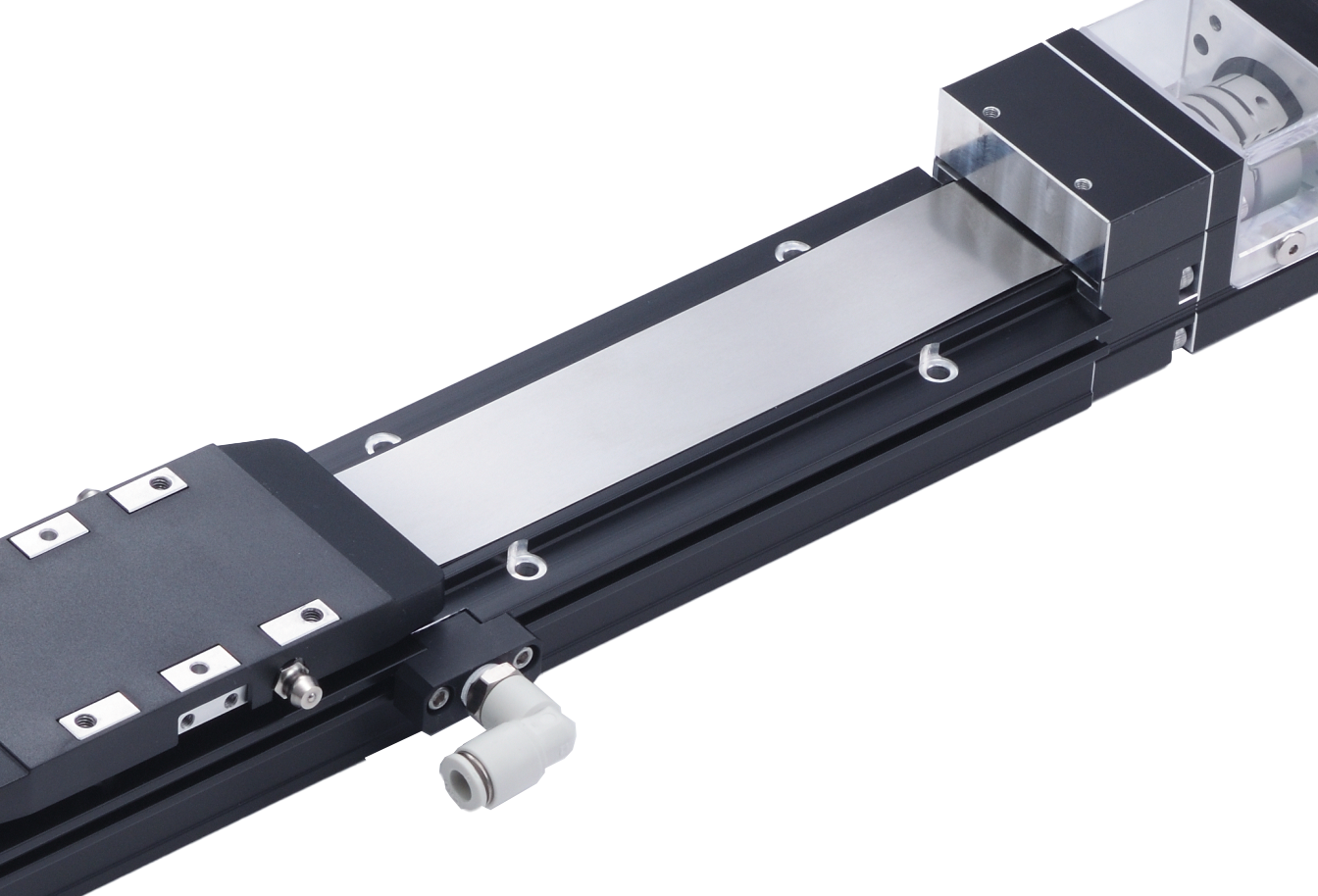

Ports for light vaccuum ensure the system does not emit any debris. These ports can also be used with a light positive pressure in dirty environments to keep the inside clean

Explore Alternate Solutions

Compare the GLCH Series with similar high-performance series in our portfolio.

GTH Series
GTH Series

Elite Repeatability Ball Screw Actuator

Sizes
GTH3 GTH4 GTH4D GTH5 GTH5S GTH5D GTH8 GTH8S GTH8D GTH12 GTH12D
Explore Series
GLTH Series
GLTH Series

Built-in Linear Motion Guide Actuator

Sizes
GLTH3 GLTH5 GLTH5D GLTH5M GLTH8 GLTH8D GLTH8M GLTH12
Explore Series
GCH Series
GCH Series

Clean Room Built-in Linear Motion Guide

Sizes
GCH4 GCH5 GCH5S GCH8 GCH8S GCH12
Explore Series

Mechanical Specifications

Specification GLCH5 (D) GLCH8 (D) GLCH12
Product Size (W x H mm) 53 x 46 80 x 63 120 x 76
Repeatability (µm) ±5 ±5 ±5
Maximum Payload (kg)(1) coming soon coming soon coming soon
Maximum Thrust (N)(1) coming soon coming soon coming soon
Maximum Travel (mm) 1000
850(D)		 1250
1050(D)		 1250
Maximum Speed (mm/s) 1200 1440 1440
Maximum Acceleration (G) 1 1 1
Operating Temperature (°C)(2) 0 - 40 0 - 40 0 - 40

1 Maximum payload and thrust are specified based on an L10 life rating. For the load specified, the life is expected to be 1000km. To calculate life for your application specifically, please contact us.

2 For extreme temperatures outside of this range, special greases are required.

Actuator Stroke / Travel Specifications

Specification 50
(mm)		 100
(mm)		 150
(mm)		 200
(mm)		 250
(mm)		 300
(mm)		 350
(mm)		 400
(mm)		 450
(mm)		 500
(mm)		 550
(mm)		 600
(mm)		 650
(mm)		 700
(mm)		 750
(mm)		 800
(mm)		 850
(mm)		 900
(mm)		 950
(mm)		 1000
(mm)		 1050
(mm)		 1100
(mm)		 1150
(mm)		 1200
(mm)		 1250
(mm)
GLCH5 Weight (kg) 1.1 1.23 1.36 1.48 1.61 1.73 1.86 1.99 2.11 2.24 2.37 2.49 2.62 2.75 2.87 3 3.12 3.25 3.38 3.5 Not Available
GLCH5D Weight (kg) 1.61 1.74 1.86 1.99 2.12 2.24 2.37 2.50 2.62 2.75 2.88 3.00 3.13 3.25 3.38 3.51 3.63 Not Available
GLCH5-L2 Critical Speed (mm/s) 120 110 90 80 70 63 53 50 43 40 37 Not Available
GLCH5-L6 Critical Speed (mm/s) 360 330 270 240 210 190 160 150 130 120 110 Not Available
GLCH5-L12 Critical Speed (mm/s) 720 660 540 480 420 380 320 300 260 240 220 Not Available
GLCH5-L20 Critical Speed (mm/s) 1200 1100 900 800 700 630 533 500 430 400 367 Not Available
GLCH8 Weight (kg) 2.35 2.65 2.94 3.24 3.53 3.83 4.13 4.42 4.72 5.01 5.31 5.61 5.91 6.2 6.5 6.79 7.09 7.39 7.68 7.98 8.28 8.57 8.87 9.17 9.46
GLCH8D Weight (kg) 3.93 4.23 4.53 4.82 5.12 5.41 5.71 6.01 6.31 6.6 6.9 7.19 7.49 7.79 8.08 8.38 8.68 8.97 9.27 9.57 9.86 Not Available
GLCH8-L6 Critical Speed (mm/s) 360 350 310 270 240 210 190 170 160 140 130 120 110 100 90
GLCH8-L12 Critical Speed (mm/s) 720 700 620 540 480 420 380 340 320 280 260 240 220 200 180
GLCH8-L24 Critical Speed (mm/s) 1440 1400 1240 1080 960 840 760 680 640 560 520 480 440 400 360
GLCH12 Weight (kg) 5.35 5.7 6.05 6.4 6.75 7.1 7.45 7.8 8.15 8.5 8.85 9.2 9.55 9.9 10.25 10.6 10.95 11.3 11.65 12 12.35 12.7 13.05 13.4 13.75
GLCH12-L6 Critical Speed (mm/s) 360 350 310 270 240 210 190 170 160 140 130 120 110 100
GLCH12-L12 Critical Speed (mm/s) 720 700 620 540 480 420 380 340 320 280 260 240 220 200
GLCH12-L24 Critical Speed (mm/s) 1440 1400 1240 1080 960 840 760 680 640 560 520 480 440 400
Swipe horizontally to view full specifications.
GLCH Series Technical Catalog

PDF Download - Includes dimensional drawings and selection guides.

Download Catalog
CAD Design

Native CAD Models & 3D Configurations

Access the TOYO CAD Portal →

Seamless Integration into Your Design Environment

To ensure the highest level of design accuracy and reduce your engineering lead times, TOYO Robotics Americas provides a comprehensive library of native CAD models. Hosted through our CAD Community Portal, these models are not generic placeholders; they are highly detailed, configurable files designed to drop directly into your assembly.

  • Native Format Support: Download models in your preferred native format, including SolidWorks, Autodesk Inventor, Pro/E (Creo), Siemens NX, and CATIA, as well as universal formats like STEP, IGES, and Parasolid.
  • Dynamic Configuration: Adjust stroke lengths and motor orientations in real-time to generate a model that matches your exact specification.
  • Instant Access: Register once to unlock unlimited downloads, ensuring you have the most up-to-date technical data for your project milestones.
Autodesk
Pro/E
CATIA

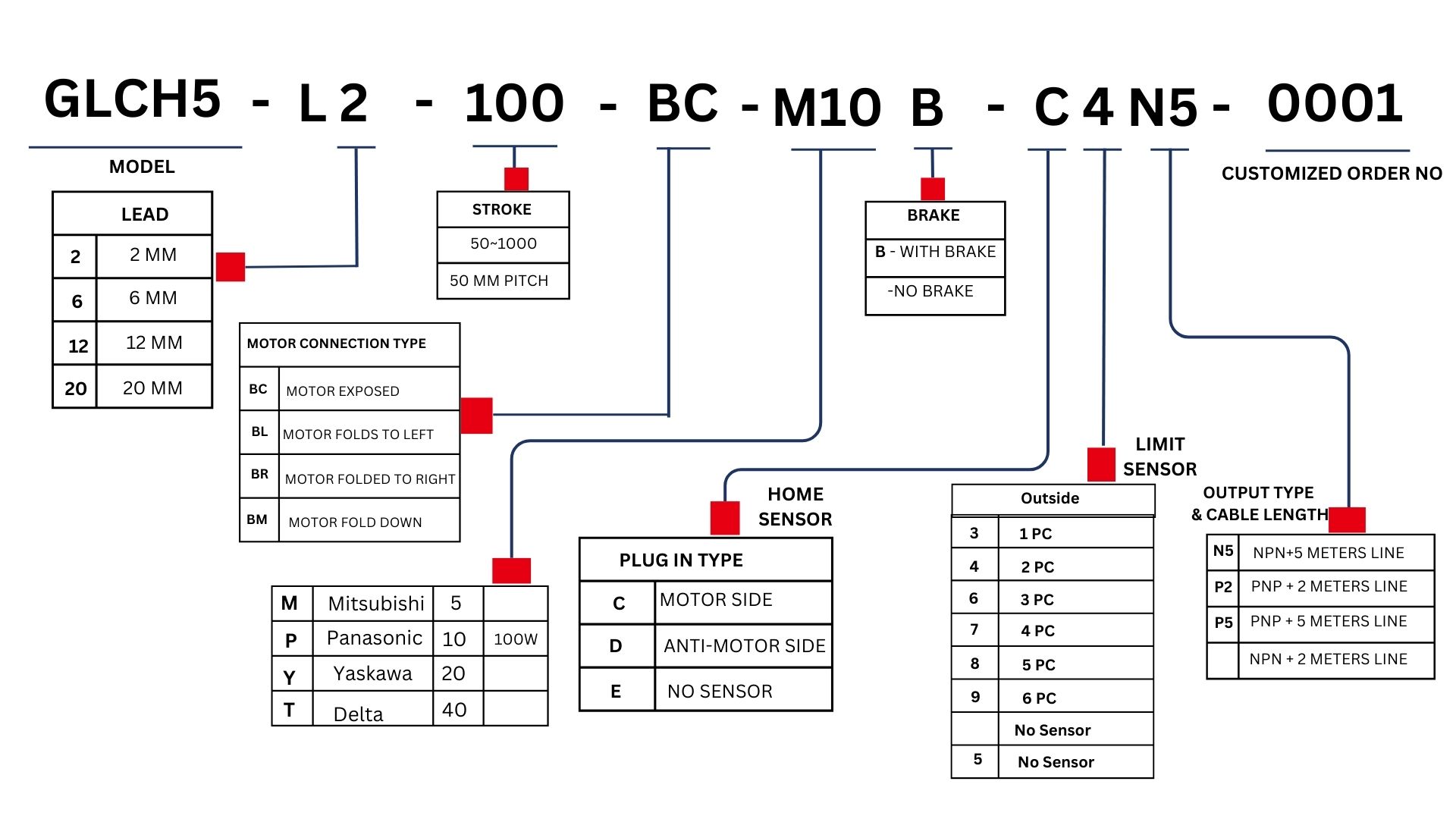

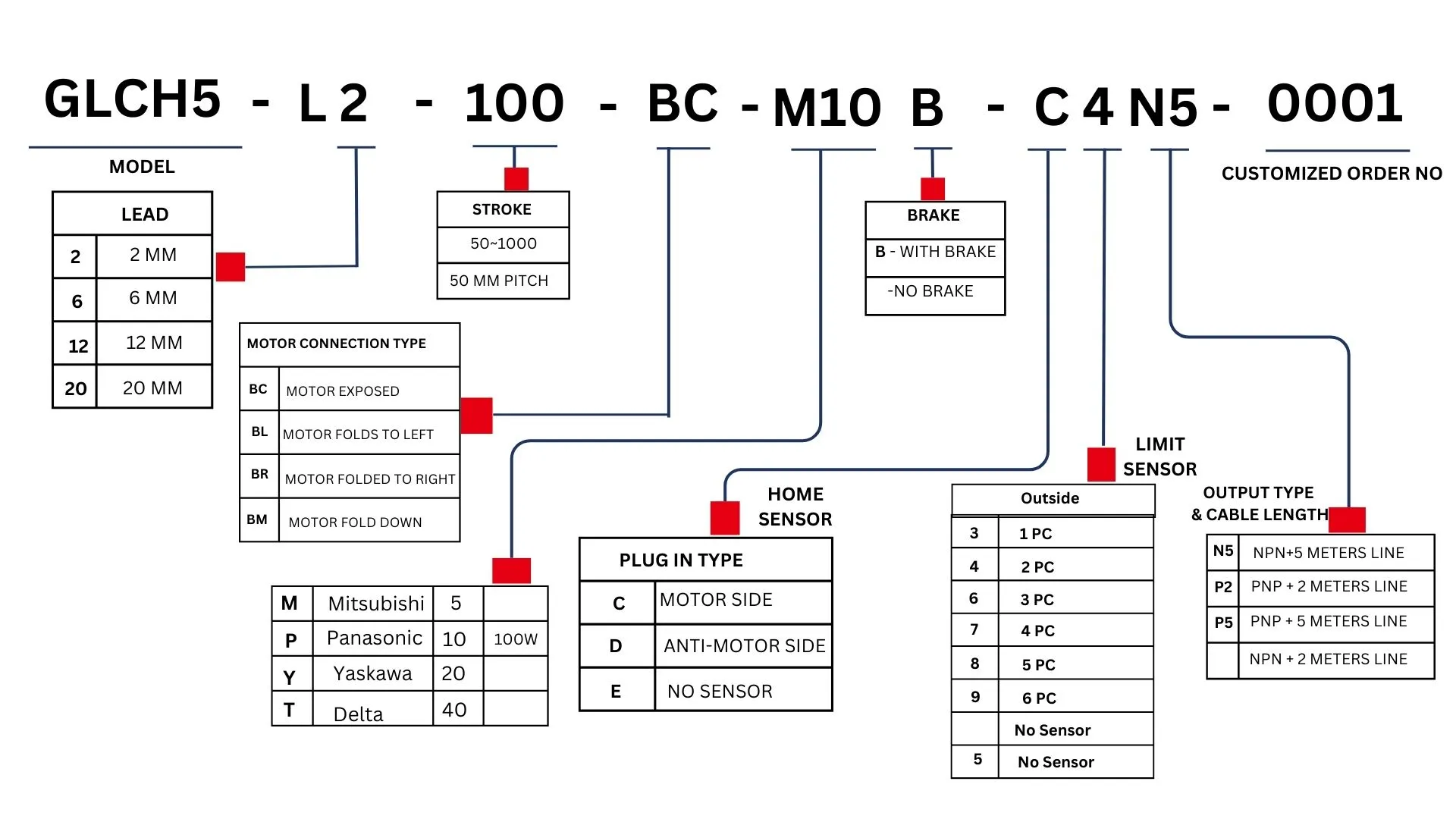

Ordering Information

Select a size to view the specific ordering code configuration:

Ordering Code

Contact our application engineers to generate your exact part number or for complex multi-axis configurations.
