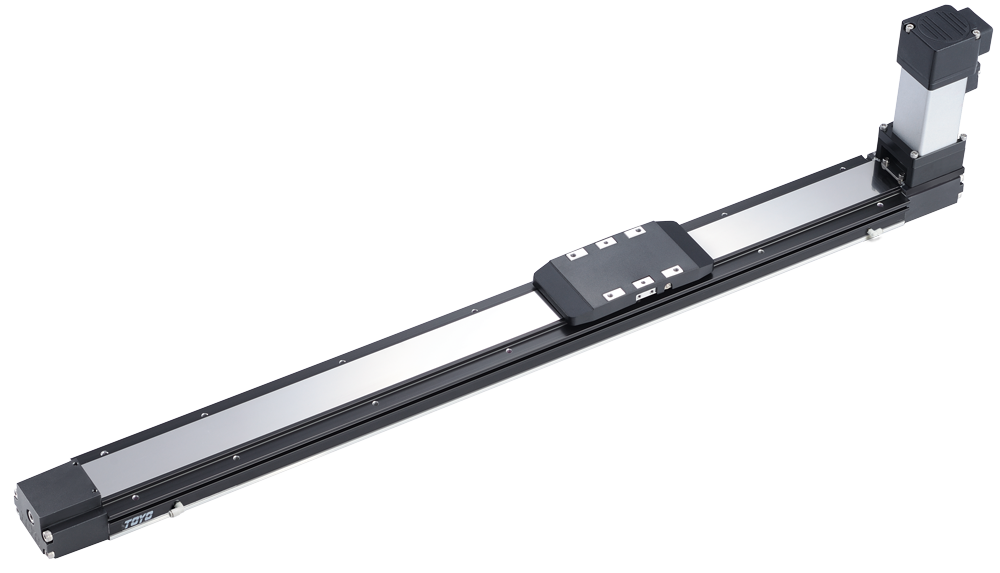

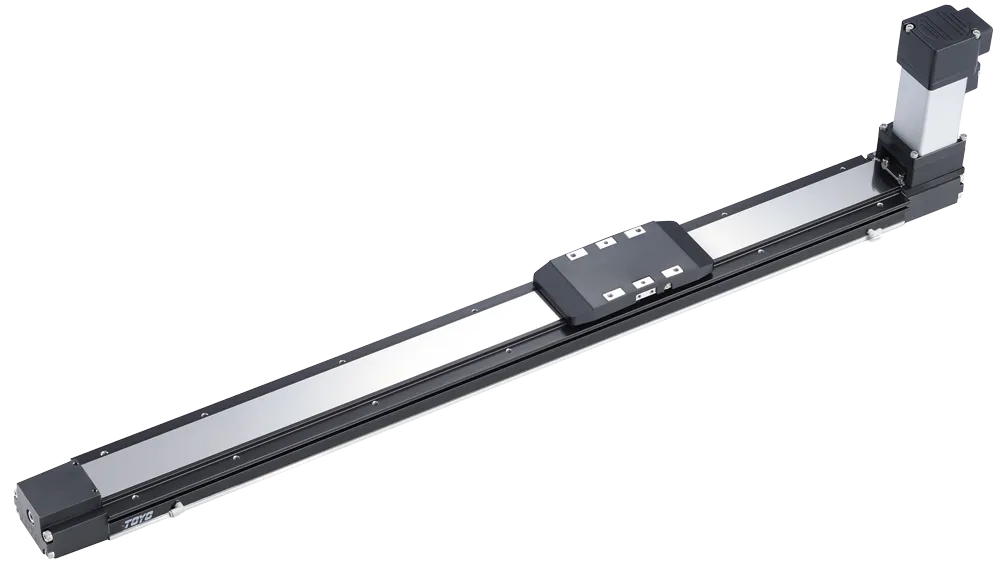

High-Speed Enclosed Belt Actuators with Integrated Vacuum Particle Control
High-Speed Enclosed Belt Actuators with Integrated Vacuum Particle Control Download native CAD models and request a technical quote for the GLCB Series series
The GLCB Series is engineered to solve the critical challenge of maintaining high-speed throughput while eliminating particle contamination in sensitive cleanroom environments. By integrating a vacuum-port equipped enclosed design with high-performance belt-drive technology, this series provides a reliable bridge between precision automation and strict ISO cleanroom standards. For manufacturers in semiconductor and laboratory automation, the GLCB represents a specialized solution that reduces environmental risk without compromising on operational speed.
The GLCB series excels in environments where speed and cleanliness are the primary performance drivers:
Features an enclosed design with integrated vacuum ports to actively remove particles, ensuring compliance with strict contamination control requirements.
Capable of reaching speeds up to 2,000 mm/s (GLCB8), enabling rapid cycle times in high-volume production lines.
Supports strokes up to 3,000 mm, providing the flexibility needed for large-scale wafer handling and long-range cleaning applications.
Delivers precise positioning within ±0.06 mm, critical for delicate tasks such as wafer piling and semiconductor assembly.
Compare the GLCB Series with similar high-performance series in our portfolio.

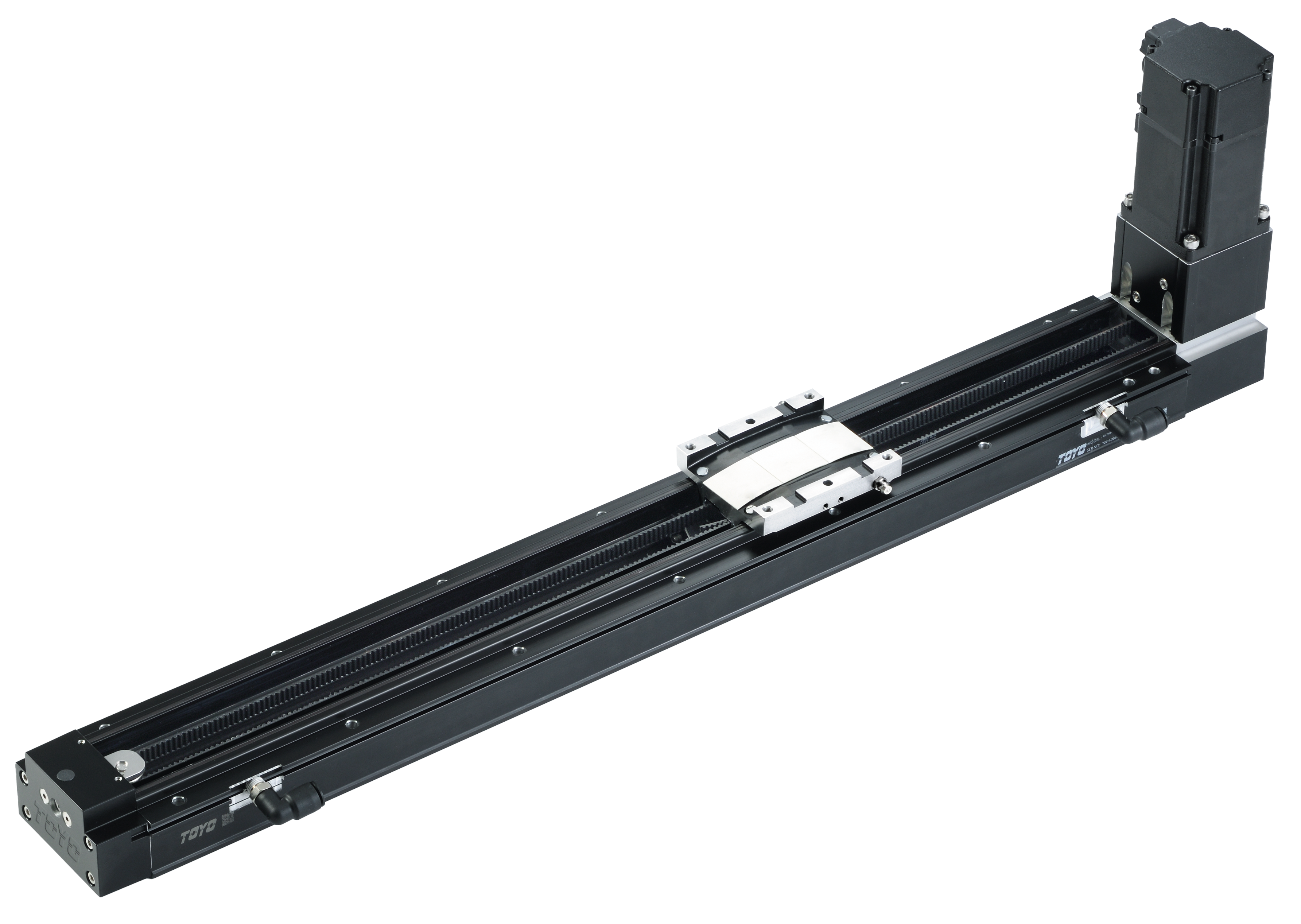

High Performance Built-in Guideway Belt Drive Actuator
| Specification | GLCB5 | GLCB8 |
|---|---|---|
| Product Size (W x H mm) | 54 x 50 | 82 x 68 |
| Repeatability (µm) | ±60 | ±60 |
| Maximum Payload (kg) | coming soon | coming soon |
| Maximum Thrust (N) | 53 | 116 |
| Maximum Travel (mm) | 3,000 | 3,000 |
| Maximum Speed (mm/s) | 1,067 | 2,000 |
| Maximum Acceleration (G) | 1.0 | 1.0 |
1 Maximum payload and thrust are specified based on an L10 life rating. To calculate life for your application, please contact us.
| Specification | 50 (mm) |
100 (mm) |
150 (mm) |
200 (mm) |
250 (mm) |
300 (mm) |
350 (mm) |
400 (mm) |
450 (mm) |
500 (mm) |
550 (mm) |
600 (mm) |
650 (mm) |
700 (mm) |
750 (mm) |
800 (mm) |
850 (mm) |
900 (mm) |
950 (mm) |
1000 (mm) |
1050 (mm) |
1100 (mm) |
1150 (mm) |
1200 (mm) |
1250 (mm) |
1300 (mm) |
1350 (mm) |
1400 (mm) |
1450 (mm) |
1500 (mm) |
1550 (mm) |
1600 (mm) |
1650 (mm) |
1700 (mm) |
1750 (mm) |
1800 (mm) |
1850 (mm) |
1900 (mm) |
1950 (mm) |
2000 (mm) |
2050 (mm) |
2100 (mm) |
2150 (mm) |
2200 (mm) |
2250 (mm) |
2300 (mm) |
2350 (mm) |
2400 (mm) |
2450 (mm) |
2500 (mm) |
2550 (mm) |
2600 (mm) |
2650 (mm) |
2700 (mm) |
2750 (mm) |
2800 (mm) |
2850 (mm) |
2900 (mm) |
2950 (mm) |
3000 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GLCB5 Series Weight (kg) | 1.56 | 1.6 | 1.64 | 1.67 | 1.71 | 1.75 | 1.79 | 1.82 | 1.86 | 1.9 | 1.94 | 1.97 | 2.01 | 2.05 | 2.09 | 2.12 | 2.16 | 2.2 | 2.24 | 2.27 | 2.31 | 2.35 | 2.39 | 2.43 | 2.46 | 2.5 | 2.54 | 2.58 | 2.61 | 2.65 | 2.69 | 2.73 | 2.76 | 2.8 | 2.84 | 2.88 | 2.91 | 2.95 | 2.99 | 3.03 | 3.07 | 3.1 | 3.14 | 3.18 | 3.22 | 3.25 | 3.29 | 3.33 | 3.37 | 3.4 | 3.44 | 3.48 | 3.52 | 3.55 | 3.59 | 3.63 | 3.67 | 3.7 | 3.74 | 3.78 |
| GLCB8 Series Weight (kg) | 2.52 | 2.73 | 2.94 | 3.15 | 3.36 | 3.57 | 3.78 | 3.99 | 4.2 | 4.41 | 4.62 | 4.83 | 5.04 | 5.25 | 5.46 | 5.67 | 5.88 | 6.09 | 6.3 | 6.51 | 6.72 | 6.93 | 7.14 | 7.35 | 7.56 | 7.77 | 7.98 | 8.19 | 8.4 | 8.61 | 8.82 | 9.03 | 9.24 | 9.45 | 9.66 | 9.87 | 10.08 | 10.29 | 10.5 | 10.71 | 10.92 | 11.13 | 11.34 | 11.55 | 11.76 | 11.97 | 12.18 | 12.39 | 12.6 | 12.81 | 13.02 | 13.23 | 13.44 | 13.65 | 13.86 | 14.07 | 14.28 | 14.49 | 14.7 | 14.91 |
To ensure the highest level of design accuracy and reduce your engineering lead times, TOYO Robotics Americas provides a comprehensive library of native CAD models. Hosted through our CAD Community Portal, these models are not generic placeholders; they are highly detailed, configurable files designed to drop directly into your assembly.

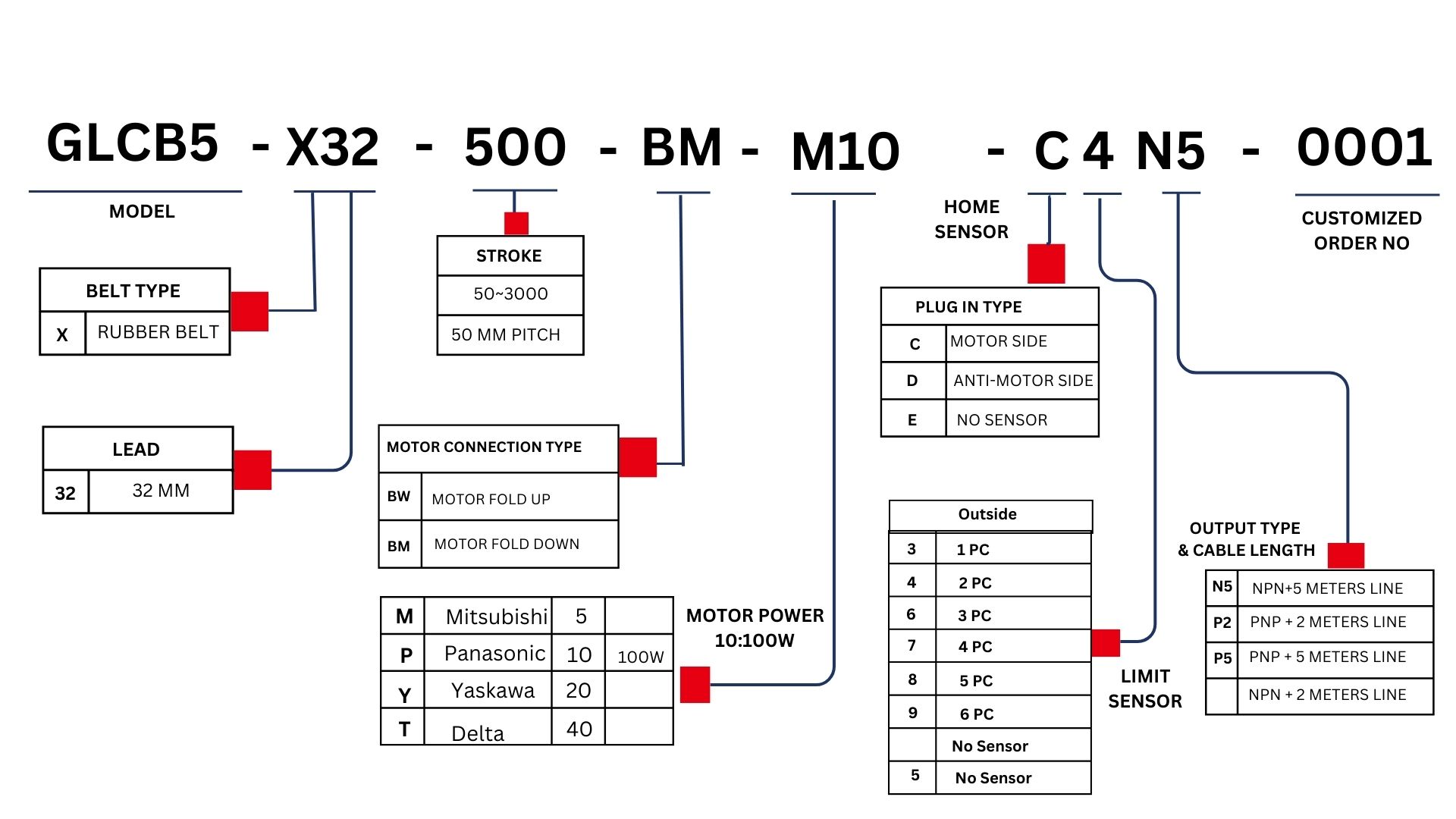

Select a size to view the specific ordering code configuration:
Contact our application engineers to generate your exact part number or for complex multi-axis configurations.
Request Configuration Support
