Cleanroom-Ready High-Load Belt Drive Actuators
Cleanroom-Ready High-Load Belt Drive Actuators Download native CAD models and request a technical quote for the ECB Series series today. Contact our application

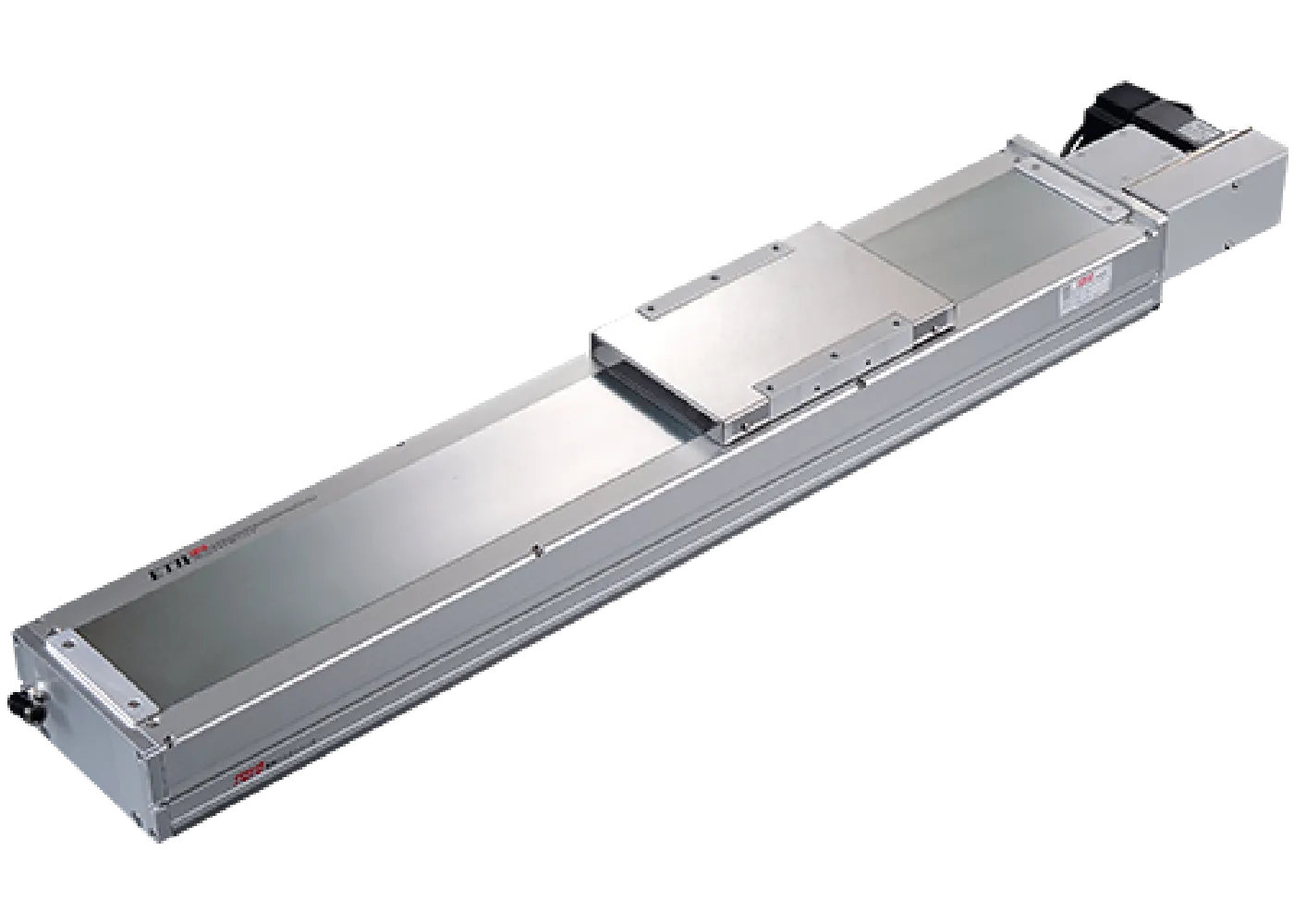

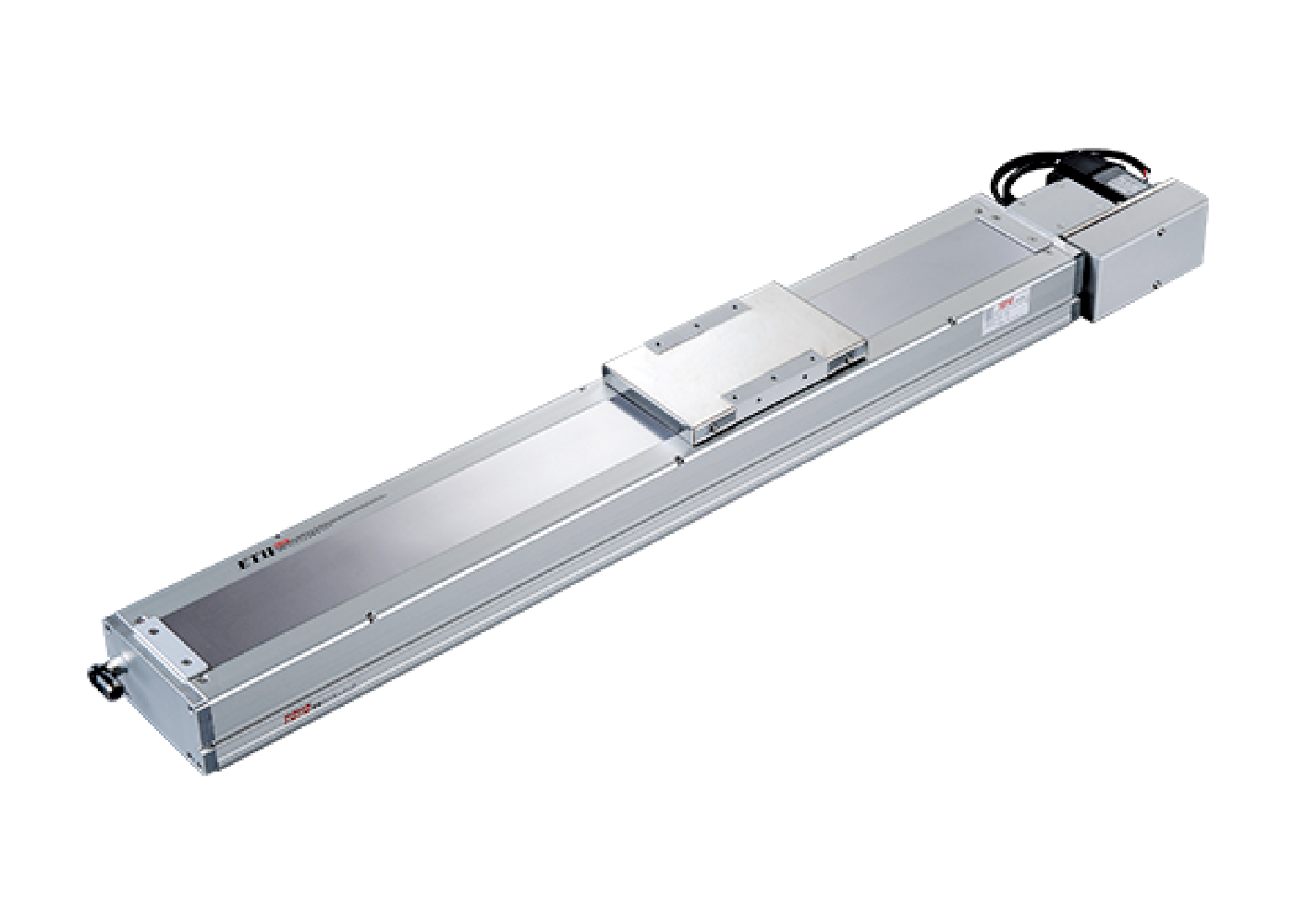

The ECB Series represents the pinnacle of cleanroom belt drive technology, engineered for high-speed transport in Class 10/100 environments. Featuring dual square rails and cleanroom-specified bearings, the ECB series balances high load capacity with ultra-low particle generation. A key design feature is the integrated pneumatic port, which allows for light vacuum suction to extract debris from the actuator body before it enters the sensitive environment.
The ECB Series is the primary choice for heavy-duty automation in high-purity environments:
Specialized pneumatic port for debris containment, ensuring ISO Class 4 (Class 10) compliance.
Provides superior rigidity and load capacity compared to standard single-rail actuators.
Factory-fitted with low-outgassing lubricants and shielded bearings for extreme durability in vacuum-assisted environments.
Capable of speeds up to 2,400 mm/s for rapid material handling in large-envelope cleanrooms.

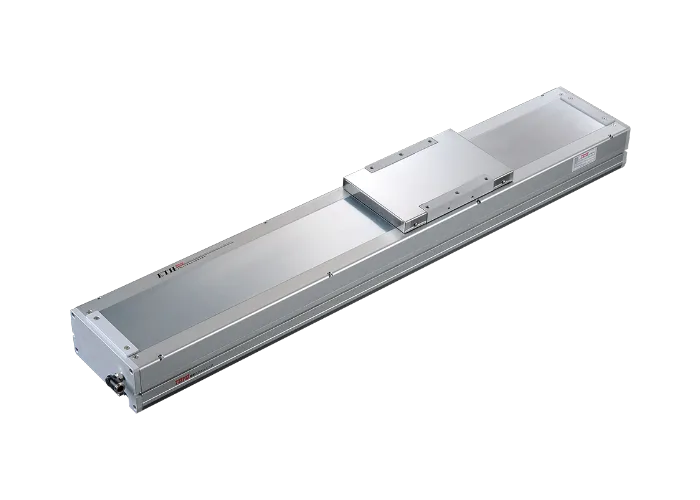

Compare the ECB Series with similar high-performance series in our portfolio.
| Specification | ECB14 | ECB17 | ECB22 |
|---|---|---|---|

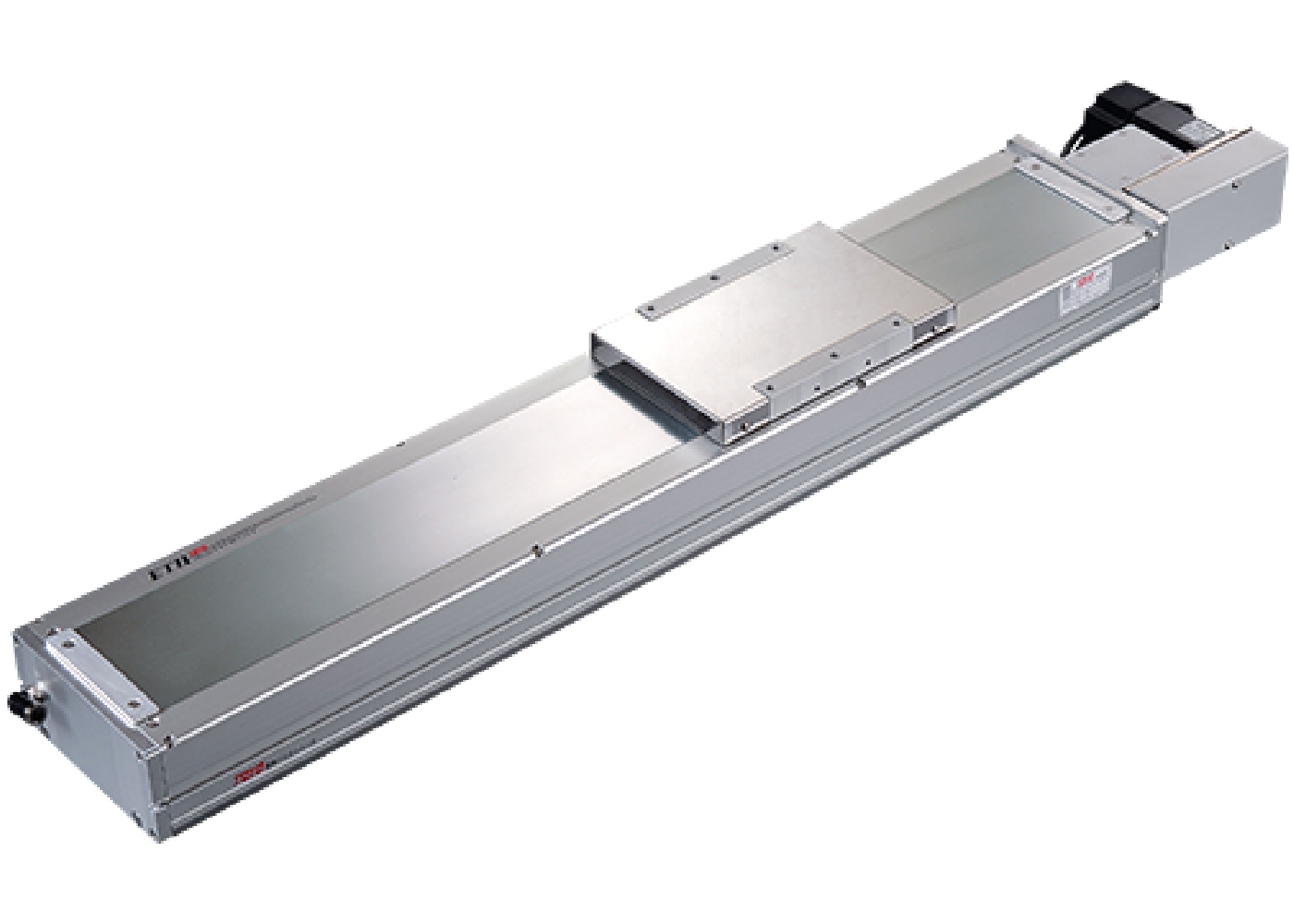

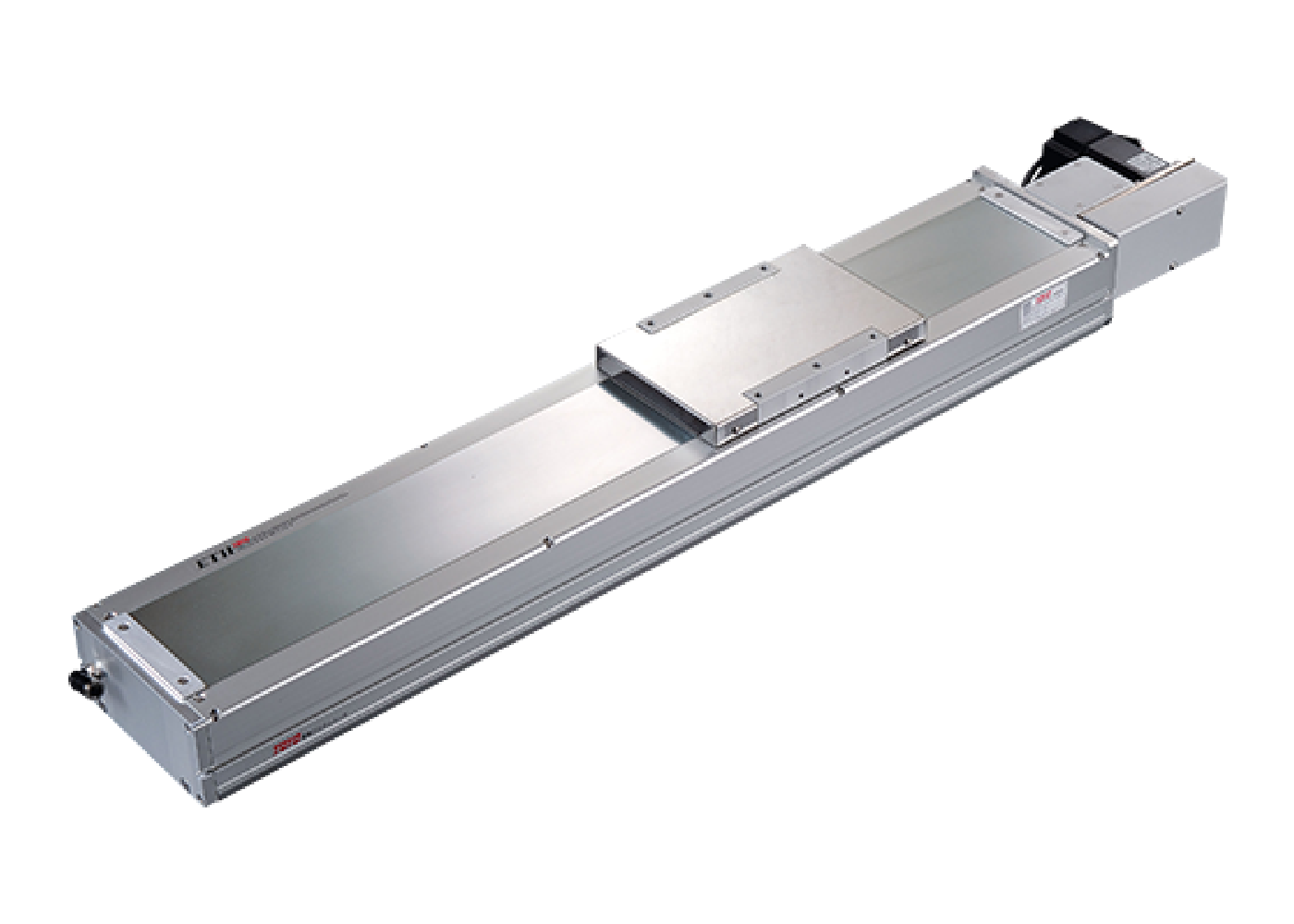

| Product Size (W x H mm) | 135 x 93 | 170 x 108 | 220 x 134 |
| Repeatability (µm) | ±40 | ±40 | ±40 |
| Maximum Payload (N) | 11,991 | 18,755 | 25,876 |
| Maximum Thrust (N) | Coming Soon | Coming Soon | Coming Soon |
| Maximum Travel (mm) | 3,050 | 4,050 | 3,400 |
| Maximum Speed (mm/s) | 2,400 | 2,400 | 2,400 |
| Maximum Acceleration (G) | 1 | 1 | 1 |
1 Maximum payload and thrust are specified based on an L10 life rating. To calculate life for your application, please contact us.
| Specification | 50 (mm) |
100 (mm) |
150 (mm) |
200 (mm) |
250 (mm) |
300 (mm) |
350 (mm) |
400 (mm) |
450 (mm) |
500 (mm) |
550 (mm) |
600 (mm) |
650 (mm) |
700 (mm) |
750 (mm) |
800 (mm) |
850 (mm) |
900 (mm) |
950 (mm) |
1000 (mm) |
1050 (mm) |
1100 (mm) |
1150 (mm) |
1200 (mm) |
1250 (mm) |
1300 (mm) |
1350 (mm) |
1400 (mm) |
1450 (mm) |
1500 (mm) |
1550 (mm) |
1600 (mm) |
1650 (mm) |
1700 (mm) |
1750 (mm) |
1800 (mm) |
1850 (mm) |
1900 (mm) |
1950 (mm) |
2000 (mm) |
2050 (mm) |
2100 (mm) |
2150 (mm) |
2200 (mm) |
2250 (mm) |
2300 (mm) |
2350 (mm) |
2400 (mm) |
2450 (mm) |
2500 (mm) |
2550 (mm) |
2600 (mm) |
2650 (mm) |
2700 (mm) |
2750 (mm) |
2800 (mm) |
2850 (mm) |
2900 (mm) |
2950 (mm) |
3000 (mm) |
3050 (mm) |
3100 (mm) |
3150 (mm) |
3200 (mm) |
3250 (mm) |
3300 (mm) |
3350 (mm) |
3400 (mm) |
3450 (mm) |
3500 (mm) |
3550 (mm) |
3600 (mm) |
3650 (mm) |
3700 (mm) |
3750 (mm) |
3800 (mm) |
3850 (mm) |
3900 (mm) |
3950 (mm) |
4000 (mm) |
4050 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ECB14 Weight (kg) | 11.20 | 11.76 | 12.32 | 12.88 | 13.45 | 14.01 | 14.57 | 15.13 | 15.69 | 16.25 | 16.82 | 17.38 | 17.94 | 18.50 | 19.06 | 19.62 | 20.19 | 20.75 | 21.31 | 21.87 | 22.43 | 23.00 | 23.56 | 24.12 | 24.68 | 25.24 | 25.80 | 26.37 | 26.93 | 27.49 | 28.05 | 28.61 | 29.17 | 29.74 | 30.30 | 30.86 | 31.42 | 31.98 | 32.54 | 33.11 | 33.67 | 34.23 | 34.79 | 35.35 | 35.91 | 36.48 | 37.04 | 37.60 | 38.16 | 38.72 | 39.28 | 39.84 | 40.41 | 40.97 | 41.53 | 42.09 | 42.65 | 43.22 | 43.78 | 44.34 | 44.90 | Not Available | |||||||||||||||||||
| ECB17 Weight (kg) | 13.20 | 13.82 | 14.44 | 15.06 | 15.68 | 16.30 | 16.92 | 17.54 | 18.16 | 18.78 | 19.40 | 20.02 | 20.64 | 21.26 | 21.88 | 22.50 | 23.12 | 23.74 | 24.36 | 24.98 | 25.60 | 26.22 | 26.84 | 27.46 | 28.08 | 28.70 | 29.32 | 29.94 | 30.56 | 31.18 | 31.80 | 32.42 | 33.04 | 33.66 | 34.28 | 34.90 | 35.52 | 36.14 | 36.76 | 37.38 | 38.00 | 38.62 | 39.24 | 39.86 | 40.48 | 41.10 | 41.72 | 42.34 | 42.96 | 43.58 | 44.20 | 44.82 | 45.44 | 46.06 | 46.68 | 47.30 | 47.92 | 48.54 | 49.16 | 49.78 | 50.40 | 51.02 | 51.64 | 52.26 | 52.88 | 53.50 | 54.12 | 54.74 | 55.36 | 55.98 | 56.60 | 57.22 | 57.84 | 58.46 | 59.08 | 59.70 | 60.32 | 60.94 | 61.56 | 62.18 | 62.80 |
| ECB22 Weight (kg) | 31.80 | 33.00 | 34.20 | 35.40 | 36.60 | 37.80 | 39.00 | 40.20 | 41.40 | 42.60 | 43.80 | 45.00 | 46.20 | 47.40 | 48.60 | 49.80 | 51.00 | 52.20 | 53.40 | 54.60 | 55.80 | 57.00 | 58.20 | 59.40 | 60.60 | 61.80 | 63.00 | 64.20 | 65.40 | 66.60 | 67.80 | 69.00 | 70.20 | 71.40 | 72.60 | 73.80 | 75.00 | 76.20 | 77.40 | 78.60 | 79.80 | 81.00 | 82.20 | 83.40 | 84.60 | 85.80 | 87.00 | 88.20 | 89.40 | 90.60 | 91.80 | 93.00 | 94.20 | 95.40 | 96.60 | 97.80 | 99.00 | 100.20 | 101.40 | 102.60 | 103.80 | 105.00 | 106.20 | 107.40 | 108.60 | 109.80 | 111.00 | 112.20 | Not Available | ||||||||||||
To ensure the highest level of design accuracy and reduce your engineering lead times, TOYO Robotics Americas provides a comprehensive library of native CAD models. Hosted through our CAD Community Portal, these models are not generic placeholders; they are highly detailed, configurable files designed to drop directly into your assembly.

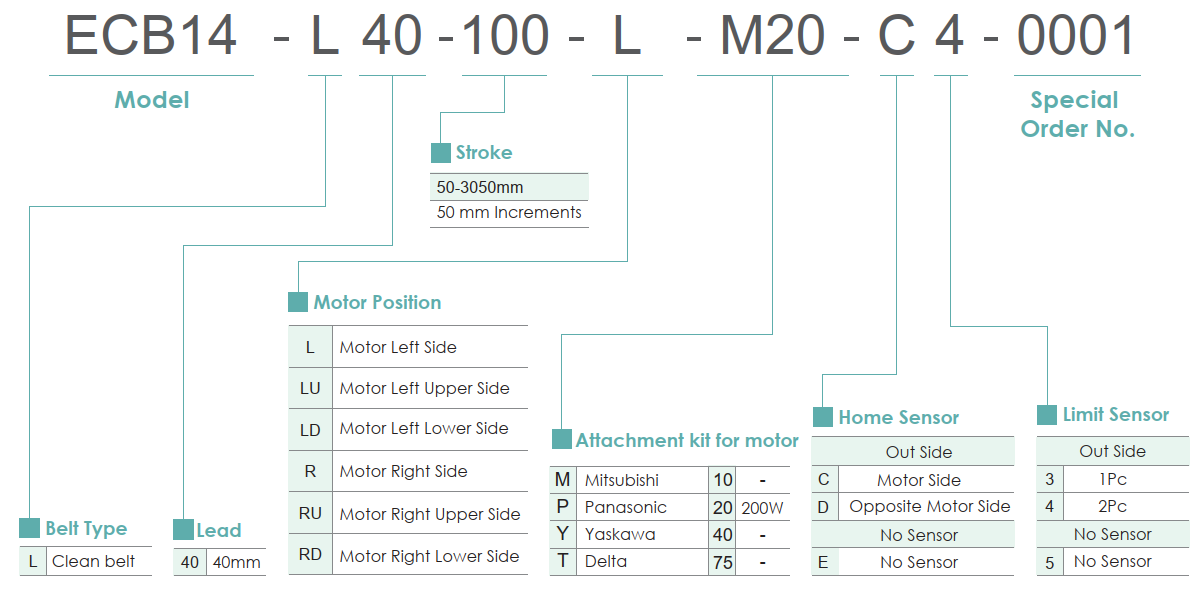

Select a size to view the specific ordering code configuration:
Contact our application engineers to generate your exact part number or for complex multi-axis configurations.
Request Configuration Support
