High-Precision Rod-Type Actuators with Factory-Integrated Motors
High-Precision Rod-Type Actuators with Factory-Integrated Motors Download native CAD models and request a technical quote for the CY Series series today.
The CY Series merges the industrial-strength mechanics of the proven Y43 and Y62 rod-type actuators with factory-integrated motor technology. Designed for engineers seeking a "Plug-and-Play" solution for high-precision pressing and positioning, the CY Series eliminates the complexity of external motor mounting and alignment. By providing ±0.01 mm repeatability and thrust capacities up to 1,405N, the CY series serves as a superior, energy-efficient replacement for pneumatic cylinders in automated assembly and high-speed material handling.
Features a factory-mounted motor and drive system, eliminating the need for external motor sizing, mounting brackets, and coupling alignment.
Delivers ±0.01 mm repeatability and programmable multi-point positioning, providing a reliable and energy-efficient alternative to traditional pneumatic cylinders.
Consolidating the motor and rod actuator into a single unit reduces machine cabinet space and simplifies cabling, accelerating system commissioning.
Built on the high-rigidity Y-series chassis, the CY series ensures long-term stability and high moment-load capacity for demanding industrial pressing and carrying.
Compare the CY Series with similar high-performance series in our portfolio.

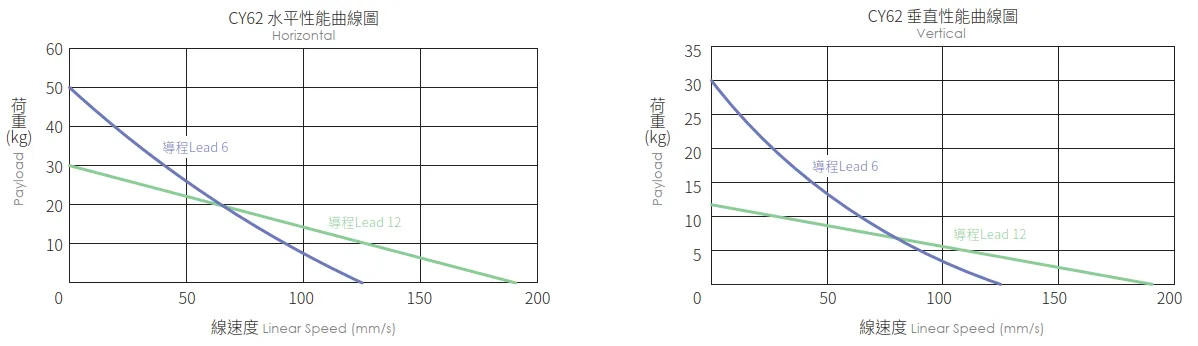

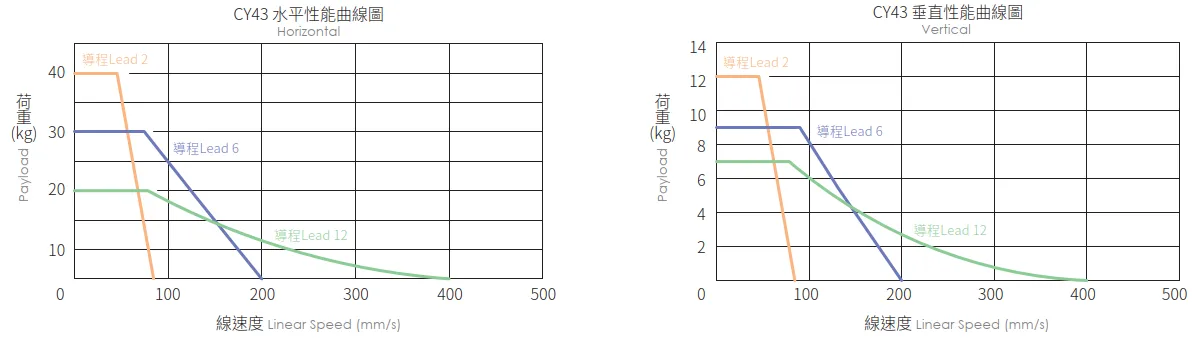

| Specification | CY43 | CY62 |
|---|---|---|
| Product Size (W x H mm) | 43 x 43 | 62 x 62 |
| Repeatability (mm) | ±0.01 | ±0.01 |
| Maximum Payload (kg)(1) | 40 | 110 |
| Maximum Thrust (N)(1) | 408 | 1405 |
| Maximum Travel (mm) | 500 | 700 |
| Maximum Speed (mm/s) | 720 | 720 |
| Maximum Acceleration (G) | 1 | 1 |
| Operating Temperature (°C)(2) | 0 - 40 | 0 - 40 |
1 Maximum payload and thrust are specified based on an L10 life rating. To calculate life for your application, please contact us.
2 For extreme temperatures outside of this range, special greases are required.
| Specification | 50 (mm) |
100 (mm) |
150 (mm) |
200 (mm) |
250 (mm) |
300 (mm) |
350 (mm) |
400 (mm) |
450 (mm) |
500 (mm) |
550 (mm) |
600 (mm) |
650 (mm) |
700 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CY43 Weight (kg) | 1.32 | 1.49 | 1.66 | 1.83 | 2.00 | 2.17 | 2.34 | 2.51 | 2.68 | 2.85 | Not Available | |||
| CY43D Weight (kg) | 1.90 | 2.16 | 2.42 | 2.68 | 2.94 | 3.20 | 3.45 | 3.71 | 3.97 | 4.23 | Not Available | |||
| CY43L Weight (kg) | 1.64 | 1.90 | 2.16 | 2.42 | 2.68 | 2.94 | 3.20 | 3.46 | 3.72 | 3.98 | Not Available | |||
| CY62 Weight (kg) | 2.60 | 3.05 | 3.49 | 3.94 | 4.38 | 4.83 | 5.28 | 5.72 | 6.17 | 6.62 | 7.06 | 7.51 | 7.95 | 8.40 |
| CY62D Weight (kg) | 3.90 | 4.45 | 5.01 | 5.56 | 6.12 | 6.66 | 7.22 | 7.76 | 8.32 | 8.86 | 9.42 | 9.97 | 10.53 | 11.10 |
| CY62L Weight (kg) | 2.60 | 3.00 | 3.40 | 3.80 | 4.20 | 4.60 | 5.00 | 5.40 | 5.80 | 6.20 | 6.60 | 7.00 | 7.40 | 7.80 |
To ensure the highest level of design accuracy and reduce your engineering lead times, TOYO Robotics Americas provides a comprehensive library of native CAD models. Hosted through our CAD Community Portal, these models are not generic placeholders; they are highly detailed, configurable files designed to drop directly into your assembly.

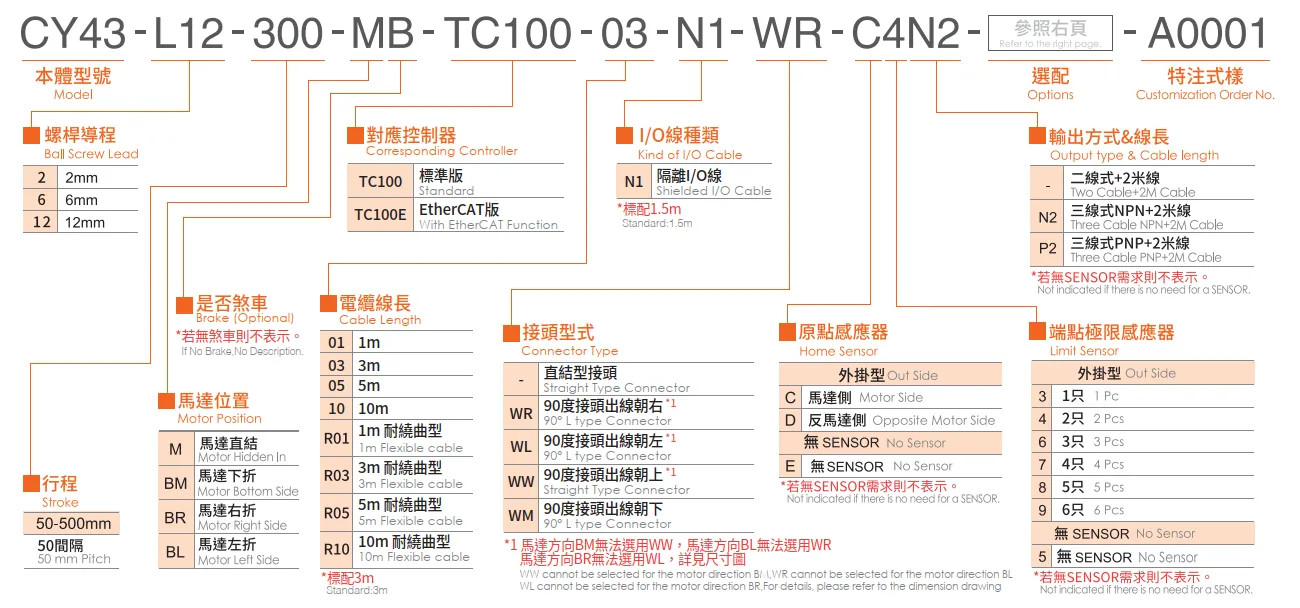

Select a size to view the specific ordering code configuration:
Contact our application engineers to generate your exact part number or for complex multi-axis configurations.
Request Configuration Support
