Master Precision Automation with TOYO’s Custom Multi-Axis Motion Systems

In today’s rapidly evolving industrial landscape, standard automation components aren't always enough to meet the rigorous demands of next-generation manufacturing. Whether you are scaling up semiconductor fabrication, innovating in biotechnology, or optimizing flat-panel display assembly, achieving sub-micron accuracy requires more than off-the-shelf parts. It requires fully integrated, custom motion systems.

At TOYO Robotics, we bridge the gap between individual motion control components—such as advanced linear motors, precision ball screws, and actuators—and comprehensive, ready-to-deploy automated sub-systems. By leveraging our deep engineering heritage and cost-effective manufacturing capabilities, we deliver engineered-to-order multi-axis motion systems that provide unparalleled accuracy, speed, and reliability.

Here is an inside look at how TOYO’s system integration capabilities are redefining what is possible in precision automation.

The TOYO Advantage: A Comprehensive Overview of Custom Motion Systems

Building a high-performance automation cell requires synchronizing multiple moving parts with absolute precision. TOYO’s approach to multi-axis motion systems is rooted in providing end-to-end integration. We do not just supply the hardware; our engineering teams partner with you from the initial CAD design and component selection through rapid prototyping and final mass production.

Our advanced sub-system motion control platforms are built around state-of-the-art drive technologies, including linear motor mechanical bearings and ultra-precise linear motor air bearings. By utilizing frictionless, non-contact air bearing structures and pre-loaded internal designs, our systems eliminate the need for traditional lubrication. This dramatically increases the lifespan of the system, reduces maintenance downtime, and makes them exceptionally suited for stringent ISO cleanroom environments.

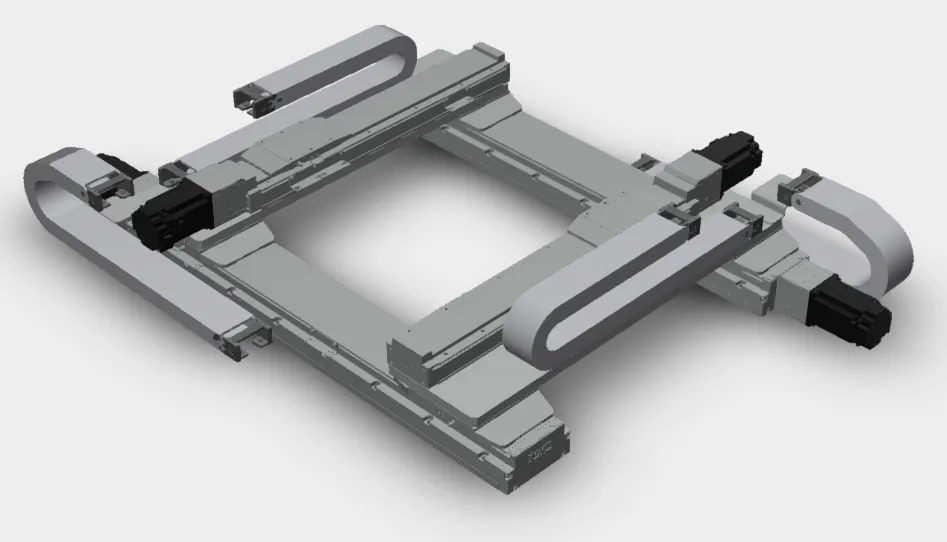

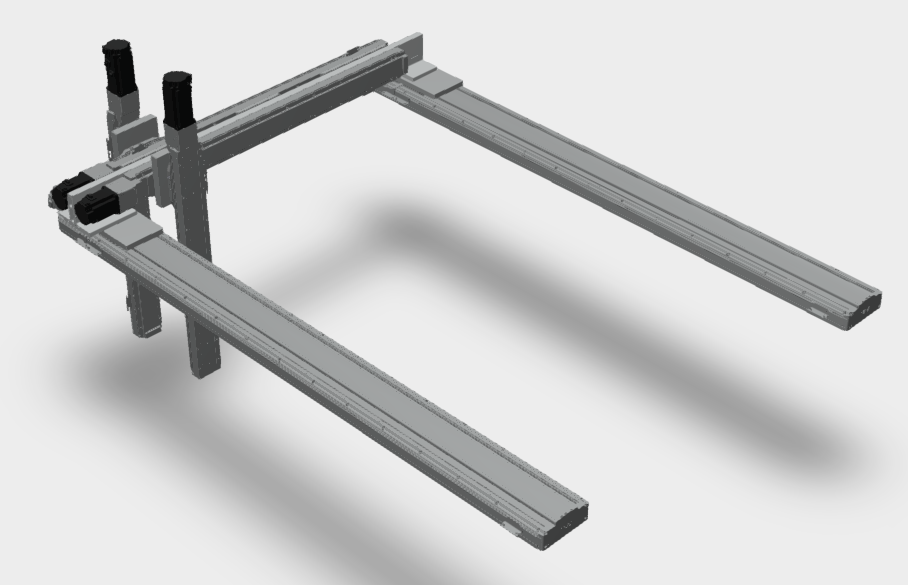

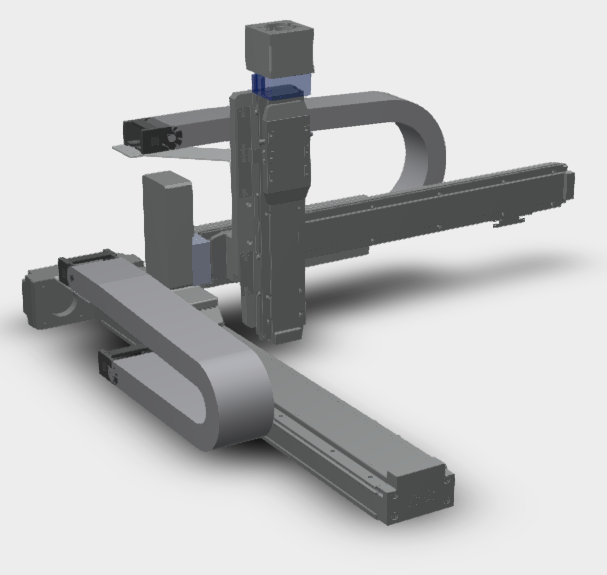

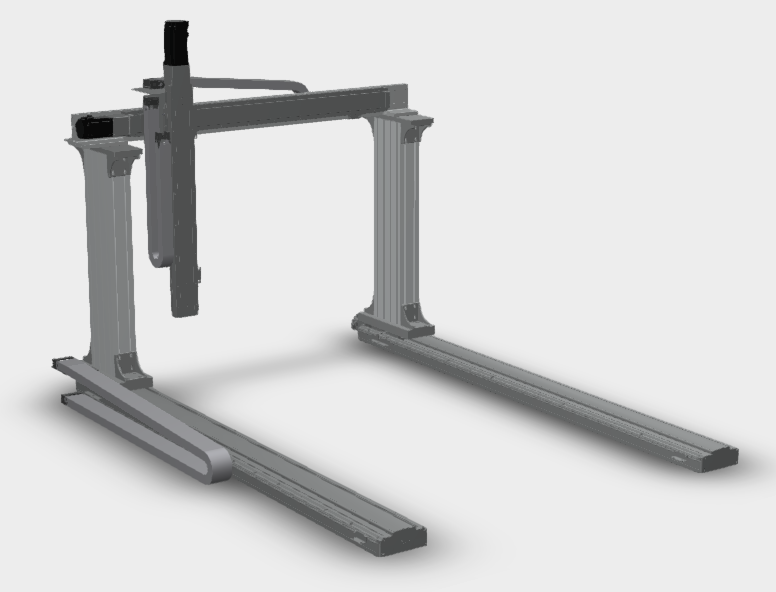

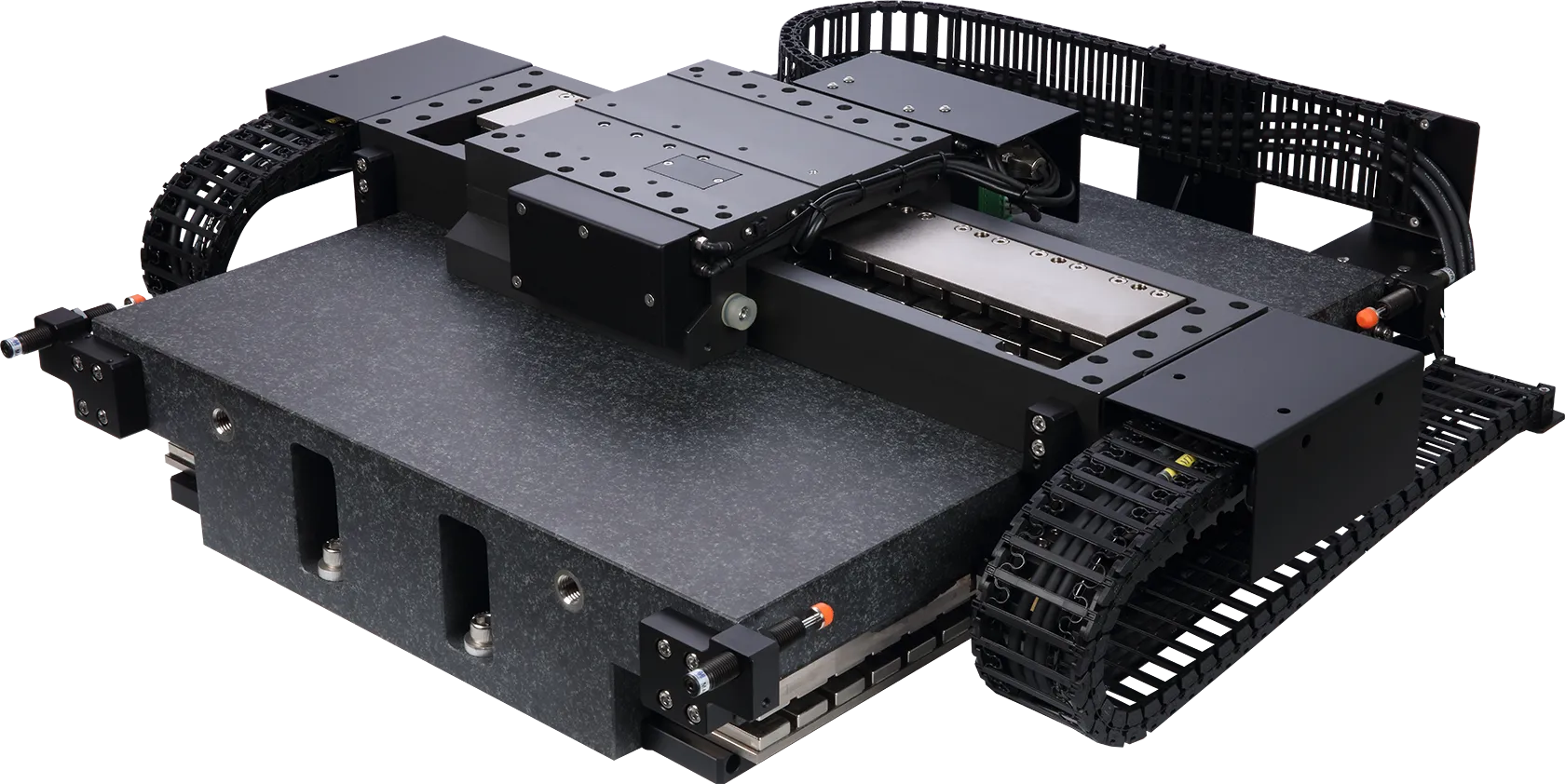

From compact XY Cartesian stages featuring low-center-of-gravity designs and ironless motors to massive XYZ dual-drive gantry platforms capable of managing multi-mover synchronized tasks over large operational areas, TOYO designs systems that fit your exact mechanical and environmental footprints.

Key Benefits of TOYO’s Multi-Axis Solutions

When you integrate a TOYO custom motion system into your production line, you unlock several critical operational advantages:

• Turnkey System Integration: We handle the complex engineering of pairing individual direct-drive components, precision lift stages, and hollow rotary tables into a single, cohesive multi-axis unit.
• Ultra-High Precision & Stability: Utilizing advanced air-bearing technology and XY coplanar designs, our platforms deliver superior speed stability and minimal speed ripple, even at incredibly low velocities.
• Zero-Maintenance Cleanroom Compatibility: Frictionless linear motor designs eliminate particulate generation from mechanical wear and lubrication, making our custom motion systems perfect for Class 1 semiconductor FAB environments.

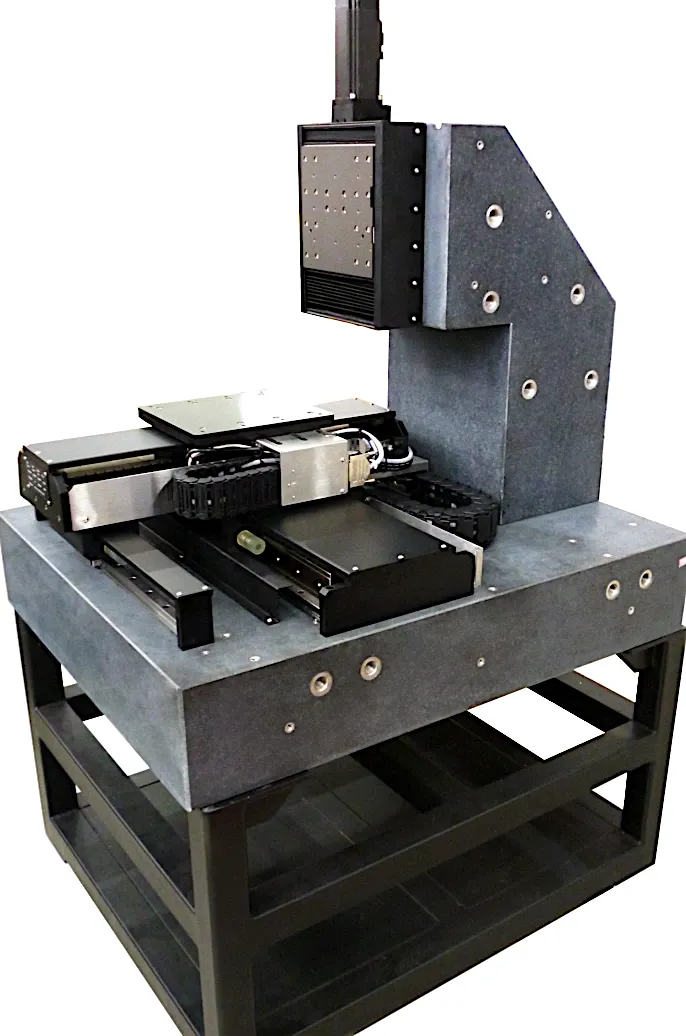

• Flexible & Scalable Architectures: Whether you require a lightweight, dual-drive XYZR gantry for wide-area tasks or a high-rigidity granite base structure for vision inspection, our OEM/ODM partnership models ensure your system is scaled perfectly to your application.
• Cost-Effective Localization: TOYO combines elite motion control technology with highly efficient, localized manufacturing capabilities, delivering top-tier performance at an industry-leading price-to-performance ratio.

Target Applications for Custom Motion Control

Our engineered multi-axis systems are the driving force behind some of the most demanding industries in the world. Target applications include:

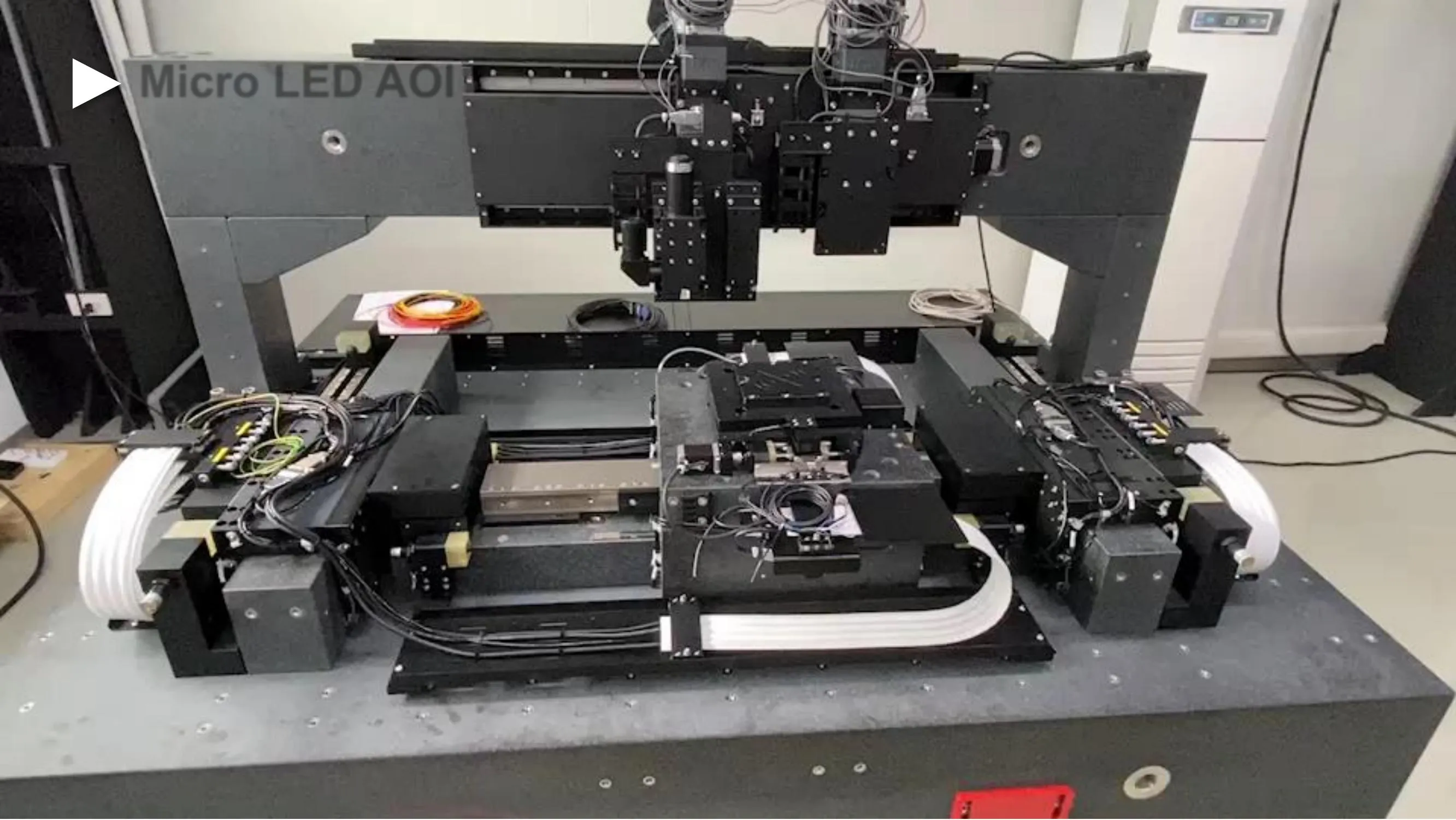

• Semiconductor Manufacturing: High-precision XY coplanar stages and air-bearing gantries are ideal for wafer transport (FOUP handling), photolithography exposure equipment, and automated optical inspection (AOI) where vibration isolation is critical.
• Flat Panel Display (FPD) Assembly: Large-scale, multi-mover dual-drive gantries provide the expansive reach and synchronized control necessary for handling, coating, and inspecting oversized glass substrates.
• PCB & Electronics Manufacturing: High-speed XYZ Cartesian and diving-style platforms offer the rapid settling times and rigid stability required for high-throughput PCB drilling, soldering, and micro-assembly tasks.
• Biotechnology & Medical Devices: Precision micro-linear motor stages and hollow positioning modules deliver the delicate, exact movements required for automated liquid handling, genomic sequencing, and medical device manufacturing.
• Advanced Industrial Automation: Desktop robotic platforms, automated dispensing systems, and heavy-duty transit axes optimize workflow across a wide variety of secondary packaging and assembly lines.

Elevate Your Manufacturing with TOYO

Your production goals shouldn't be limited by standard catalogs. When your engineering requires exact specifications, unparalleled precision, and seamless multi-axis integration, TOYO is your dedicated automation partner.

Ready to design your next breakthrough? Contact our engineering team today to discuss your customized mechanical configurations and discover how TOYO's custom motion systems can accelerate your operational success.
