Linear Bearing Technical Guide

At TOYO Robotics, we are committed to providing the highest level of technical transparency and engineering detail. This guide is a complete engineering reference for selecting, calculating, installing, and maintaining linear bearing guidance systems in automated machinery.

What is a linear bearing and how does it differ from a rotary bearing?

A linear bearing is a machine element that enables low-friction, guided motion along a straight (or sometimes curved) path. Unlike rotary bearings, where the supported member rotates around a fixed axis, linear bearings support axial translation; the carriage or moving member travels along a rail, shaft, or way.

Functionally, a linear bearing must do three things simultaneously: support loads applied perpendicular to the motion axis, resist moments about all three rotational axes, and allow nearly frictionless travel along the linear axis. All other degrees of freedom are constrained.

What industries and applications use linear bearings?

Linear bearings appear anywhere precise, repeatable straight-line motion is needed:

• Machine tools: CNC axes, grinders, lathes, machining centers
• Industrial automation: Pick-and-place robots, gantries, palletizers
• Medical devices: CT/MRI scanner beds, surgical robots, infusion pumps
• Semiconductor manufacturing: Wafer handling, lithography stages
• 3D printing: X/Y/Z axes in FDM and SLA machines
• Packaging machinery: Filling stations, labeling, conveying
• Aerospace: Actuators, cargo-handling systems, test fixtures
• Food & Beverage: Washdown environments requiring stainless or polymer bearings

What are the main types of linear bearings?

The six primary categories include:

Profile rail vs. round rail — when does each win?

When should I choose a polymer sliding bearing over a recirculating ball guide?

Work through this checklist. If most answers favor the right column, a polymer system is likely the correct choice:

Friction (the typical argument against sliding bearings) is rarely the only design factor. A ball bearing operating in contaminated conditions can have higher effective friction than a clean polymer liner. Do not default to rolling elements without this analysis.

What is the difference between recirculating and non-recirculating linear bearings?

• Non-recirculating designs sandwich rolling elements between paired rails across their full lengths. Stroke is fixed by the number of elements, making long strokes impractical. They can achieve very high accuracy; crossed-roller designs are non-recirculating.

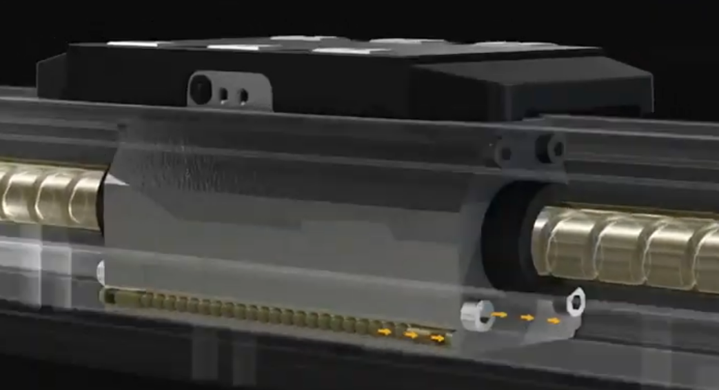

• Recirculating designs have rolling elements that travel along the load-bearing face, then loop back through an internal return channel, creating a continuous circuit. Travel distance is theoretically unlimited. Most profile-rail carriages use 2 or 4 recirculating ball circuits. The trade-off is a more complex carriage and slightly more friction at the return bend.

What information do I need before selecting a linear bearing?

Collect these parameters before opening any catalog:

• Load magnitude and direction: radial, axial, and moment loads (Mx, My, Mz) at both static and peak conditions
• Required travel life: distance (km) or cycle count
• Stroke length: determines rail length; add safety margin
• Speed and acceleration: max and RMS values
• Accuracy class required: positioning repeatability, running parallelism
• Operating environment: temperature range, contamination, washdown, vacuum
• Lubrication constraints: re-lubrication interval, maintenance-free requirement
• Mounting surface capability: flatness tolerance achievable
• Size and weight envelope
• Regulatory requirements — RoHS, FDA, ATEX, food-grade

Can I mix bearing brands on the same rail?

• For profile rail: Major brands conform to shared dimensional standards within each size class; mounting hole patterns and carriage envelopes are largely compatible. Functional mixing is possible but not recommended for precision work, as load ratings, preload class, and running fit may differ between matched and cross-brand pairs.
• For round rail: Do not mix shaft brands with bearing brands. Shaft hardness specifications and diameter tolerances differ enough between manufacturers to cause either binding or excessive play, leading to early failure.

How many carriages and rails do I need?

The classic rule: two parallel rails, with the carriage span set to resist the largest expected moment load. Beyond two rails, you enter a statically indeterminate system that distributes load unevenly and requires extraordinarily precise alignment — avoid it unless structural analysis confirms benefit.

Common configurations:

• 1 rail, 1 carriage: Light loads, very compact geometry, moment capacity limited
• 1 rail, 2 carriages: Increases moment capacity in the direction of travel
• 2 rails, 1 carriage each: Standard for most machine axes; controls all 6 DOF

• 2 rails, 2 carriages each: Highest moment capacity; used in heavy-duty machine tools

• Note: Long carriages increase load capacity by 20–60% versus standard-length carriages for the same rail size; this is often a better solution than adding a third rail.

What is the difference between static and dynamic load capacity?

• Static load capacity (C₀) is the load that causes permanent deformation of the rolling element and raceway equal to 0.0001 × rolling element diameter (per ISO 14728-2). It applies when the bearing is stationary or moving very slowly. Exceeding C₀ produces brinelling, which creates permanent dents in the raceway that cause noise and vibration under motion.
• Dynamic load capacity (C) is the constant load under which 90% of a population of bearings will survive a defined travel distance (50 km or 100 km, depending on manufacturer) without fatigue failure. It is the primary input to life calculations.

How do I account for moment loads in my load calculation?

Moment loads (M_x, M_y, M_z) create unequal ball loading and reduce the effective life significantly. Manufacturers provide moment load ratings (M_A, M_B, M_C) and correction factors. The equivalent load P_eq combines all force and moment components:

Equivalent load combining radial force and moments:
P_eq = F_z + k_A * (M_A / h_A) + k_B * (M_B / h_B)

Where:
F_z   = applied radial force [N]
M_A/B = applied moments [N-mm]
h_A/B = moment arm (carriage geometry) [mm]
k_A/B = manufacturer correction factor (catalog value)

Use P_eq in place of P in the L₁₀ life equation. For systems with multiple load cases at varying speeds, compute the RMS equivalent load weighted by travel distance.

Does load direction matter for round-rail bearings?

Yes — significantly. Round-rail ball bushing bearings have a polar load capacity that varies with the angle at which the load is applied relative to the bearing orientation. A load applied directly downward (top dead center = 0°) uses the full rated capacity. A load applied at an angle uses a reduced capacity determined by a polar correction factor K_θ.

Always consult the polar load diagram in the manufacturer's catalog for your specific product and determine the correct K_θ direction factor. Multiply the catalog dynamic load capacity by K_θ to get the corrected capacity at your load angle.

Note: Profile rail bearings are much less sensitive to load direction because their gothic-arch or circular-arc groove geometry distributes load across multiple contact points simultaneously.

How do I calculate expected bearing life?

The Lundberg-Palmgren model (1947) is the basis for all catalog life calculations:

L10 nominal life for linear ball bearings:
L10 = L_ref * (C / P)^3          // for ball bearings (exponent = 3)
L10 = L_ref * (C / P)^(10/3)     // for roller bearings (exponent = 10/3)

Where:
L10   = nominal life [km] at 90% survival probability
L_ref = reference distance from catalog (50 km or 100 km)
C     = dynamic load rating from catalog [N]
P     = equivalent applied load [N]

Life in hours:
L10h = (L10 * 10^3) / (v_avg * 60)   // v_avg in mm/s

How sensitive is bearing life to load changes?

Extremely sensitive; life scales with the cube of the load ratio (for ball bearings). Doubling the applied load reduces life to 1/8th. This is the most important design insight in bearing engineering:

Life ratio when load changes from P1 to P2:
L2 / L1 = (P1 / P2)^3

Example (Load doubled: P2 = 2 * P1):
L2 / L1 = (1 / 2)^3 = 0.125   // 87.5% life reduction

This is why undersized bearings fail catastrophically while oversized bearings often outlast the machine. When in doubt, go one size up.

How do I calculate life when the load and speed vary across the duty cycle?

Use the root-mean-cube (RMC) equivalent load across all operating segments weighted by travel distance:

RMC equivalent load for variable duty cycle:
P_eq = ( (P1^3 * L1 + P2^3 * L2 + ... + Pn^3 * Ln) / (L1 + L2 + ... + Ln) )^(1/3)

Where P_i = load in segment i, and L_i = travel distance in segment i [km].

Then use P_eq in the standard L₁₀ formula. For applications with distinct operating modes (e.g., unloaded return stroke vs. loaded cutting stroke), this weighted approach is essential. Ignoring the loaded segment and using an average load will dramatically overestimate bearing life.

What is preload and why does it matter?

Preload is a negative internal clearance, representing an intentional interference fit between balls/rollers and raceways that removes all play from the system before any external load is applied. It is achieved in profile rails by using slightly oversized rolling elements at the factory.

Benefits of correct preload:

• Eliminates micro-slip and backlash — balls roll rather than slide
• Increases stiffness and reduces deflection under load
• Improves positional accuracy and repeatability
• Distributes load across more balls simultaneously

What preload class should I specify?

For most industrial applications, Z1 (medium preload) is the correct starting point. Move to Z2 only when stiffness analysis shows Z1 deflection is unacceptable.

How do fits and tolerances affect internal clearance?

Interference fits on the shaft or housing bore compress the bearing rings and reduce internal clearance. Failing to account for this reduction is one of the most common causes of premature bearing failure:

Effective operating clearance:
δ_eff = δ_0 - δ_fit - δ_temp

Where:
δ_0    = initial bearing clearance (catalog value)
δ_fit  = clearance reduction due to interference fit
δ_temp = clearance reduction due to temperature differential

If δ_eff goes negative, the bearing is preloaded by installation — even if a clearance fit was intended. A C2 bearing (reduced initial clearance) is especially vulnerable to this: the same shaft interference that works fine with a CN bearing can preload a C2 into rapid failure.

How do I calculate shaft deflection for a round-rail system?

For a simply supported shaft under a central point load (worst case for a traversing carriage):

Mid-span deflection:
δ = (F * L^3) / (48 * E * I)

Where:
E = 210,000 N/mm² (steel)
I = π * d^4 / 64   // second moment of area [mm⁴]
F = applied force [N]
L = shaft span [mm]
d = shaft diameter [mm]

Rule of thumb: keep span-to-diameter ratio <= 30:1 for light loads, <= 20:1 for precision.

Always size for the worst-case position (carriage at mid-span), even if the application doesn't traverse the full length.

How do I improve system stiffness if deflection is too high?

In order of typical impact and cost:

How do I calculate the drag force required to move a linear bearing system?

Total drag force:
F_drag = μ * F_total + F_seal + F_preload

Where:
μ         = coefficient of friction (see table below)
F_total   = total normal load on the bearing [N]
F_seal    = seal drag (catalog value) [N]
F_preload = preload-induced drag (catalog value, or ~2-5% of C for Z1)

How does stick-slip affect a linear bearing system and how do I prevent it?

Stick-slip occurs when static friction (the force to start motion) significantly exceeds kinetic friction (the force to maintain motion). In plain sliding bearings it produces jerky, irregular motion; this is especially problematic in position-controlled systems where the controller interprets the sudden movement as an error signal.

Rolling element bearings essentially eliminate stick-slip: static and dynamic friction coefficients are nearly equal because rolling elements begin rotating rather than overcoming a static contact interface.

If you're experiencing stick-slip in a rolling-element system, the root cause is usually contamination causing boundary friction, inadequate lubrication, or too much preload generating plastic deformation at contact points.

What shaft diameter tolerance, surface finish, and hardness do I need?

Should I fix both ends of the shaft rigidly?

No; always use a fixed/floating arrangement. Fix one end against axial movement; allow the other to slide freely in its support to accommodate thermal expansion.

Thermal expansion calculation:
ΔL = α * L * ΔT

Where:
α  = 12 * 10^-6 /°C (steel)
L  = shaft length [mm]
ΔT = temperature change [°C]

Example (600 mm shaft, ΔT = 20°C):
ΔL = 12e-6 * 600 * 20 = 0.144 mm
If both ends are clamped, the shaft will bow, destroying accuracy and life.

What are the most critical installation steps for profile rail guides?

What are the mounting surface requirements for profile rail?

Note: For rail splices on axes longer than 4 m: the joint gap must be ≤ 0.01 mm. Use manufacturer-supplied precision splice joints; field-ground joints rarely meet this requirement.

What lubricant should I use for linear bearings?

How much grease should I apply when relubing?

Over-lubrication is as damaging as under-lubrication. Excess grease in a bearing generates heat and causes churning losses, breaking down the lubricant and producing higher operating temperatures that accelerate wear and seal degradation.

The general rule: fill the grease nipple until a small amount of fresh grease appears at the carriage seals — then stop. Most profile rail carriages have a defined grease capacity in the catalog (typically 0.5–5 cm³ depending on size). Use a calibrated grease gun, not an air-powered one that can overpressurize the carriage.

For systems with automatic lubrication units, set the delivery volume to match the manufacturer's specification per unit of travel (typically expressed as mm³ per meter of stroke).

What is the operating temperature range of standard linear bearings?

How do I protect bearings in contaminated or wet environments?

Protection strategy depends on contamination severity:

• Light dust: Standard lip seals (NBR) on carriage ends, nitrile rubber contact seals on g6 shafts (adequate for most industrial environments).
• Heavy chips, coolant: Telescopic steel covers over the rail, bellows covers, or under-mounted rails (chips fall away). Increase lubrication frequency by 2–3×.
• Washdown (food, pharma): 316 stainless steel rail and carriage, PTFE seals, NSF-approved food-grade grease, angled mounting to drain pooling water.
• Submersion or high pressure wash: IP67/IP68-rated carriages, external positive-pressure purge, or switch to corrosion-resistant polymer sliding bearings.
• Cleanroom: Stainless rail, low-outgassing PFPE grease, sealed carriages with no external vents.

Note: Contamination is the second leading cause of premature bearing failure after incorrect sizing. A single metal chip in the recirculation circuit causes accelerating damage with each pass.

Quick diagnostics: what does the symptom tell me?

My system has insufficient repeatability — what's the fix?

Repeatability failures have three root causes — work through them in order:

What are the primary failure modes and their visual signatures?

What does a proper linear bearing maintenance program look like?

What do the accuracy class designations mean (N, H, P, SP, UP)?

Accuracy class costs increase steeply (UP class rails can cost 5–10× more than N class of the same size). Only specify precision beyond what the application requires after a proper tolerance stack-up analysis.

What sealing options are available and which do I choose?

What material and coating options exist for corrosive environments?

What standards govern linear bearing specifications and life calculations?

Note: All TOYO-sourced rolling element bearings are RoHS compliant. Plain bearings with lead-infused lubrication rings are clearly identified in their chemical compliance datasheets.

What bearing type is recommended for a CNC machining center axis?

Profile rail recirculating ball or roller guide, precision (P) or super-precision (SP) accuracy class, medium to heavy preload (Z1–Z2), with stainless steel wiper seals and bellows covers.

Two rails per axis, two carriages per rail is standard. Use long carriages if moment loads are high. Specify H or P accuracy class mounting surface (ground steel base or granite reference). Oil mist or centralized grease lubrication; avoid over-greasing which fouls the work area.

What bearing type is correct for a food processing washdown environment?

Two primary options depending on load and precision requirements:

• High-load, moderate precision: 316L stainless steel profile rail with 440C stainless carriage, IP67 sealing, NSF H1 food-grade grease. Mount rail at an angle to promote drainage.
• Light-load, maintenance-free: FDA-compliant polymer sliding bearings in acetal or PTFE liner: completely lubrication-free, washdown compatible, and resistant to most cleaning chemicals (widely used in food packaging for exactly this reason).

Avoid standard bearing steel in any regular washdown application — the cost of early replacement far exceeds the premium for a corrosion-resistant system.

What bearing type is best for a 3D printer or desktop motion system?

For most FDM 3D printers: LM_UU series round-rail ball bushings on hardened steel shafts (standard 8 mm or 12 mm diameter). Low cost, adequate for the loads involved, and widely available. Use LM_LUU (long type) on cantilever axes where moment loads are higher.

For higher precision (SLA, DLP, high-end FDM): consider moving to miniature profile rail (sizes 7–12 mm). The improvement in positional accuracy and stiffness is substantial, and cost at this size is reasonable.

What bearing type suits a semiconductor wafer-handling stage?

Air bearings or ultra-precision crossed-roller guides (UP accuracy class) are the primary options for semiconductor-grade motion.

• Air bearings: near-zero friction, zero mechanical contact, sub-micron repeatability. They require a clean, dry compressed air supply (typically <0.1 µm particle filtration) and are incompatible with environments that cannot maintain air supply reliability.
• Crossed-roller: no external air needed, excellent stiffness, sub-5 µm running accuracy. Limited travel stroke compared to recirculating designs. Often chosen for scanner heads and alignment stages within a semiconductor tool.
